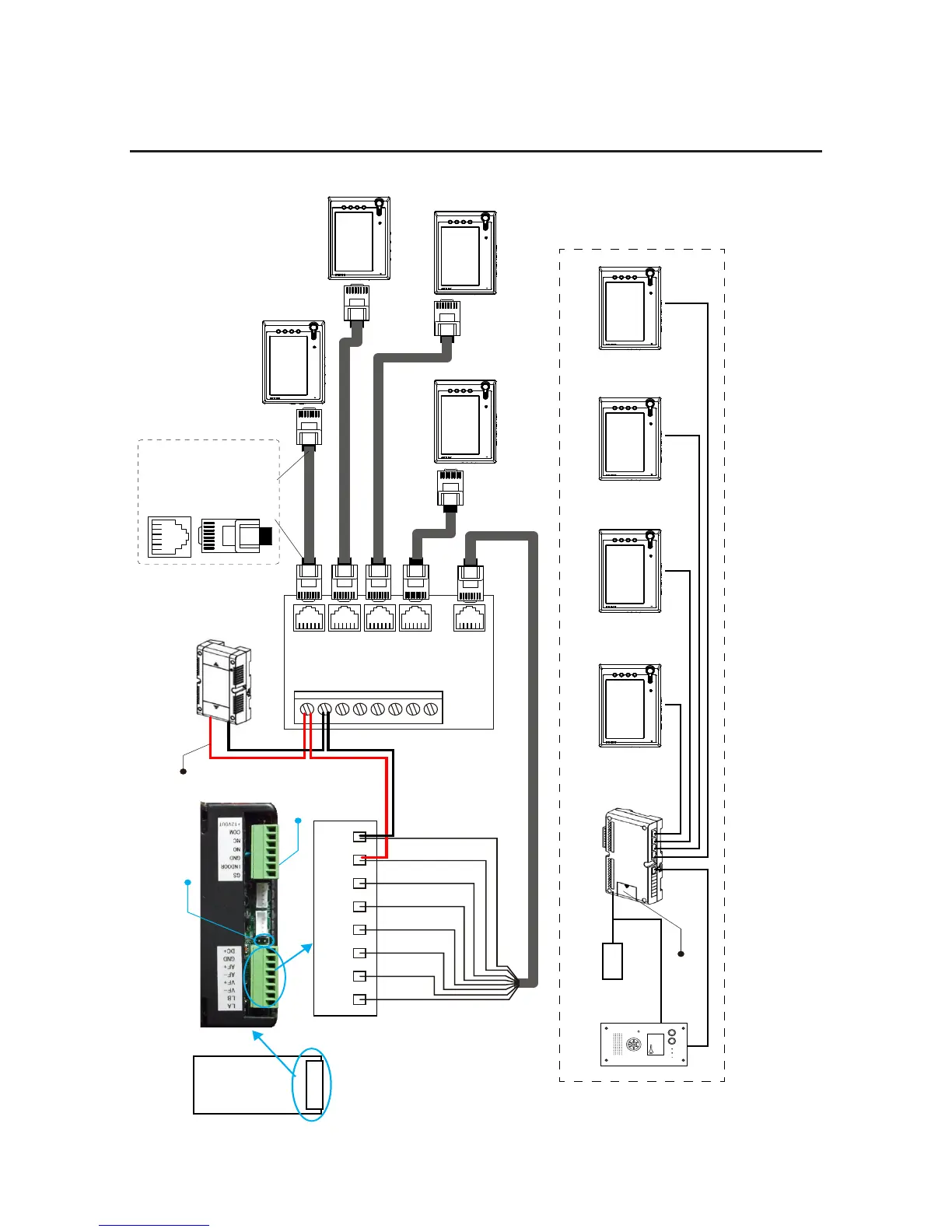

4.4 Doorbell B Multiple monitors connection
Doorbell
Power
Supply
Distributor 4110S
Distributor 4110S
Power
Supply
4# Monitor
1# Monitor
3# Monitor
2# Monitor
2# Monitor
4# Monitor
1# Monitor
3# Monitor
PORT4
DC+
GND
AF+
AF-
VF+
VF-
LB
LA
PORT3
PORT2
PORT1
+
-
Brown
Brown/white
Blue
Blue/white
Green
Green/white
Orange
Orange/white
LA LB VF- VF+ VF- AF+ GND DC+
Note 4
Note 1
Note 1: Power to the doorbell can be connected either from 4001 power supply or 4110s distributor.
Note 2: Remove the jumper for multiple monitor systems.
Note 4: Open the cover and set the DIP switch 1 to “On”.
12345678
8. Brown
7. Brown/white
6. Green
5. Blue/white
4. Blue
3. Green/white
2. Orange
1. Orange/white
12345678
10
SPEAK
NOW
DOOR
SERVICE
OPEN
CALL
Note 2
Note 3
Doorbell back view
Note 3: This connector is for lock connection. See lock connection diagram.
