Intenza Treadmill Handbooks. 550Ti and 450Ti2&Ti2S Assembly Instructions

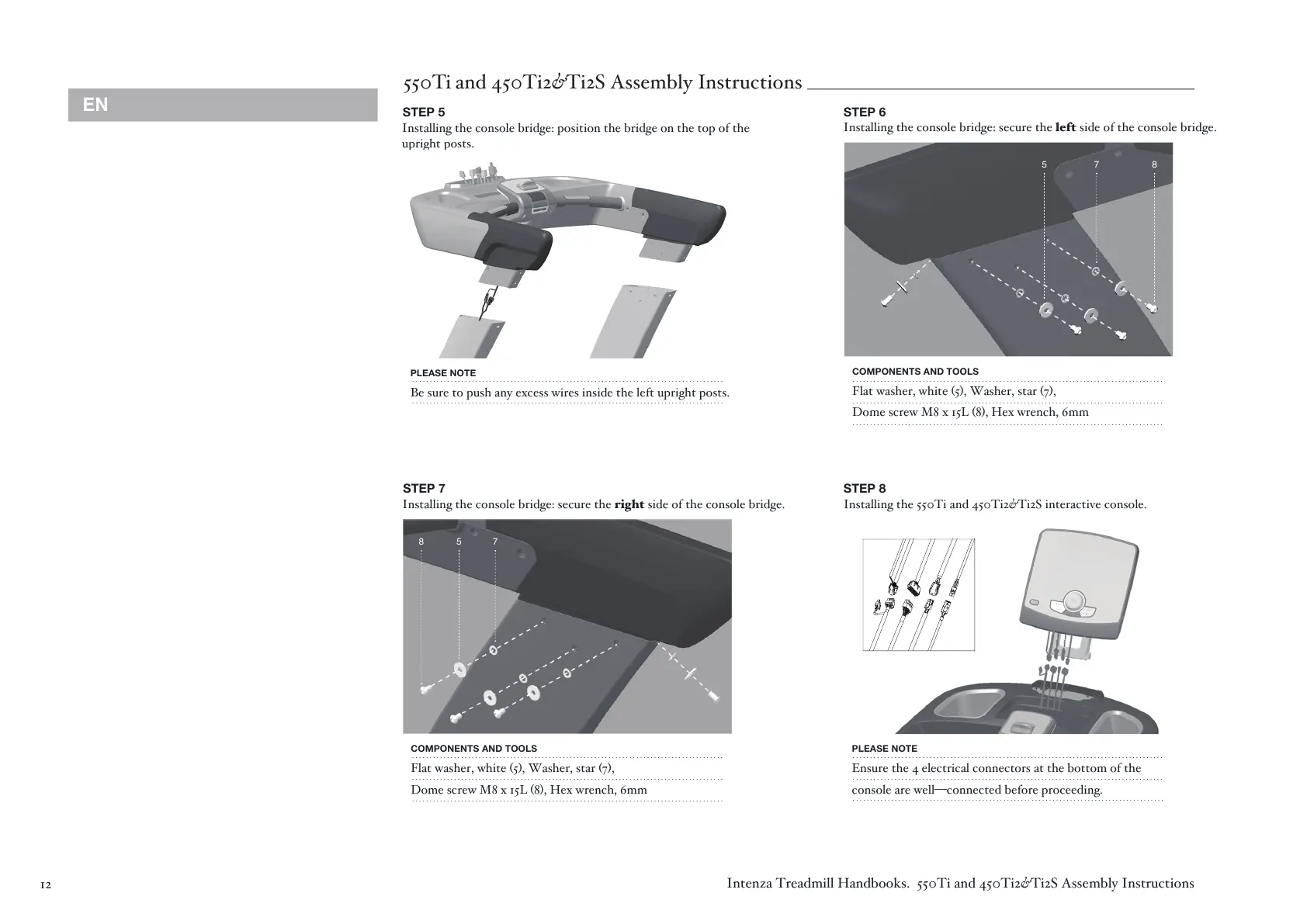

STEP 5 STEP 6

. ... .... ..... ........... ..... ............... ..... ....... ..... ... ... . . ................... .

. . ... . ... ........ ....... ... . ... ... . . ... ... ... . ... ....... ... . ... ... ... . ..... ... ..... ... ...

STEP 8

Installing the console bridge: position the bridge on the top of the

upright posts.

PLEASE NOTE

Be sure to push any excess wires inside the left upright posts.

. . ... . ... ........ ....... ... . ... ... . . ... ... ... . ... ....... ... . ... ... ... . ..... ... ..... ... ...

STEP 7

. ... .... ..... ........... ..... ............... ..... ....... ..... ... ... . . ................... .

550Ti and 450Ti2&Ti2S Assembly Instructions

Installing the console bridge: secure the left side of the console bridge.

Installing the console bridge: secure the right side of the console bridge.

COMPONENTS AND TOOLS

Flat washer, white (5), Washer, star (7),

Dome screw M8 x 15L (8), Hex wrench, 6mm

COMPONENTS AND TOOLS

Flat washer, white (5), Washer, star (7),

Dome screw M8 x 15L (8), Hex wrench, 6mm

Installing the 550Ti and 450Ti2&Ti2S interactive console.

PLEASE NOTE

Ensure the 4 electrical connectors at the bottom of the

console are well—connected before proceeding.

. ... .... ..... ........... ..... ............... ..... ....... ..... ... ... . . ................... .

8

........... .... ................................... ..... .... .

75 8

58 7
