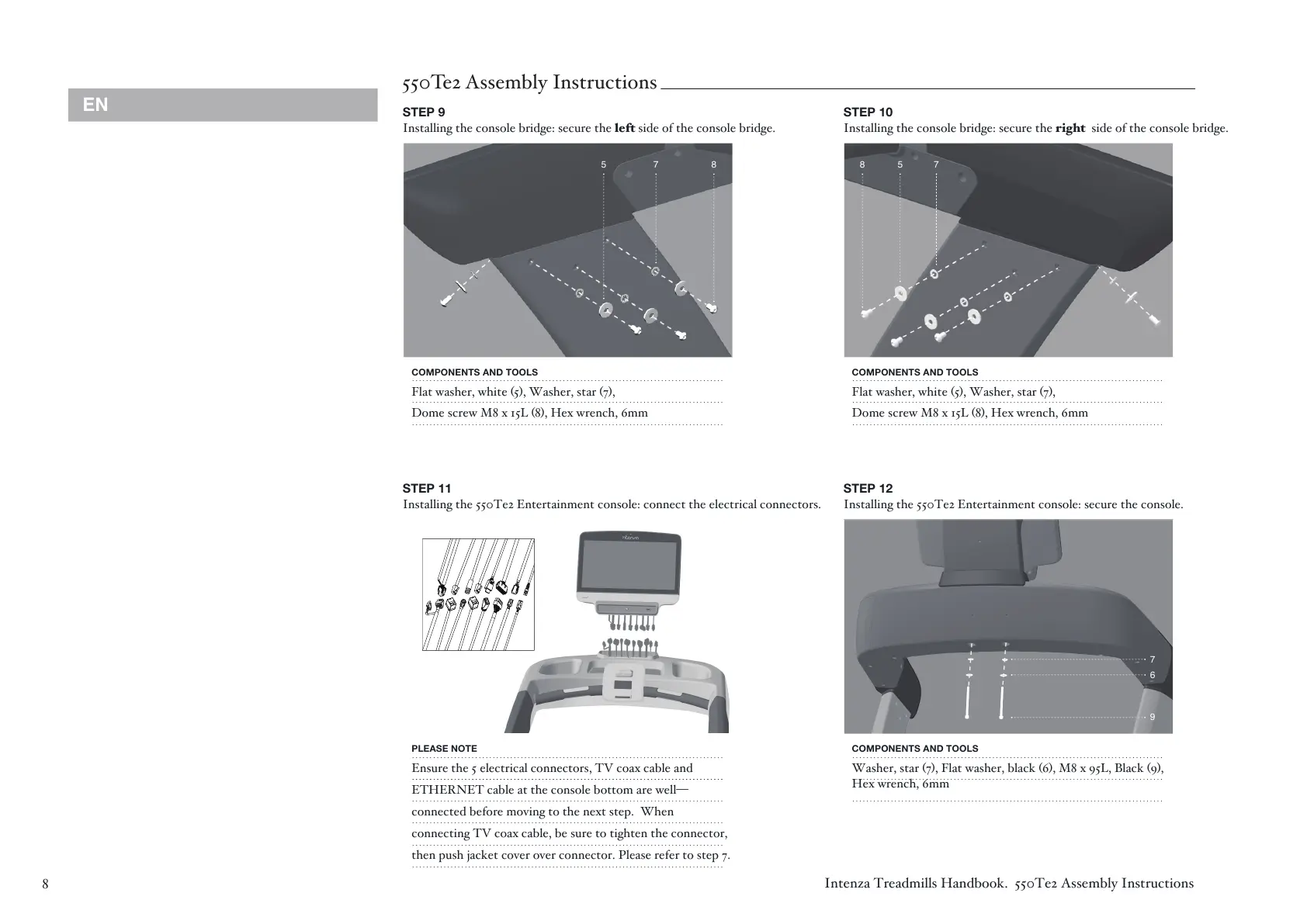

Intenza Treadmills Handbook. 550Te2 Assembly Instructions

STEP 9

Installing the console bridge: secure the left side of the console bridge.

STEP 10

Installing the console bridge: secure the right side of the console bridge.

COMPONENTS AND TOOLS

Flat washer, white (5), Washer, star (7),

Dome screw M8 x 15L (8), Hex wrench, 6mm

. ... .... ..... ........... ..... ............... ..... ....... ..... ... ... . . ................... .

COMPONENTS AND TOOLS

Flat washer, white (5), Washer, star (7),

Dome screw M8 x 15L (8), Hex wrench, 6mm

. . ... . ... ........ ....... ... . ... ... . . ... ... ... . ... ....... ... . ... ... ... . ..... ... ..... ... ...

PLEASE NOTE

Ensure the 5 electrical connectors, TV coax cable and

ETHERNET cable at the console bottom are well—

connected before moving to the next step. When

connecting TV coax cable, be sure to tighten the connector,

then push jacket cover over connector. Please refer to step 7.

. ... .... ..... ........... ..... ............... ..... ....... ..... ... ... . . ................... .

STEP 11

Installing the 550Te2 Entertainment console: connect the electrical connectors.

STEP 12

Installing the 550Te2 Entertainment console: secure the console.

COMPONENTS AND TOOLS

Washer, star (7), Flat washer, black (6), M8 x 95L, Black (9),

Hex wrench, 6mm

. . ... . ... ........ ....... ... . ... ... . . ... ... ... . ... ....... ... . ... ... ... . ..... ... ..... ... ...

. . ... . ... ........ ....... ... . ... ..

. . . ... ... ... . ... ....... ... . ... ... ... . ..... ... ..... ... ...

. . ... . ... ........ ....... ... . ... ... . . ... ... ... . ... ....... ... . ... ... ... . ..... ... ..... ... ...

550Te2 Assembly Instructions

75 8

7

6

9

58 7

EN

Intenza 450TI2S User Manual
