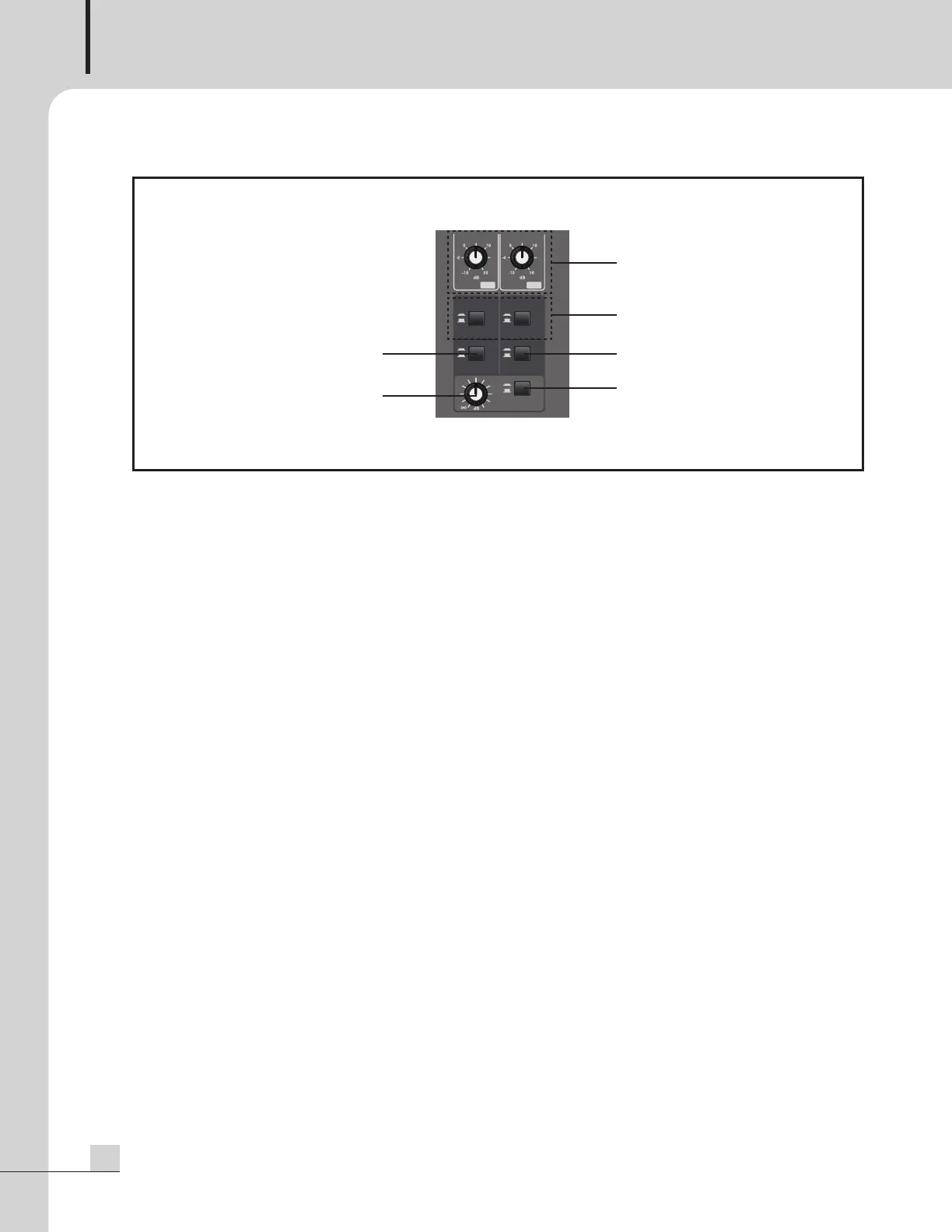

1. INPUT GAIN CONTROL
It adjusts the gain of the input signal.
■ STEREO channel (LINE): -10dB~+20dB
2. STEREO (ST3, ST4) MIX SWITCH
ST3 switch controls mix On or Off of the ST3 input signal.
ST4 switch controls mix On or Off of the ST4 input signal.
3. PC AUDIO MIX SWITCH
This switch mixes the PC AUDIO input signal with the ST3 input signal.
4. SD/USB MIX SWITCH
This switch mixes SD / USB playback signal with the ST4 input signal.
5. USB/SD PLAYBACK VOLUME
It adjusts the signal output level of SD / USB playback.
■ Adjustment Range: -∞ ~ 0dB
6. SD/USB SELECTION SWITCH
You can select SD card or USB memory to use it for Playback or Recording.
※
The AUX, FX, PAN, and FADER parts of the STEREO channel are the same as those of the MONO channel.
ST 3
GAIN GAIN
ST 4
SD/USB
ON
OFF
ON
OFF
ST 4
ST 3
PC AUDIO
ON
OFF
ON
OFF
SD/USB
SD
VOL
USB
0
5
15
5
15
1
3
5
2
4
6
- Stereo Input
