PA-2000/PA-4000/PA-2000R/PA-4000R Public Address Amplifier
Connecting Speakers
Before connecting speakers to your PA-2000/PA-4000 unit, be sure to disconnect the AC
power cable. Make certain that the total impedance is not less than the rated
impedance indicated.

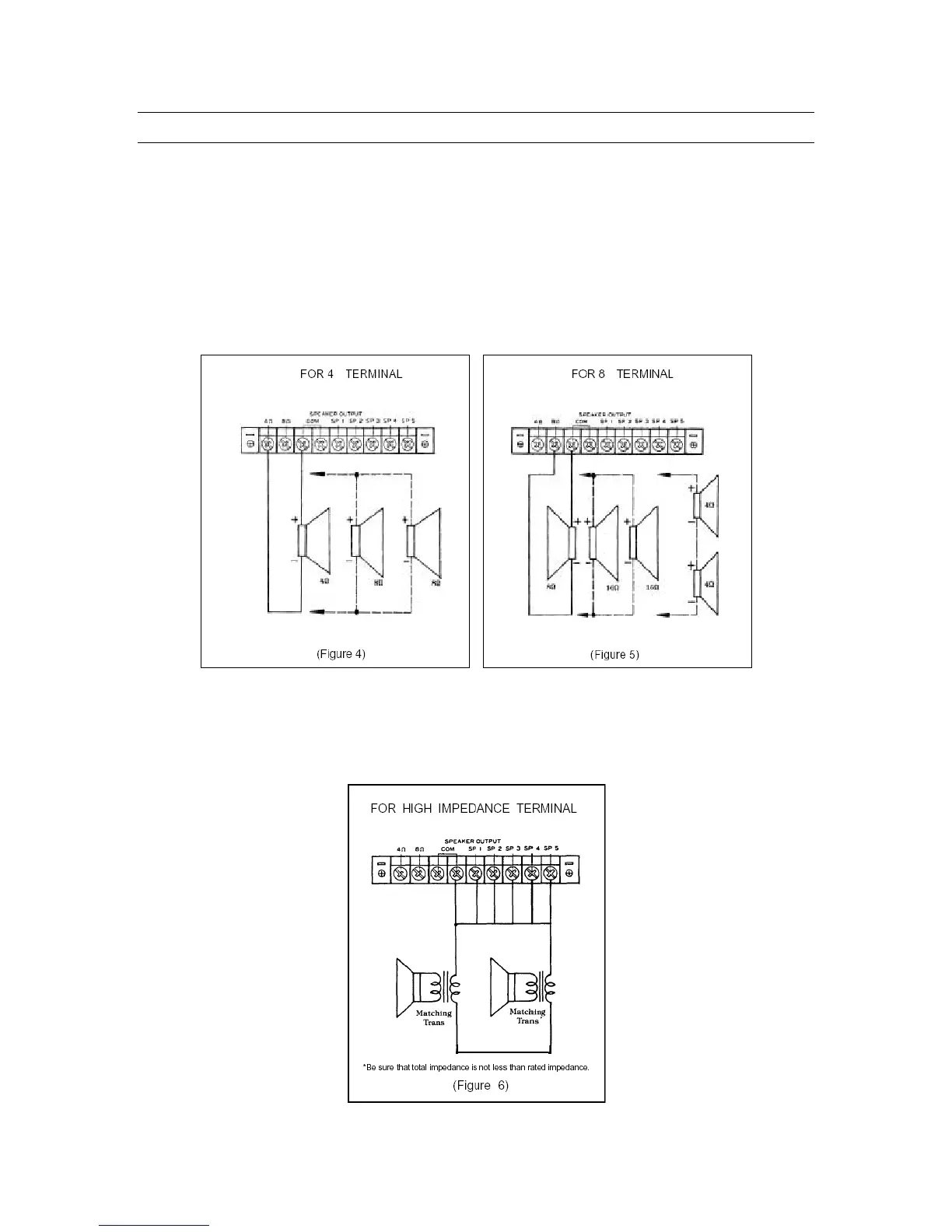

For 4 speakers, connect in parallel, with the negative (-) connectors to the 4 terminal
and the positive (+) connectors to the COM terminal. See Figure 4 below.
For 8 speakers, connect in parallel, with the negative (-) connectors to the 8 terminal
and the positive (+) connectors to the COM terminal. See Figure 5 below.
For high-voltage distributed systems, connect with matching transformer as per Figure 6
below. Be certain that the total impedance does not equal less than the rated
impedance.
15
