PAM-60/PAM-120 Public Address Amplifier

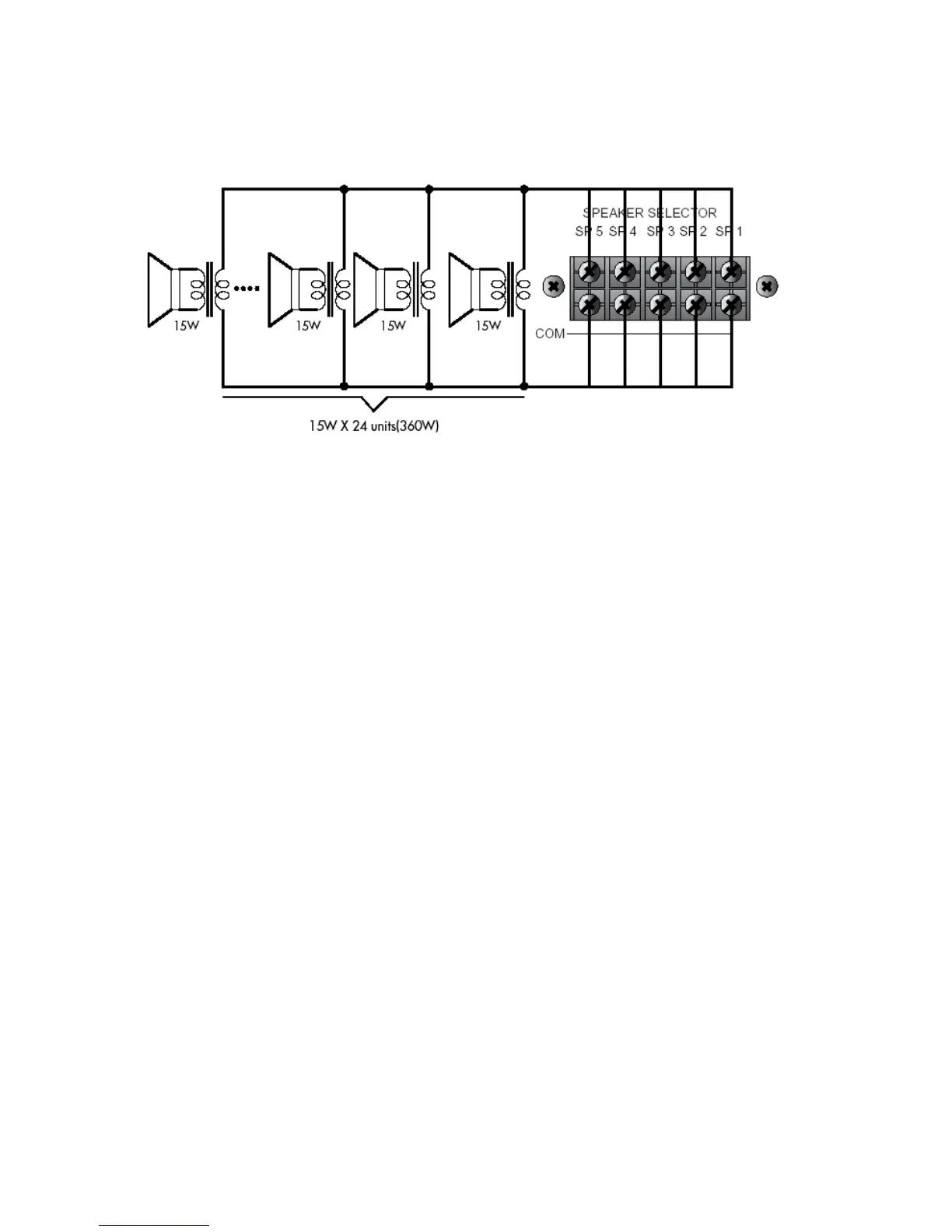

For example, if you are connecting speakers with a rated input of 15W, you can connect
up to 24 speakers in parallel, as shown below:
WARNING: Extreme care must be exercised when connecting low-impedance systems,
as potentially hazardous voltages may be present at these terminals.
Do not install this equipment in a confined space with less-than-adequate ventilation.
13
