PAM-60/PAM-120 Public Address Amplifier
Installation of Speakers
Before connecting speakers, disconnect the AC power cable. Note the proper
connecting terminals as shown below. Make certain that the total impedance is not less
than the rated impedance indicated.

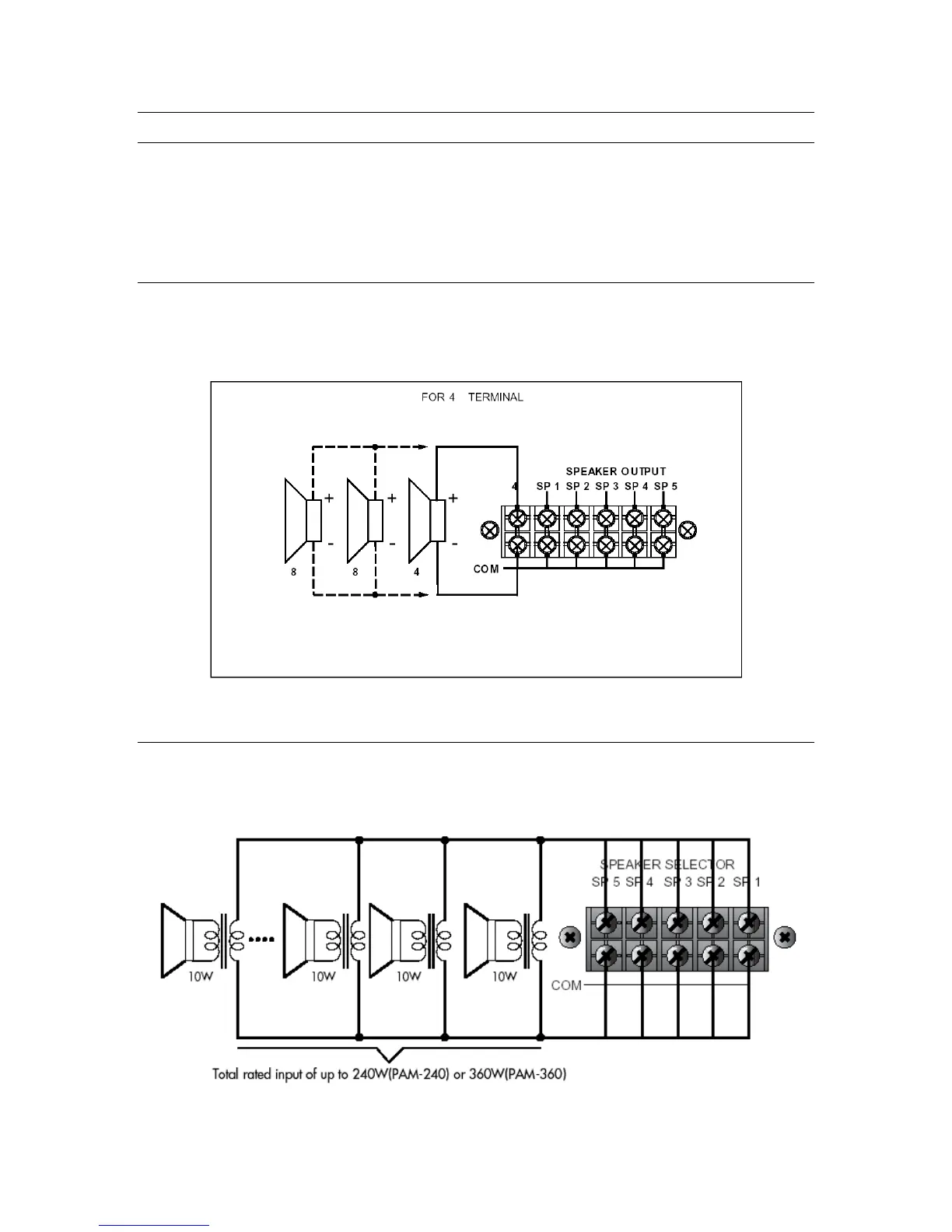

Connecting 4Ω or 8Ω Speaker Systems
When connecting conventional 4 or 8 speaker systems, connect the speaker’s
positive (+) side to the terminal labeled 4. Connect the speaker’s negative (-) side to the
terminal labeled COM. See illustration below:
Connecting High-Voltage Distributed Speaker Systems
When connecting a low-impedance (70W/100W) speaker system in parallel, you can
connect speakers with a total rated input of up to 240W (PAM-240) or 360W (PAM-360).
12
