MULTI P.A COMBINATION
10
SYSTEM-2240G

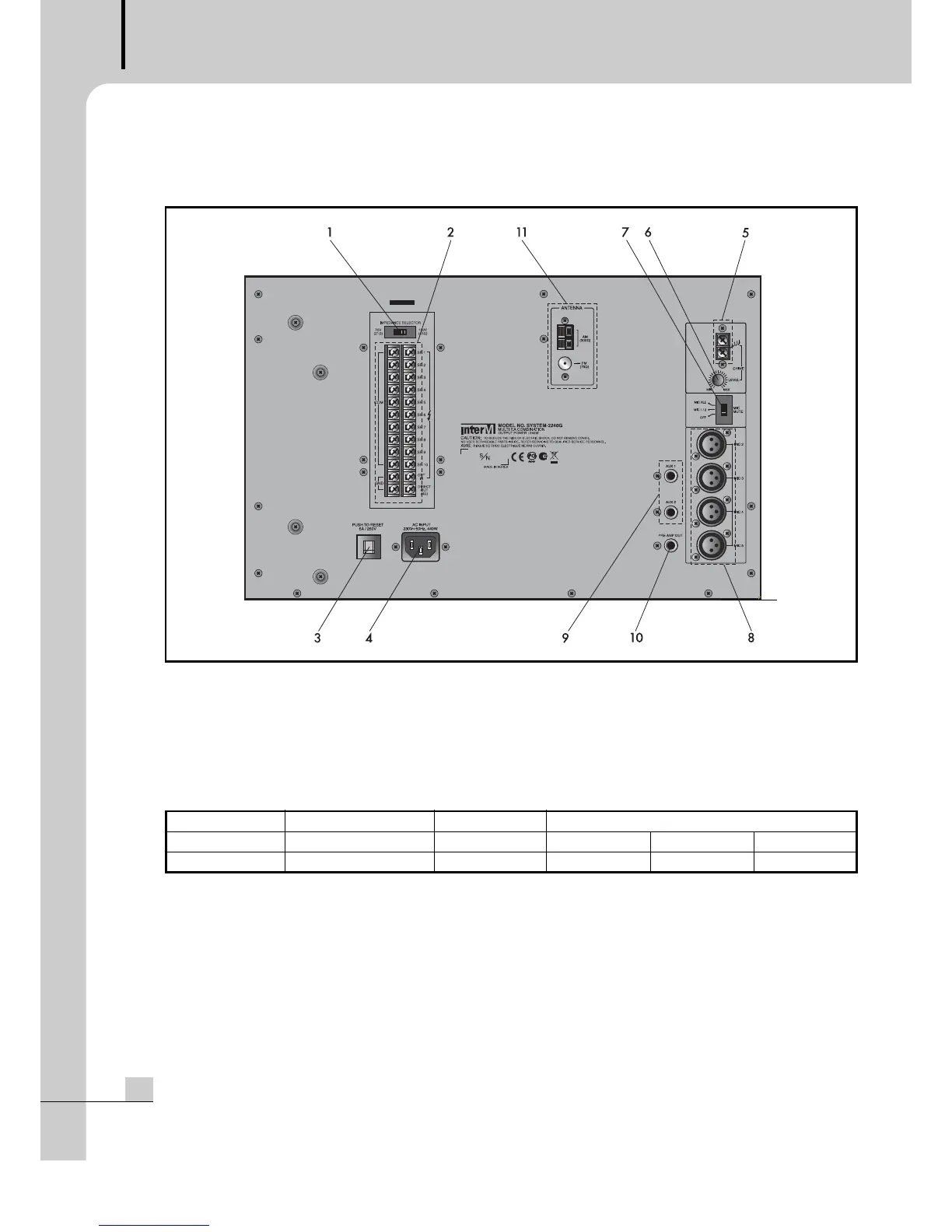

Rear Panel
Rear Panel
1. IMPEDANCE SELECTOR
Selects between high impedance (100V/25V) operation for standard applications and low impedance (70V)
operation for distributed systems.
2. SPEAKER OUTPUT TERMINAL STRIP
Connect up to 10 individual speakers to this strip. Make certain that the total impedance load is less than the
rated impedance, as shown below.
3. CIRCUIT BREAKER
In the event of an AC power overload, the circuit breaker will trip, interrupting the AC power source and
protecting the unit from excess current. Push the circuit breaker in to reset.
4. AC INLET
Connect the supplied standard AC input cable here.
MODEL Low Imp. Out High Imp. Out
Impedance SYSTEM-2240G 4Ω 21Ω 41Ω 2.6Ω
Voltage SYSTEM-2240G 31V 70V 100V 25V
