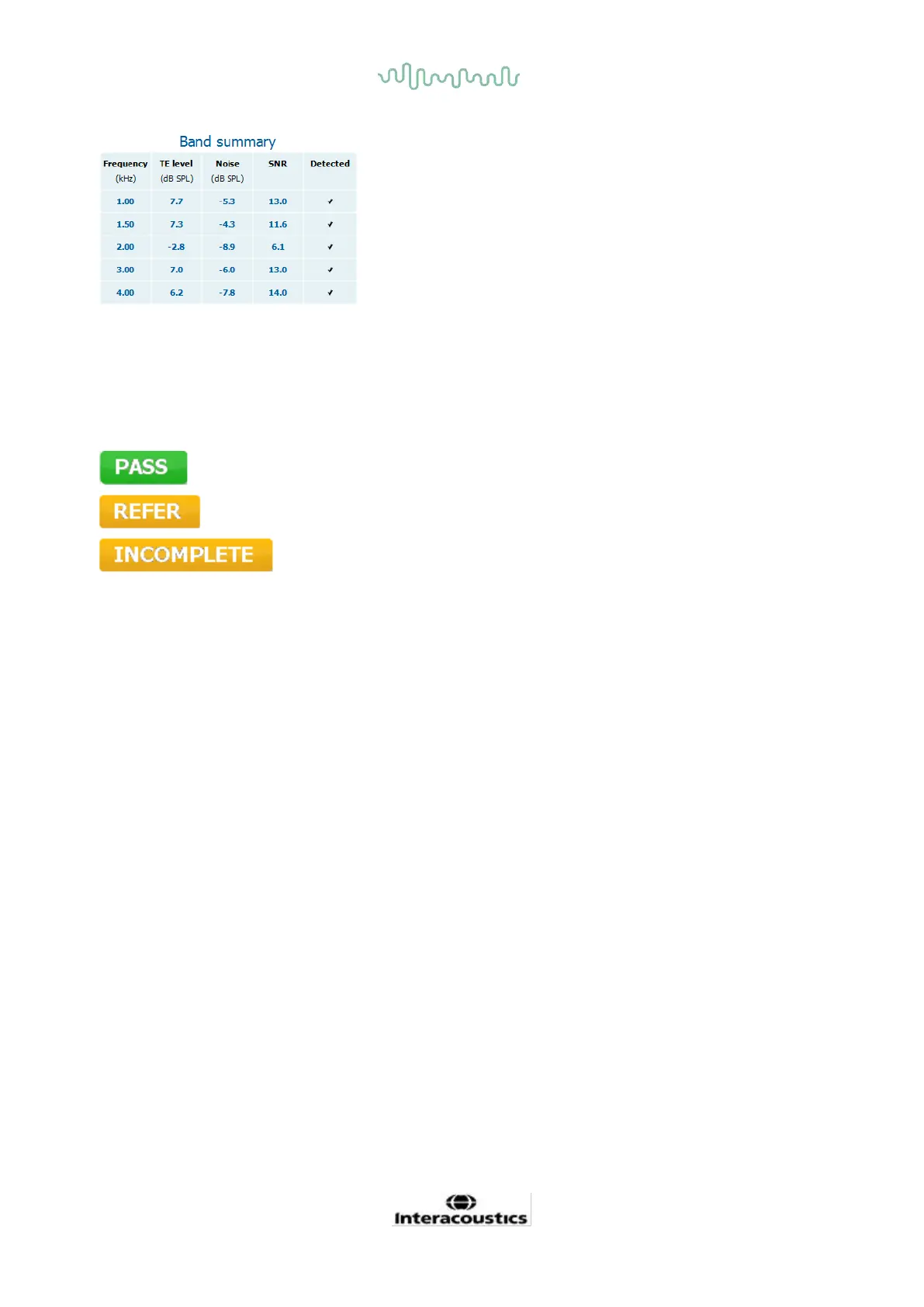

The Band Summary table displays the test frequencies, TE level,
Noise, SNR. The Detected column displays a check mark when
the specified frequency has met the criteria as setup in the
protocol.
TE level, Noise and SNR values are rounded based on raw data.
Therefore, the calculated SNR value displayed may not always
equal the TE level minus the Noise.
When the stimulus level goes outside the tolerance set in the
protocol setup, the stimulus levels outside tolerance pop-up
dialogue will appear on screen.
Press Stop to stop testing.
Press Skip if you want to continue testing without the frequency for
which this message appeared.
Screening protocol results can be PASS, REFER or
INCOMPLETE and are indicated above the measurement.
The statistical significance of the detected result is dependent upon
a combination of the following user defined settings in the protocol
setup: Test time, Stimulus levels, SNR, Min DP level, DP tolerance,
Reliability, Number of points required for a pass, Mandatory points
required for a pass.
