Coil Nailer
Drives Plastic Sheet Nails (1¼" to 2½" / 32 to 65mm)
or Wire Weld Nails (1¾" to 2½" / 45 to 65mm)
Model No. CN565-15
Item No. 65555
10
Interchange Brands Operator’s Manual
Operating the Nailer
NOTE: The information contained in this Manual is designed to assist you in the safe
operation of the nailer. Some illustrations in this Manual may show details or attach-
ments that are different from those on your nailer.
Air Supply, Connections and Operating Pressure
Read section titled SAFETY. Make sure of the following before operation:
Air Supply
Power Source (Compressor)
Use only clean, dry, regulated compressed air as a power source for this
nailer.
NEVER use oxygen or other bottled gases, as an explosion may occur.
Air compressors used to supply compressed air to this nailer must comply
with the requirements of the latest version of ANSI Standard
B 19.3 Safety Standard for Compressors for Process Industries.
Moisture or oil in the air compressor may accelerate wear and corrosion in
the nailer.
Drain daily.

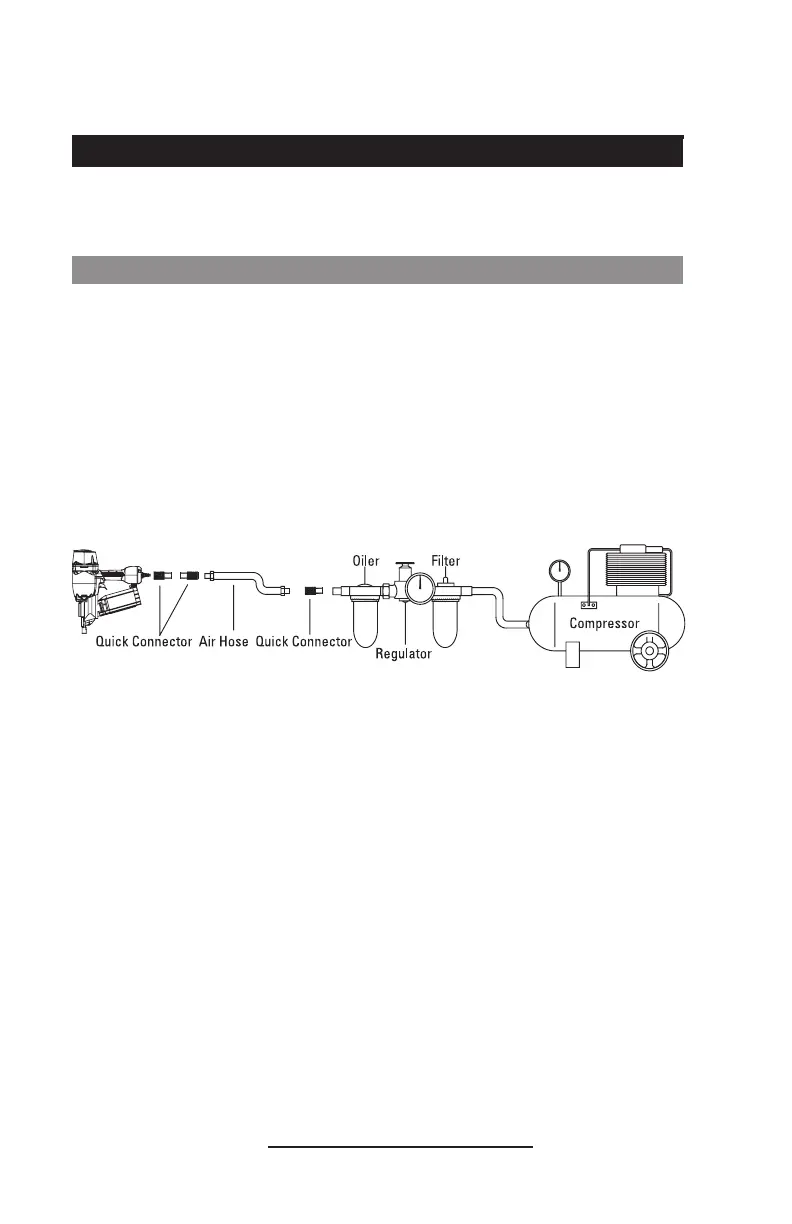

Connections
1. Fittings
Install a female coupler to the hose. The female coupler will connect to the quick
release that fits the tool.
2. Filter-Regulator-Lubricator
NEVER connect nailer to pressure which potentially exceeds 150 psi.
Filter-regulator-lubricator units supply an optimum condition for the nailer
and extend the nailer life. These units should always be used.
Filter
The filter removes moisture and dirt mixed in compressed air.
Keep the filter clean by maintaining tool regularly.
Drain daily.
Regulator
The regulator controls the operating pressure for safe operation of the nailer.
Inspect the regulator before operation to be sure it operates properly.
Lubricator
The lubricator supplies an oil mist to the nailer.
Inspect the lubricator before operation to be sure the supply of lubricant is
adequate.
If an inline lubricator is not used, a few drops of oil will need to be added to
the air inlet before each use.
