Interchange CN565-15 - Nail Loading Procedure

15
o
Coil Nailer
Drives Plastic Sheet Nails (1¼" to 2½" / 32 to 65mm)
or Wire Weld Nails (1¾" to 2½" / 45 to 65mm)
Model No. CN565-15
Item No. 65555
13
Interchange Brands Operator’s Manual
Nail Loading

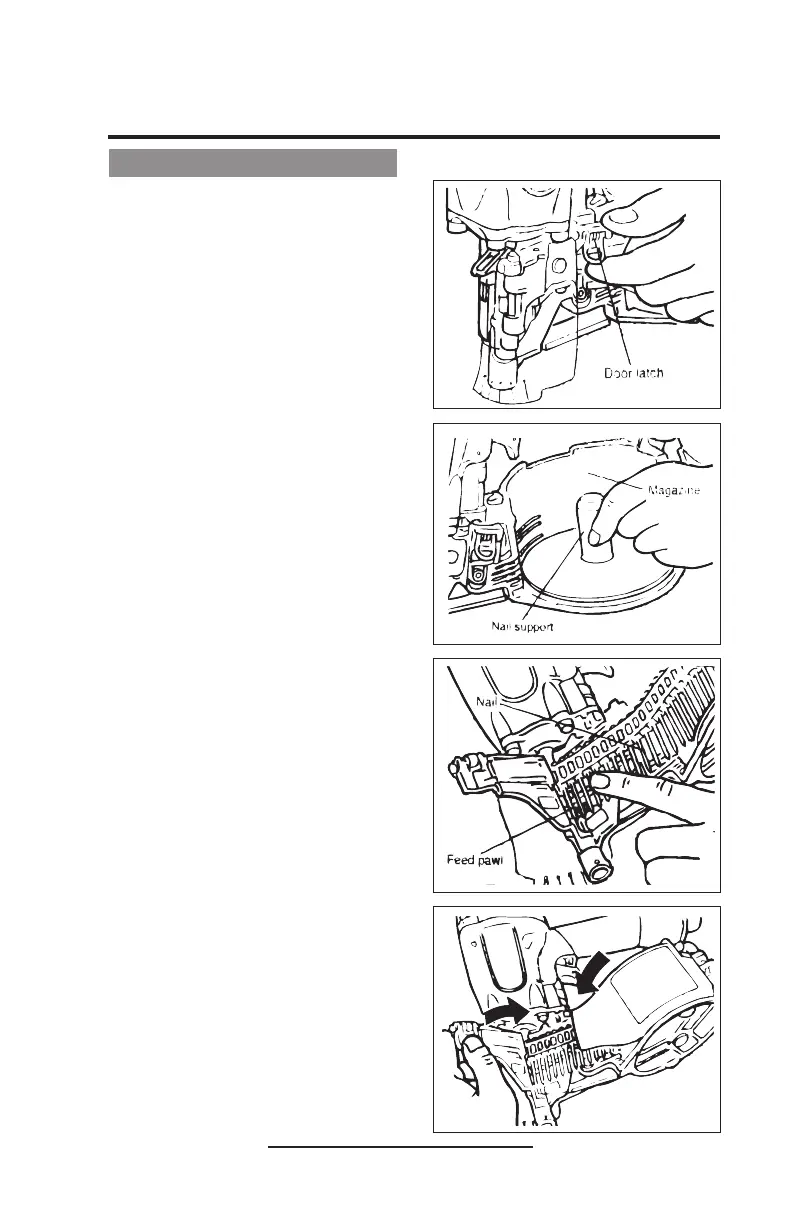

1. OPEN THE MAGAZINE
Hold door and door latch and pull
up door latch. Swing door open.
Swing magazine cover open.
2. CHECK ADJUSTMENT
The nail support can be moved
up and down to four settings. To
change setting pull up on the post
and twist to the correct step. The
nail support should be adjusted
correctly to the position indicated
in inches and millimeters inside
magazine.
3. NAIL LOADING
Place a coil of nails over the post in
the magazine. Uncoil enough nails
to reach the feed pawl and place
the second nail between the teeth
on the feed pawl. The nail heads fit
in slot on nose.
4. SWING COVER CLOSED
5. CLOSE THE DOOR
Check that the latch engages. ﹙If
it does not engage, check that the
nail heads are in the slot on the
nose﹚.
