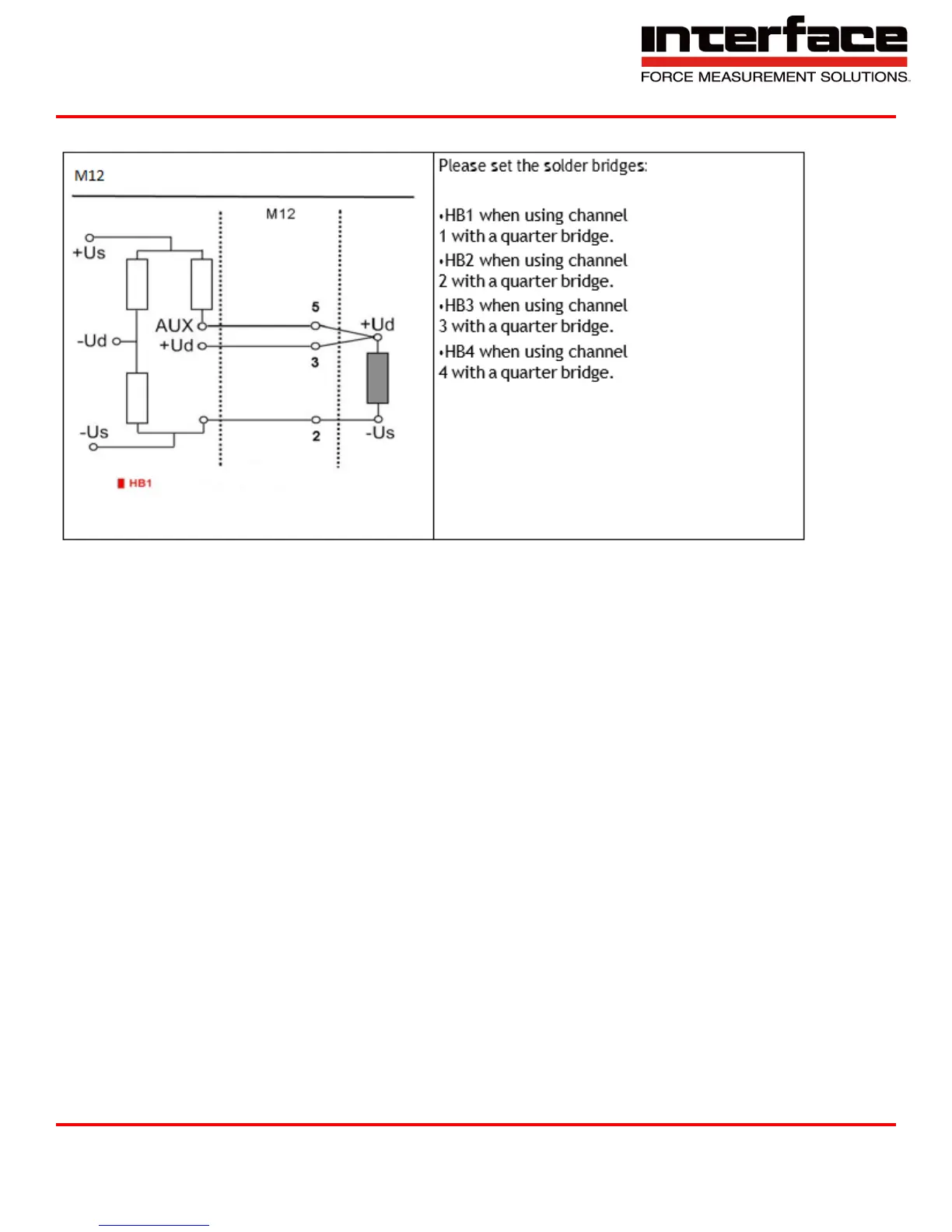

Quarter Bridge - PT1000 with M12
Automatic Zero Point Setting
The automatic zero point setting is done via push button or via the digital input PIN 28 or 10 or 19 or
37.
Note: The GNDio PINs for the automatic zero adjustment are separated from the analog
ground.
Connect GNDio (PIN1) permanently to analog ground of power supply and connect the supply
voltage, but at least 3.5V with PIN 28 or 10 or 19 or 37 for remote zeroing.
