Adapting the Bridge Extension

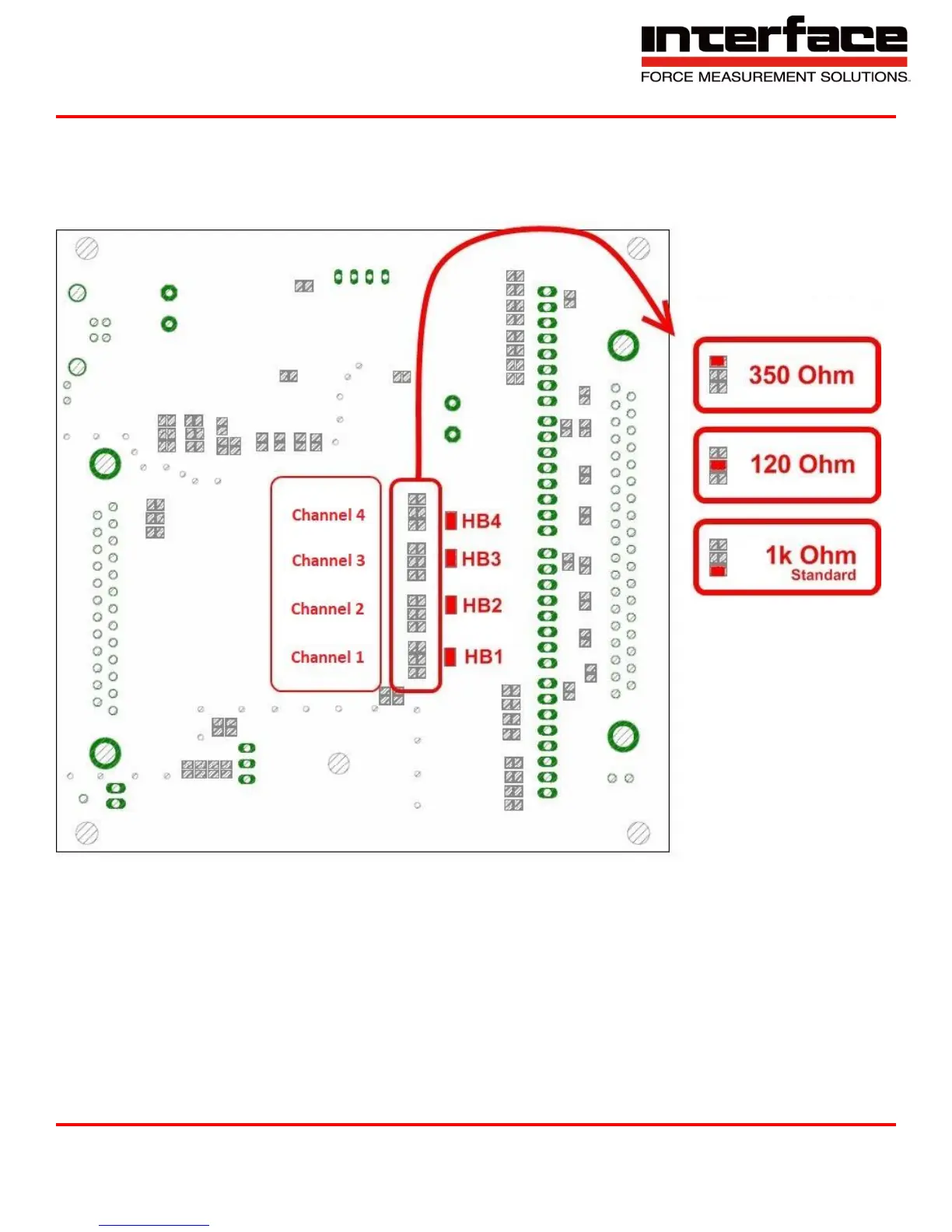

The bridge extension can be adapted individually for each channel; open the device and extend the
desired solder bridge according to the following figure.
