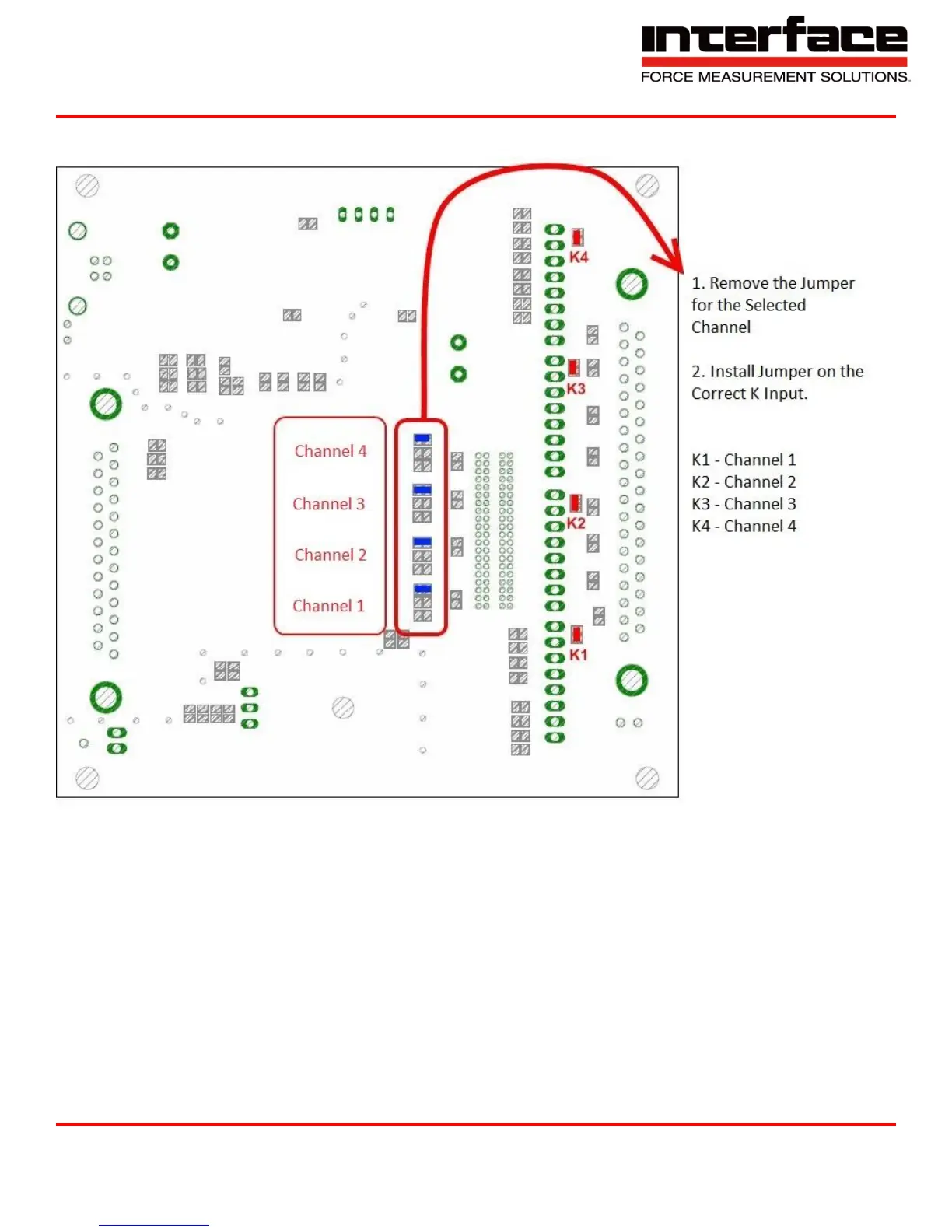

Altering Strain Gage Input to the Voltage Input
Opening the device
1. Remove both screw covers from the input side and remove the fastening screws from the front
cover.
2. The two hexagonal bolts on the 37-pin D-Sub port must be loosened using a socket spanner (5
mm).
3. The printed circuit board is pulled out on the side of the 25-pin D-Sub port.
