BSC4 Operating Manual
Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924
www.interfaceforce.com ● Email: contact@interfaceforce.com ● 800.947.5598
Document Number 15-183 Rev B Page 50 of 74
4.1.8. Store to device
A. Calculate filter and store all necessary information in the device if the calculation is
successful. The same settings will be stored for all 8 inputs if “Apply to all input
channels” is checked.

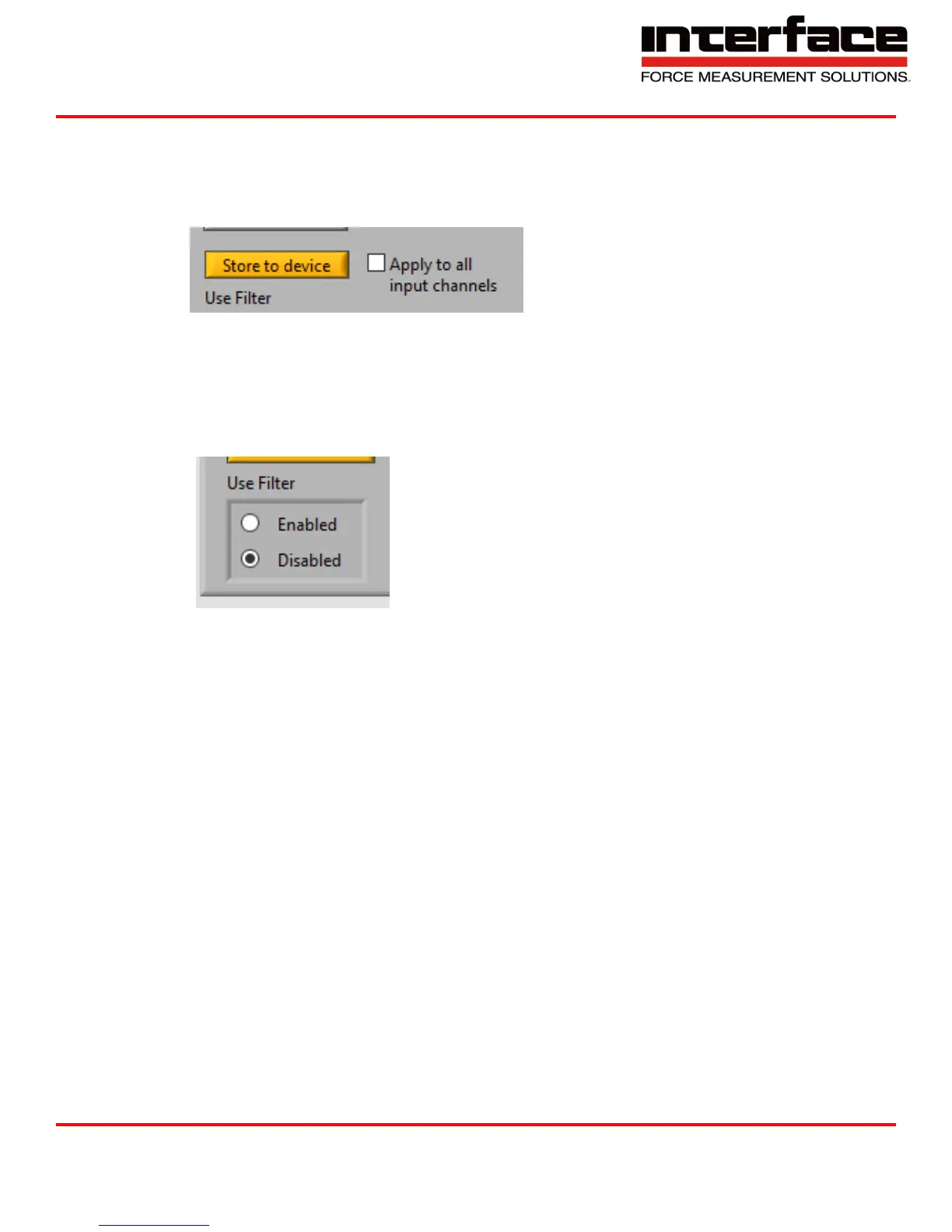

FIGURE 56 – STORE TO DEVICE
4.1.9. Use Filter
A. Enable or disable this filter. Even if disabled, all other filter settings will remain stored in
device (if no error occurred), if they are already stored.
B. This filter will be enabled/disabled for all 8 inputs channels if “Apply to all channels” is
checked.
FIGURE 57 - USE FILTER
