BSC4 Operating Manual
Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924
www.interfaceforce.com ● Email: contact@interfaceforce.com ● 800.947.5598
Document Number 15-183 Rev B Page 63 of 74
1.2. Communication Interface
1.2.1. Bits/s – Communication Bitrate. If you aren’t sure which Bitrate is appropriate to your device,
leave this at 115200.

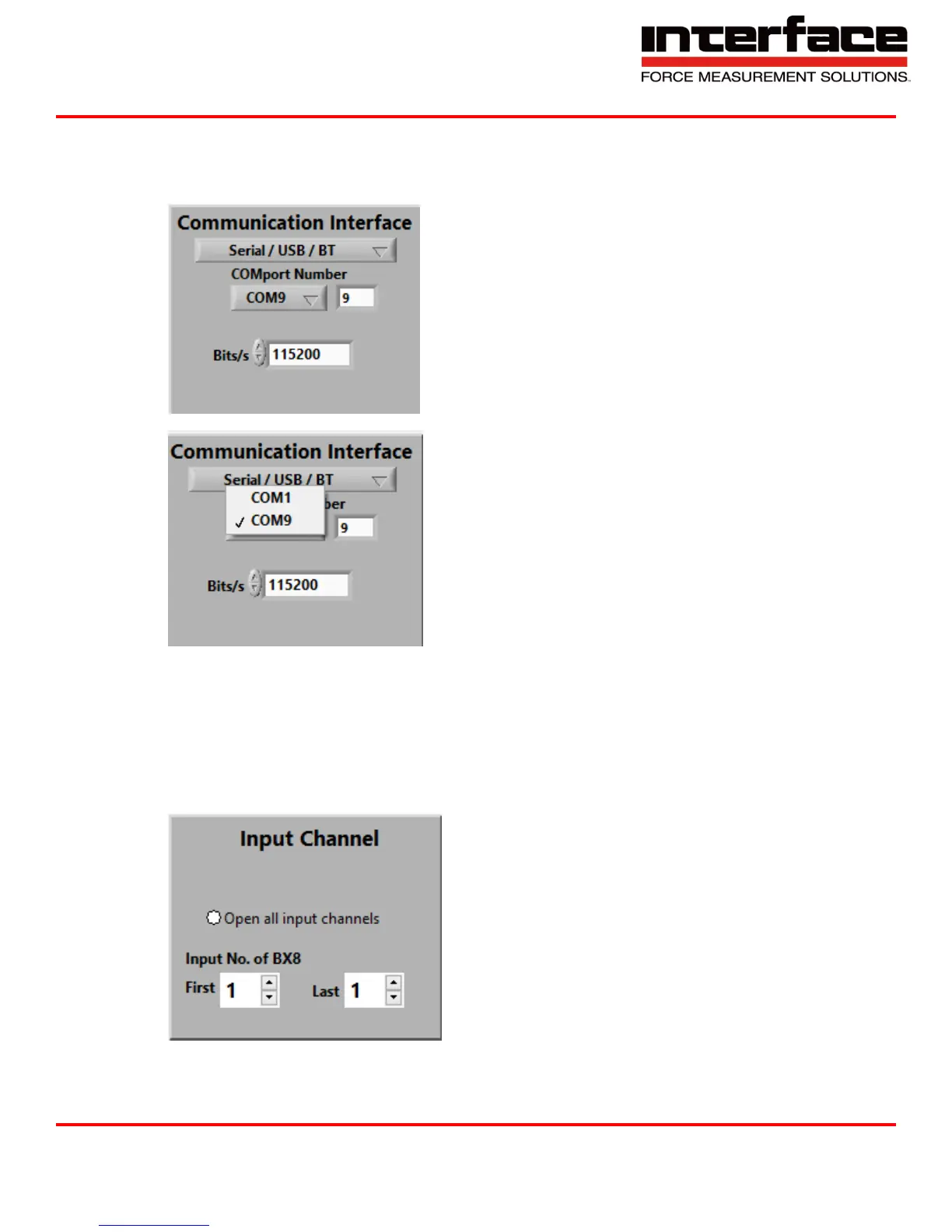

FIGURE 84 - COMMUNICATION INTERFACE
FIGURE 85 - COMMUNICATION INTERFACE COM
1.3. Input Channel
1.3.1. Open all input channels will open all 8 inputs.
1.3.2. Input No. of BX8 – The amplifier has several inputs. Select the desired input(s) here. If
opening several inputs, enter lowest channel-No. to open here.
i. First
ii. Last
FIGURE 86 - INPUT CHANNEL
