Intergas Heating Ltd 20
7.3 Assembly
The boiler can be mounted either on the fixing strip which is supplied in the box or to a
wall mounting jig with an expansion vessel.
The wall mounting jig includes an expansion vessel and shut off valves.
If the fixing strip is used an external ROBO kit must be fitted as well.

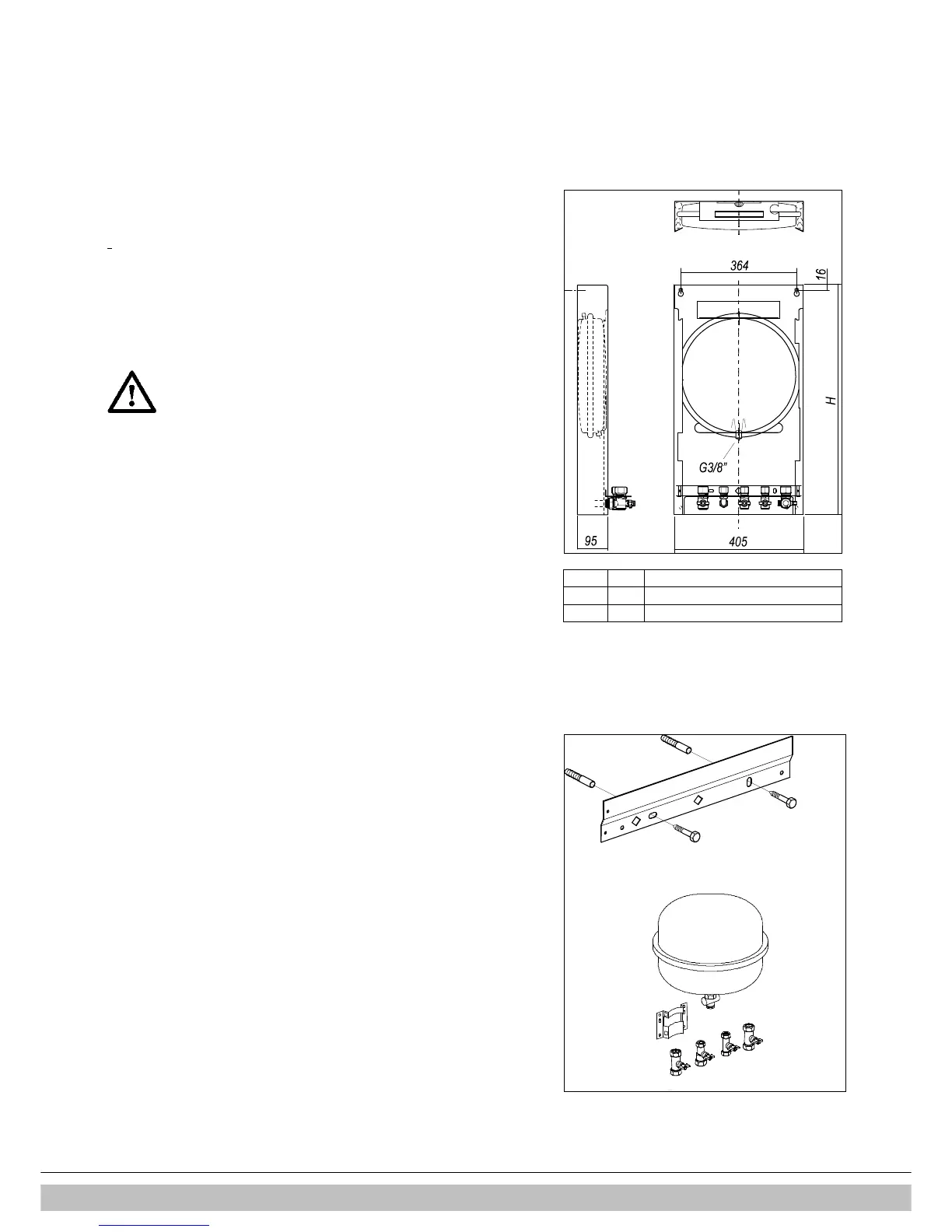

7.3.1 Using the wall mounting jig + mounting bracket
•
Using the fastening materials supplied, secure the jig vertically to the wall.
Make sure the wall is suitable for placing the boiler.
•
Secure the bracket with the shut-off valves in the jig by inserting it with the flanged
side upwards through the openings (sleeves) in the jig.
Note
The appliance is wider than the jig.
•
Install the CH heating system and the DHW system to the valves.
CAUTION
Make sure that the boiler connections of the shut off valves
remain in the correct position (= straight upwards). Do not
over tighten connections. Do not turn tightened valves on
pipes as this weakens joints within the boiler.
7.3.2 Using the fixing strip + ROBO kit.
•
Position the fixing strip to the wall and drill the holes.
•
Using apropriat fixing materials, secure the strip horizontaly to the wall.
Make sure the wall is suitable for placing the boiler.
•
Hang the boiler on the fixing strip and connect the ROBO kit to the boiler and
installation.
H = 840 Combi Compact HRE 36/30
H = 780 Combi Compact HRE 28/24
H = 720 Combi Compact HRE 24/18
+
