8.3 Electrical connection

CAUTION

A fused spur or an unswitched socket must be located no

more than 1 metre from the appliance.

For installation in damp rooms a fixed connection is

obligatory.

When working on the electrical circuit always isolate the

electric supply.

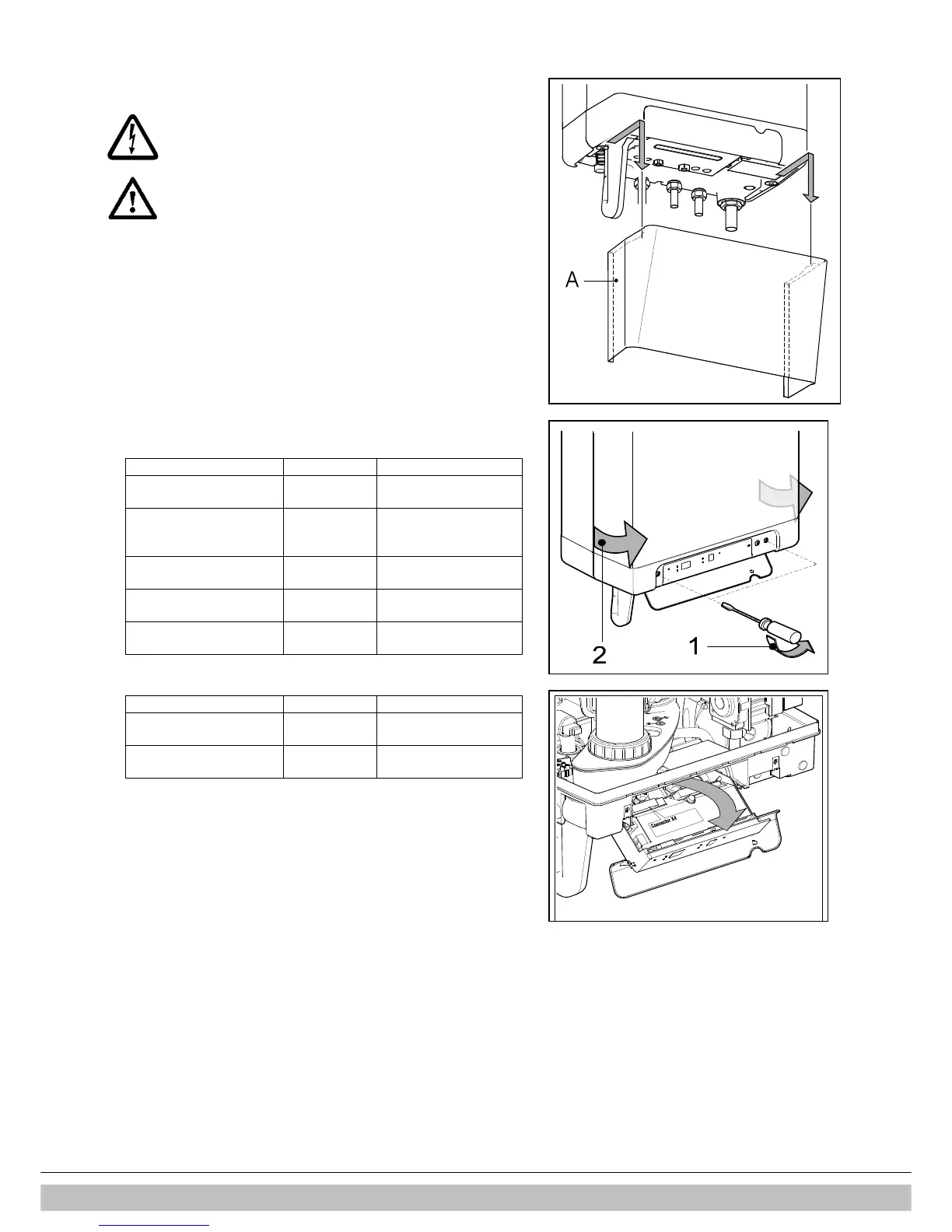

1. Slide the cover plate (A) (if present) to the front to remove.

2. Open the display cover and unscrew both screws to remove the front cover.

3. Pull the boiler controller unit forwards; the boiler controller will tip downwards to

provide access.

4. Consult sections § 8.3.1 and chapter 13 for making the connections.

5. After making the desired connections plug the appliance into an earthed wall

socket.

8.3.1 Electrical connections

Temperature control Connector X4 Notes

External switch for keep hot

facility

4 - 5 Parameter c. needs to be

set to 0. See § 10.3

Room thermostat 6 – 7 Voltage free room

thermostat.

Remove link 6-7

Outside temperature sensor 8 – 9 -

Frost protection thermostat 6 – 7 Parallel to room

thermostat

Open Therm (OT) 11 – 12 Remove link 6-7

Temperature control Connector X2 Notes

Room thermostat 230 V or

external control 230 V

1 – 3 Remove link 6 – 7 from

connector X4

Frost thermostat 230 V 1 – 3 Remove link 6 – 7 from

connector X4
