Intergas Combi Compact HRE 28/24 User Manual

Intergas Heating Ltd 9

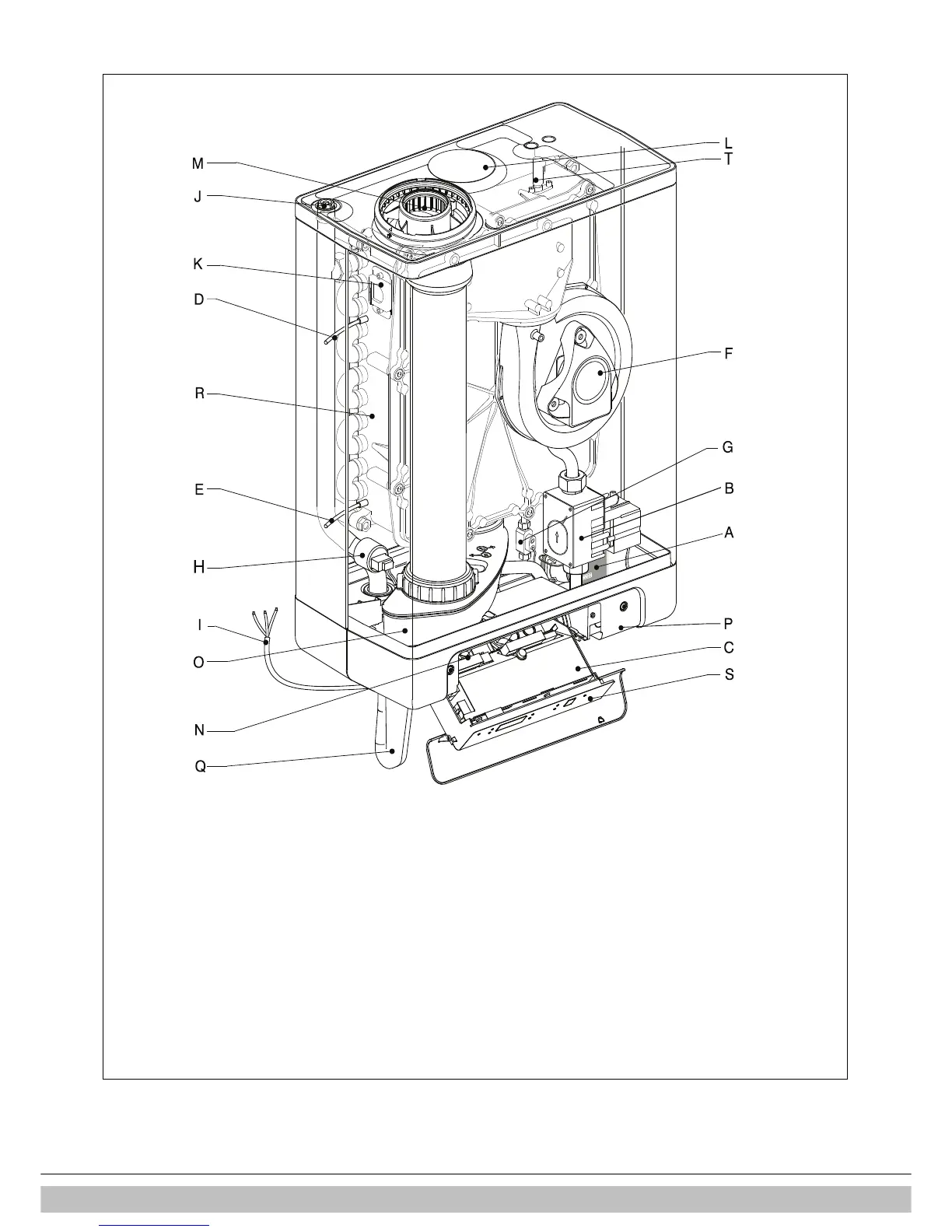

2.6 Components
03010092
A
CH pump L. Air supply cap (not te be removed)
B
Gas valve M. Flue pipe adapter (only to be used in combination
with the accompanying elbow in flue sets).
C
Boiler controller N. Connection block / terminal strip X4
D
Sensor S1 O. Condensate drain pan
E
Sensor S2 P. Hot water sensor S3
F
Fan Q. Condensate trap
G
Flow sensor R. Heat exchanger
H
CH pressure sensor S. Operating panel and read-out
I
Mains lead 230 V AC without plug (stripped) T. Ionisation / Ignition electrode
J
Manual air bleed U. Position of data plate
K
Sight glass

Intergas Combi Compact HRE 28/24 Specifications

General

Type	-
Fuel type	Natural gas
Boiler system	Combi boiler system
Product color	White
Heater location	Indoor
Placement supported	Vertical
Gas inspection label	CW, HRe, NZ, SV
Boiler type (NL label)	HR
CW inspection label class	4
HR inspection label class	107
Efficiency	107 %
Maximum power	- W
Water flow (40 °C)	12.5 l/min
Water flow (60 °C)	7.5 l/min
Maximum operating pressure	3 bar
Domestic Hot Water (DHW) flow	- l/min

Weight and Dimensions

Depth	240 mm
Width	450 mm
Height	650 mm
Weight	33000 g
