EOL connection types
The following EOL connections are used for different input types and EOL
values. See “Values for end-of-line resistors” on page 16 for more details.

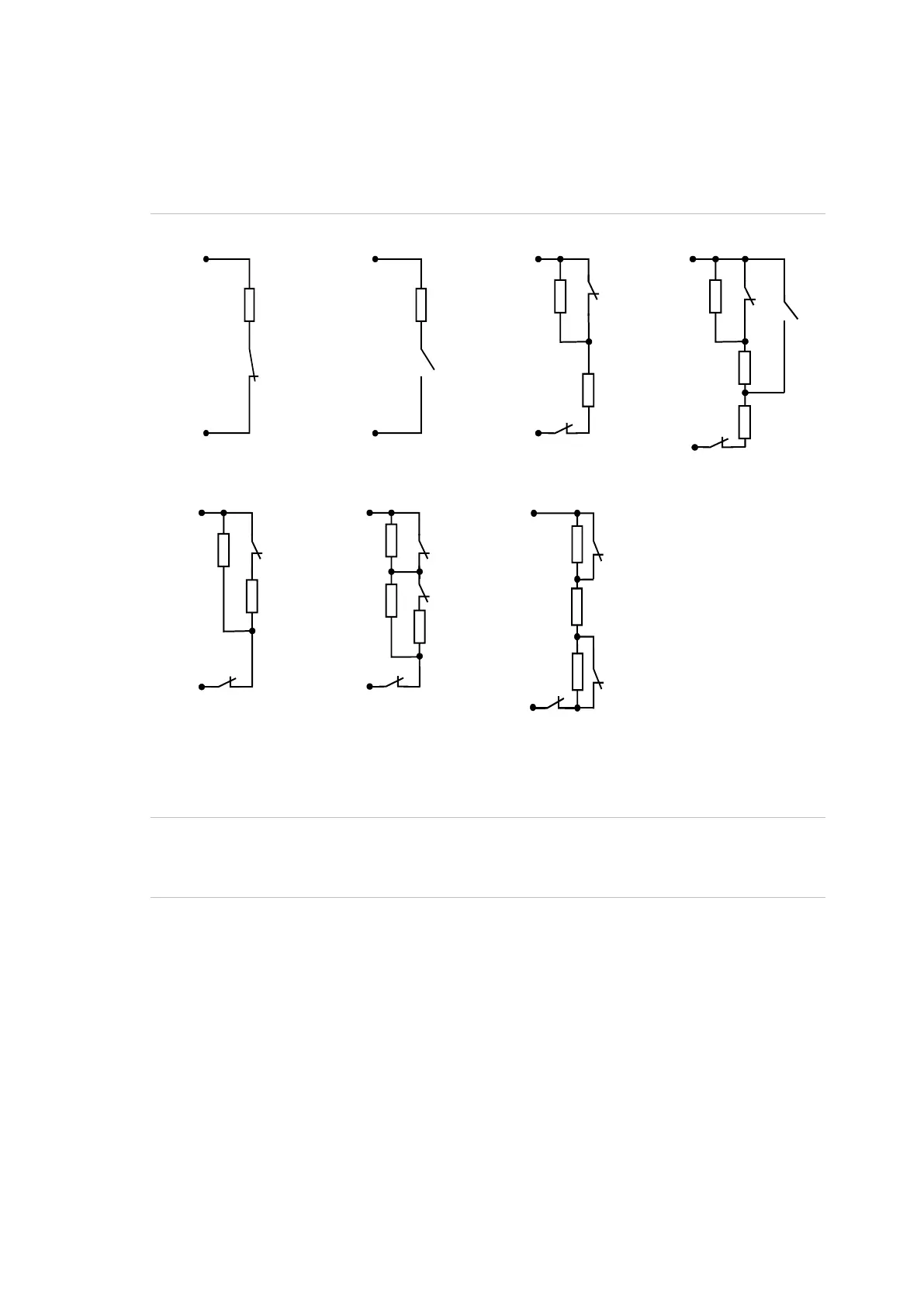

Figure 17: Connection type
(1) Single NC
(2) Single NO
(3) Dual A (default)
(4) Dual A with AM
(5) Dual B
(6) Dual C with AM
(7) Dual D with AM
A Alarm relay
T Tamper relay
F Fault / Anti-mask alarm relay
RA Alarm resistor
RT Tamper resistor
RF Fault / Anti-mask alarm resistor
Caution: When using connection types (4), (6) and (7), the antimask option of
the zone must be enabled. Other zones must have this option disabled. See
“4.1.n.6.6 Anti mask” on page 98.
