Chapter 2: Physical installation

12 TruVision DVR 12HD User Manual

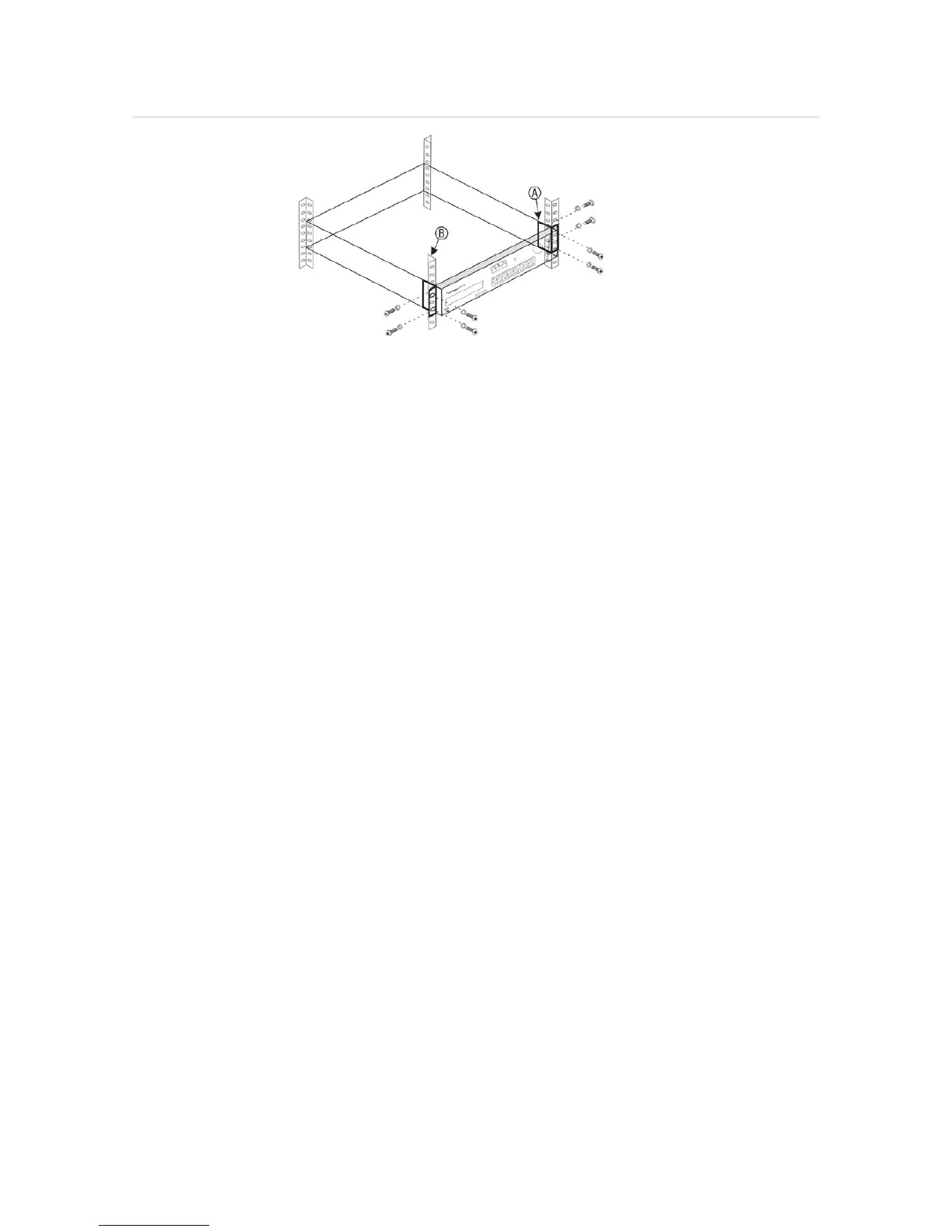

Figure 2: Rack-mount installation

To install the racks:

1. Attach the two small front-rack mount ears (A) to the recorder (supplied).

2. Attach the recorder to the front rails (B) (screws not supplied).
