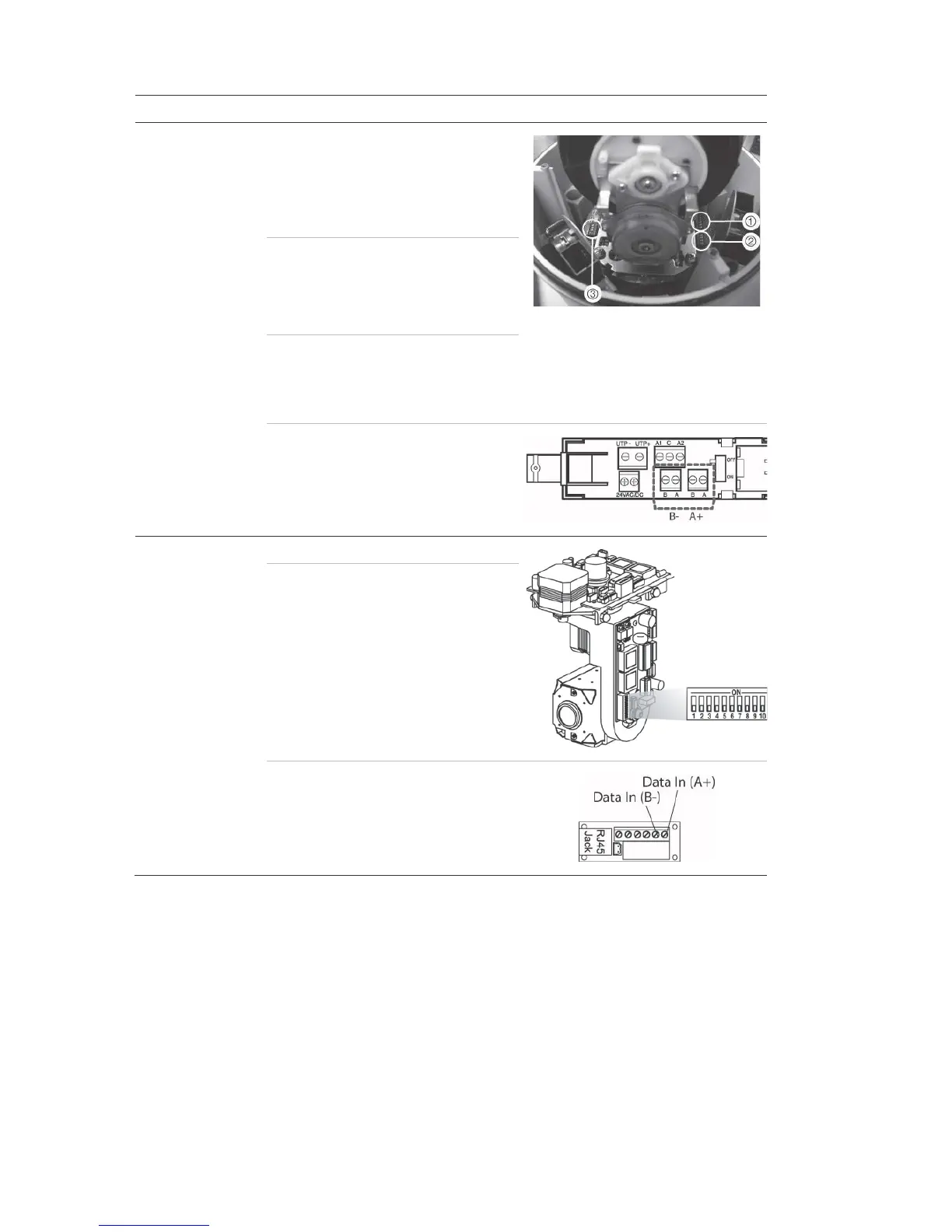

Appendix D: Connect a PTZ dome camera
140 TruVision DVR 12HD User Manual
Camera
Switch setting
TruVision Dome
16X PTZ
Protocol switches:
• RS-485 (on
recorder):
0111
1. Address switches; 2. Baud
switches;
3. Protocol switches
• RS-422 (on I/O
box):
1111
Address switches: Select the
camera ID
DIP switch
address as
required.
Baud rate: 0000 =
9600 bps
0011 =
4800 bps
RS-422/RS-485 data connector:
CyberDome
Protocol switches: NA
Address switches: Select the
camera ID
DIP switch
address as
required.
RS-485 data connector:
