Chapter 6: Playback functionality
TruVision DVR 12HD User Manual 37

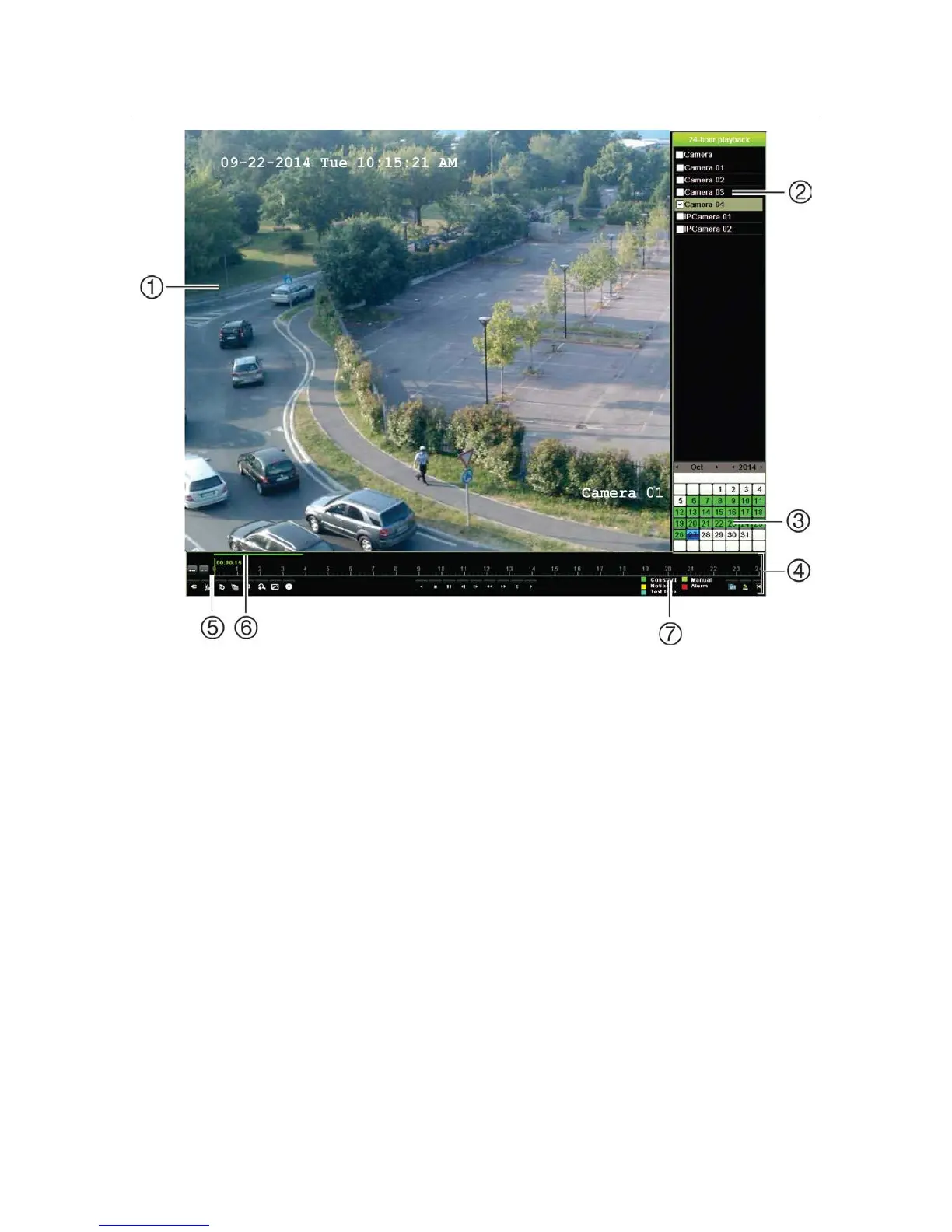

Figure 11: Playback window (24-hour playback shown)
1. Playback viewer.
2. Camera panel. Select the cameras for
playback. Move the mouse over the area to
display the list of cameras available.
3. Calendar panel.
Blue: Current date
Green/Yellow/Red: Recordings available
on the recorder.
4. Playback control toolbar. See Figure 12
on page 38 for more information.
5. Time bar: Time of actual playback. This is only
displayed in 24-hour playback.
6. 24-hour recording progress bar: This bar
displays how much of the 24-hour period has
been recorded.
7. Recording type: Description of the color coding
of recording types that appear in the playback
progress bar. Green indicates constant
recording. Red indicates alarm recording. Yellow
indicates motion recording. Pale green indicates
manual recording. Pale blue indicates text
The playback control toolbar
It is easy to manually control playback using the playback control toolbar. See
Figure 12 on page 38 below.
Note: The playback control toolbar does not appear for instant playback.
