Pan
Lock screw
Rotate
Tilt
7. Reattach the dome liner and enclosure.

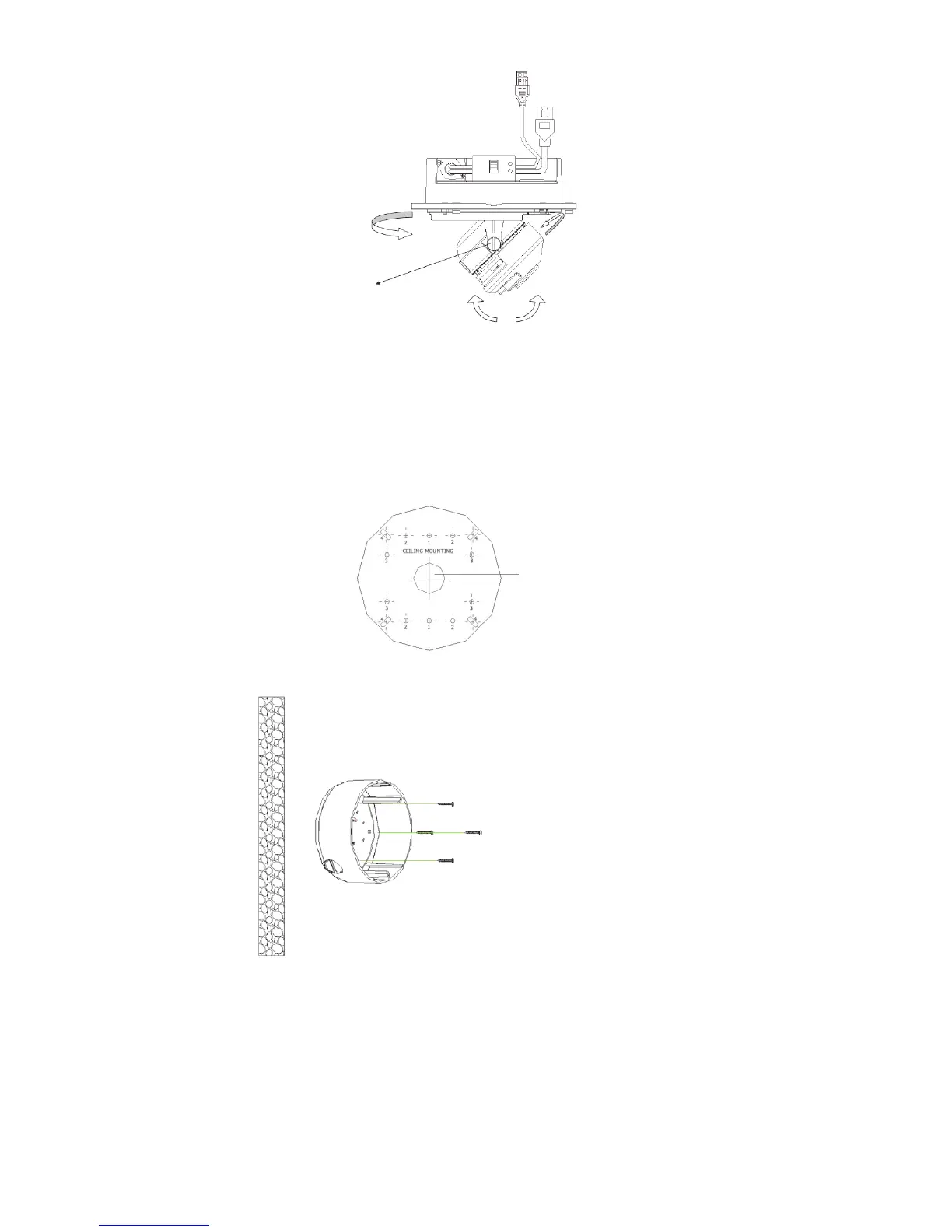

To mount the dome on a wall:
1. Use the supplied template to mark out the mounting area. Drill the screw
holes on the wall. If you need to route the cables from the camera base, cut
a cable hole in the wall.
Cable hole
2. Secure the housing to the wall with screws.
Note: Position the threaded side knockout facing downwards to prevent
moisture from entering the camera.
3. Loosen the screws on the dome enclosure (1) using the supplied hex
wrench and remove the enclosure and the dome liner (2).
