Installation Manual 13 EN

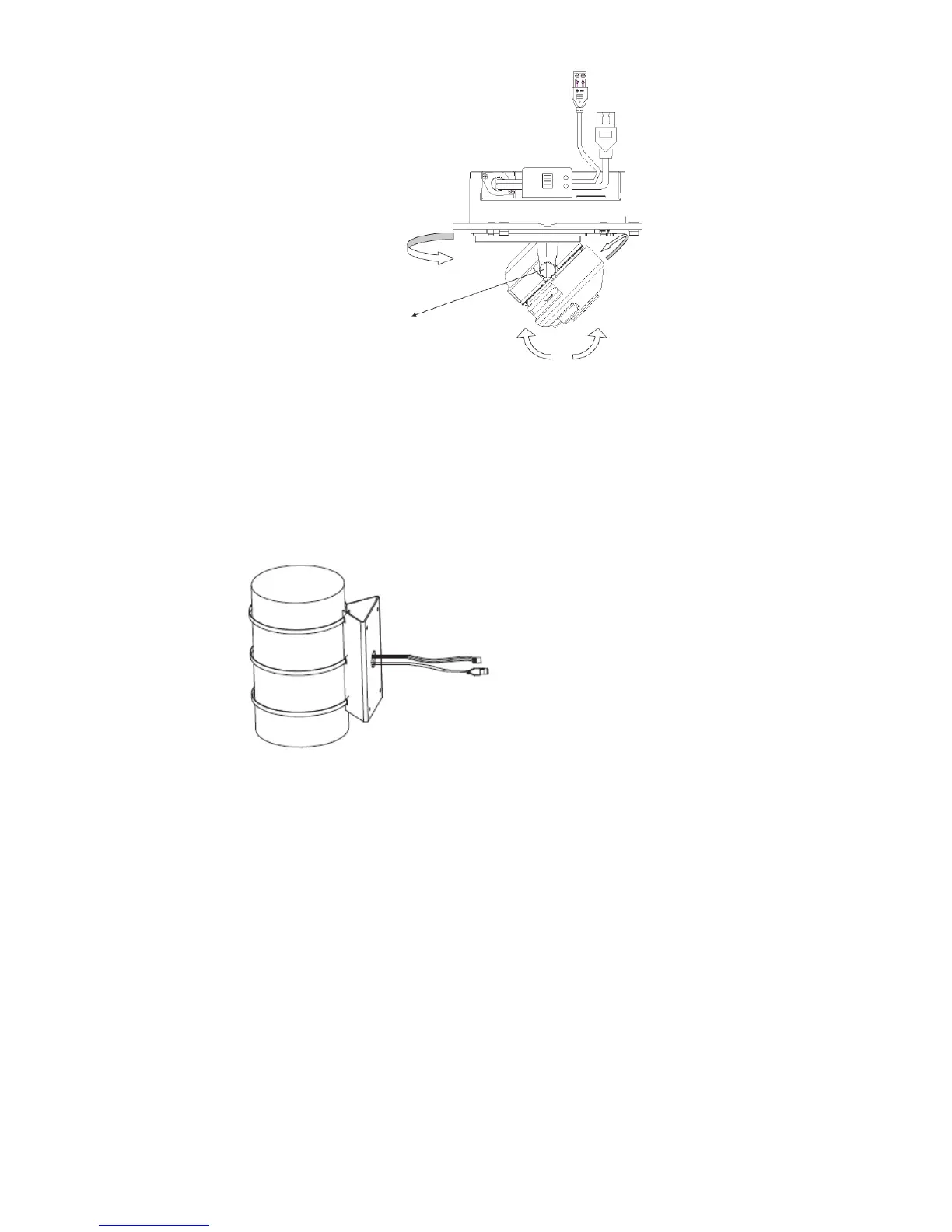

Pan
Lock screw
Rotate
Tilt
6. Reattach the dome liner and enclosure.
Mounting the bullet camera
To mount the camera on a pole:
1. Securely fasten TVD-M-PMA pole mount accessory to the pole at desired
mounting place, with cables prepared near to the camera.
2. Connect a Cat5e cable to the network cable, and connect a 12 VDC power
supply to the power cable.
3. Use TVD-M-PMA enclosed TM4*16mm screws to attach the camera.
4. Adjust the camera position and angle as required.
