Intermec EasyCoder PM4i Installation Instructions

8 Serial/Industrial Interface Kit Installation Instructions
Chapter 2 — Physical Installation
• Connect the console cable to J50 on the CPU board and put back the
cover over the electronics compartment. Take care so the console cable
runs above the ribbon motor (if any) and does not become entangled
in the headlift mechanism.
• Connect the communication cables to the connectors on the printer’s
rear plate.
• Connect the power cord and switch on the power.
• Enter the Setup Mode to set the proper communication parameters
for the serial communication channels "uart2:" and "uart3:".

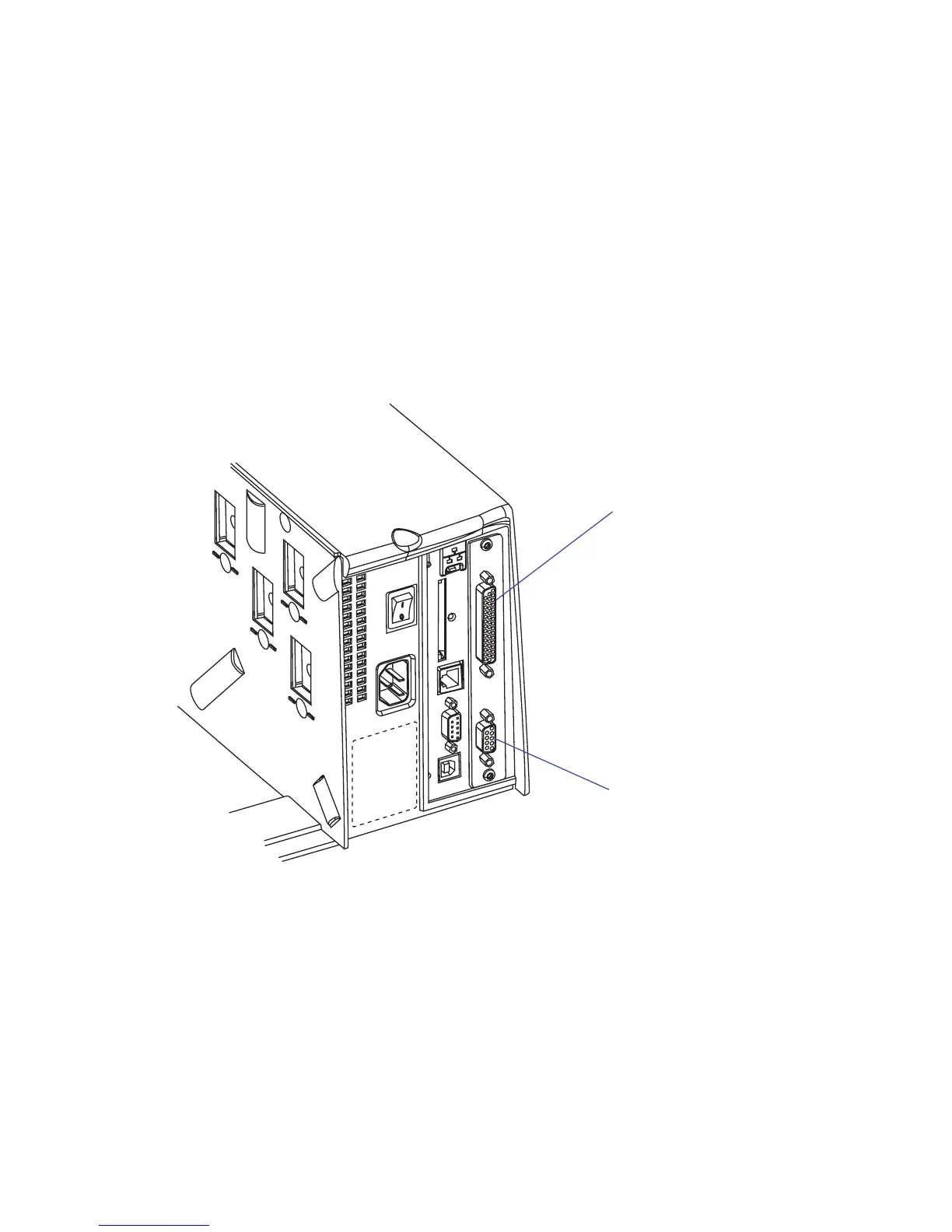

Serial interface
socket "uart2:"
Industrial interface
socket

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
