Intermec EasyCoder PM4i Installation Instructions

4 Serial/Industrial Interface Kit Installation Instructions
Chapter 2 — Physical Installation
EasyCoder PF2/4i Printers
• Switch off the printer and disconnect the power cord.
• Disconnect all communication cables.

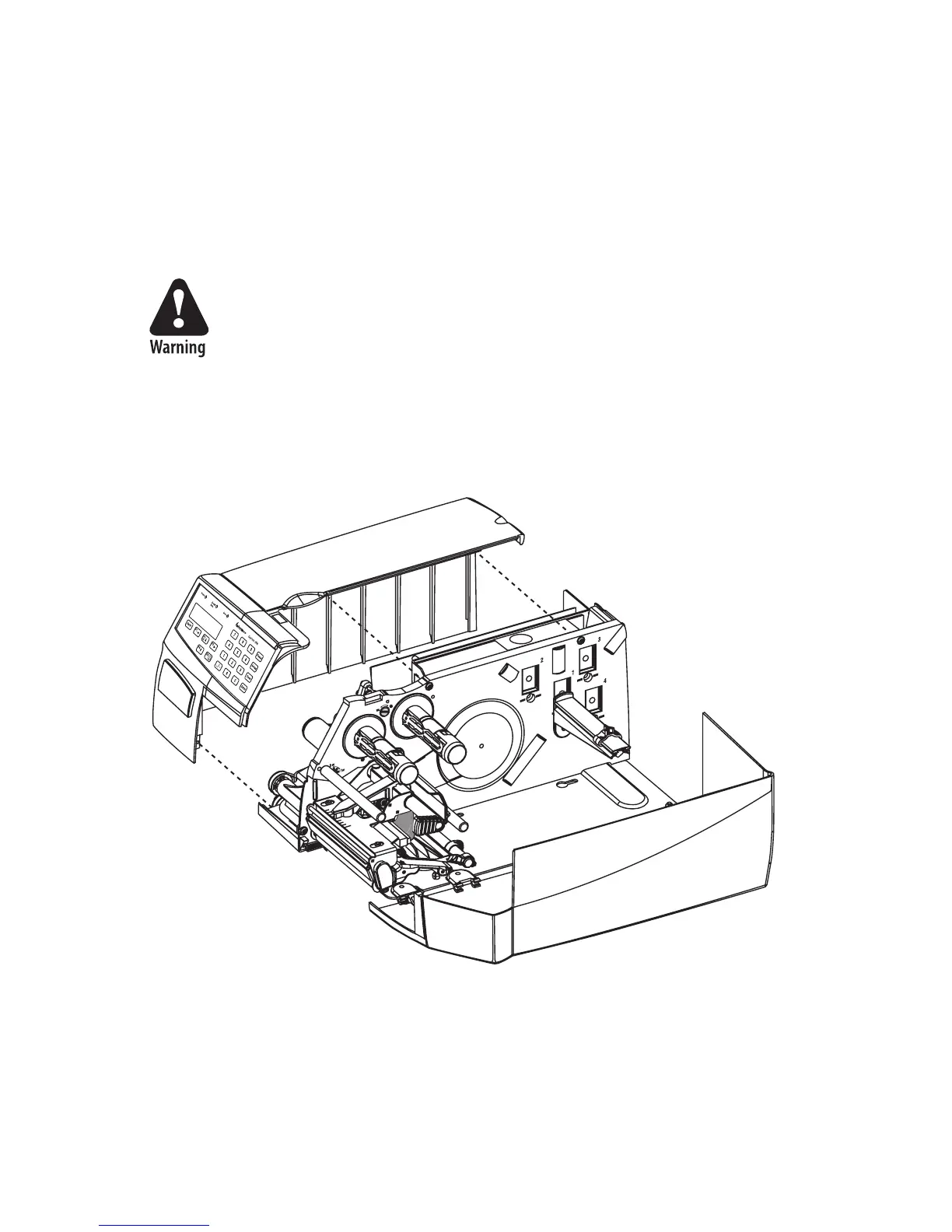

• Remove the front/left-hand cover as follows.
 e electronic compartment contains wires and compo-
nents with dangerous voltage (up to 380V). Make sure that
the printer is switched off and the power cord is discon-
nected before the left-hand cover is removed.
• Open the right-hand door.
• Using a #T20 Torx screwdriver, remove the three screws and lift the
cover up so it disengages the bottom plate.
• Swing out the rear part of the cover so you can disconnect the console
cable from the CPU board.
• Put the cover aside on a soft cloth or similar to avoid scratches.

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
