Intermec EasyCoder PM4i Installation Instructions

Serial/Industrial Interface Kit Installation Instructions 9
Chapter 2 — Physical Installation
EasyCoder PM4i Printers

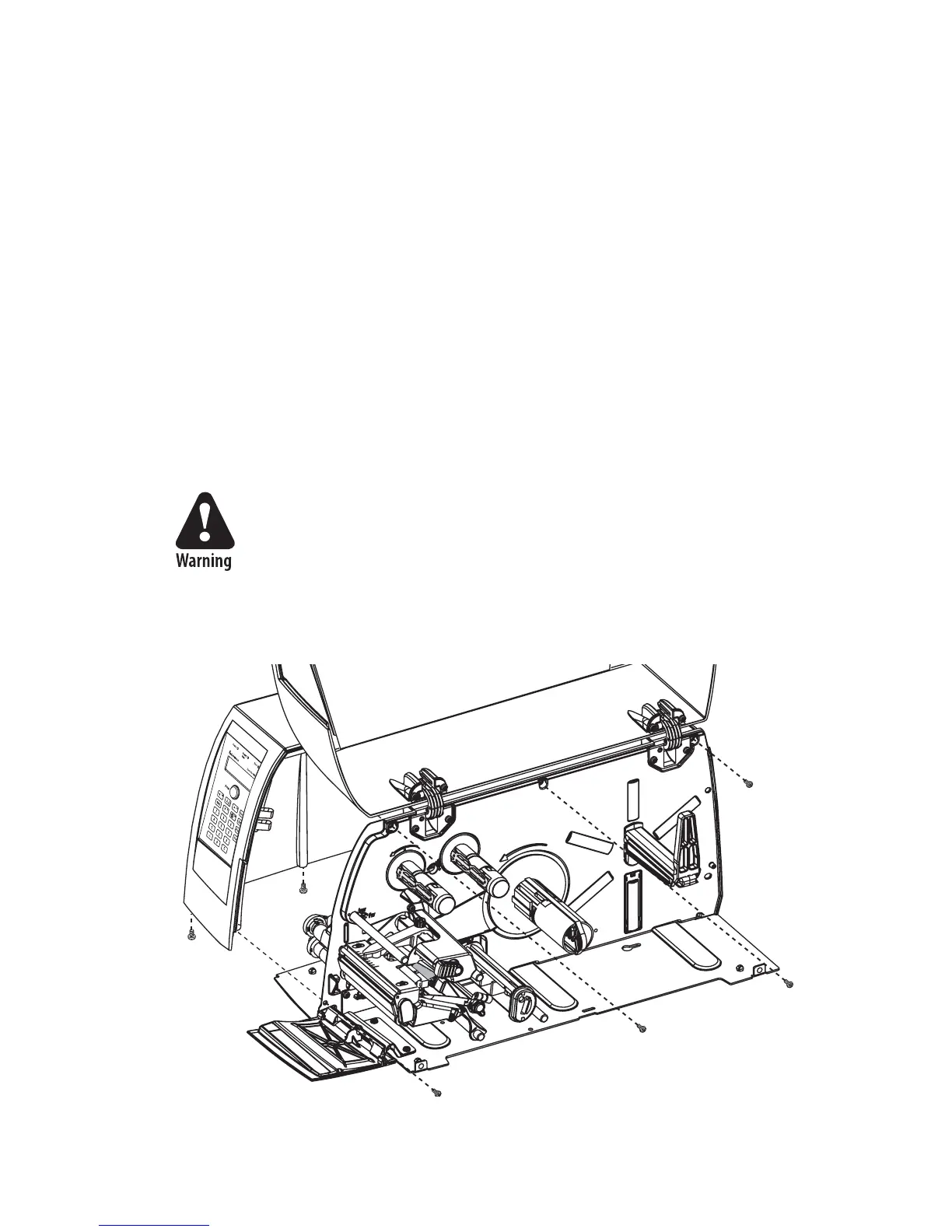

• Switch off the printer and disconnect the power cord.
• Disconnect all communication cables.
• Turn the printer over so it rests on its left-hand cover. Use a soft cloth
or similar to avoid scratches.
• Open the right-hand door.
• Using a #T20 Torx screwdriver, remove the four screws that hold the
cover along the lower left edge of the bottom plate and the four screws
that hold the cover to the center section.
• Put the printer back on its feet and remove the cover while discon-
necting the console cable from the CPU board.
 e electronic compartment contains wires and compo-
nents with dangerous voltage (up to 380V). Make sure that
the printer is switched off and the power cord is discon-
nected before the cover is removed.
• Put the cover aside taking care to avoid scratches.

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
