Intermec EasyCoder PM4i Installation Instructions

Serial/Industrial Interface Kit Installation Instructions 23
Chapter 3 — Serial Interface
Connector Confi guration (RS-422 Isolated on "uart2:", "uart3:", or
"uart4:")
DB-9 socket Signal Meaning
1 External +5VDC max 500 mA (automatic switch-
off at overload, short-circuit protected) provided
strap is fi tted on J2:A which spoils the galvanical
isolation
2 +TXD +Transmit data
3 +RXD +Receive data
4–
5 GNDE Ground
6-
7 -RXD -Receive data
8 -TXD -Transmit data
9–

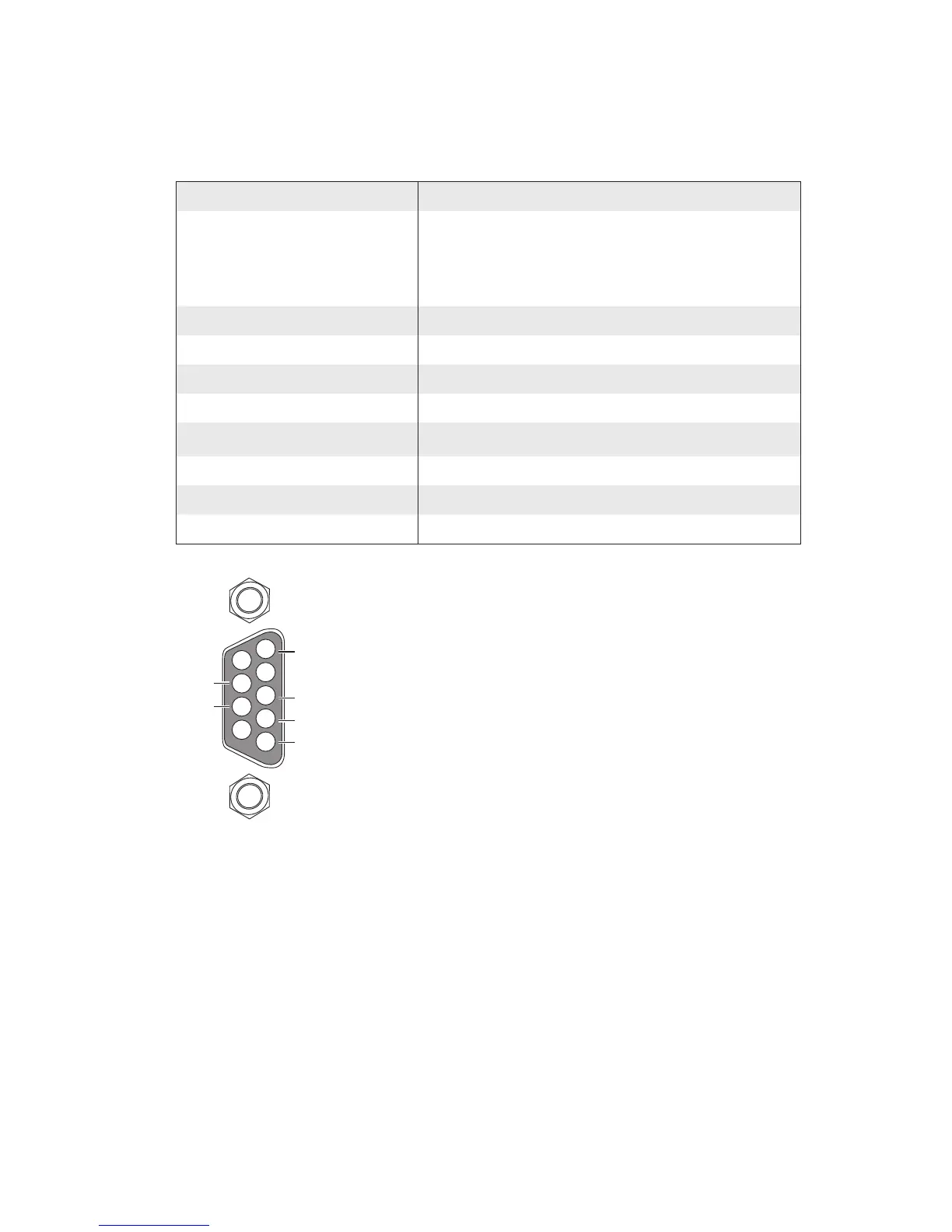

RS-422 socket as seen from the outside.
4
5
3
2
1
8
9
7
6
+TXD
+5V (0.5 A)
if GND strap
fitted
+RXD
GNDE
-RXD
-TXD

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
