Intermec EasyCoder PM4i Installation Instructions

4
5
3
2
1
8
9
7
6
+DATA
+5V (0.5 A)
if GND strap
fitted
GNDE
-DATA

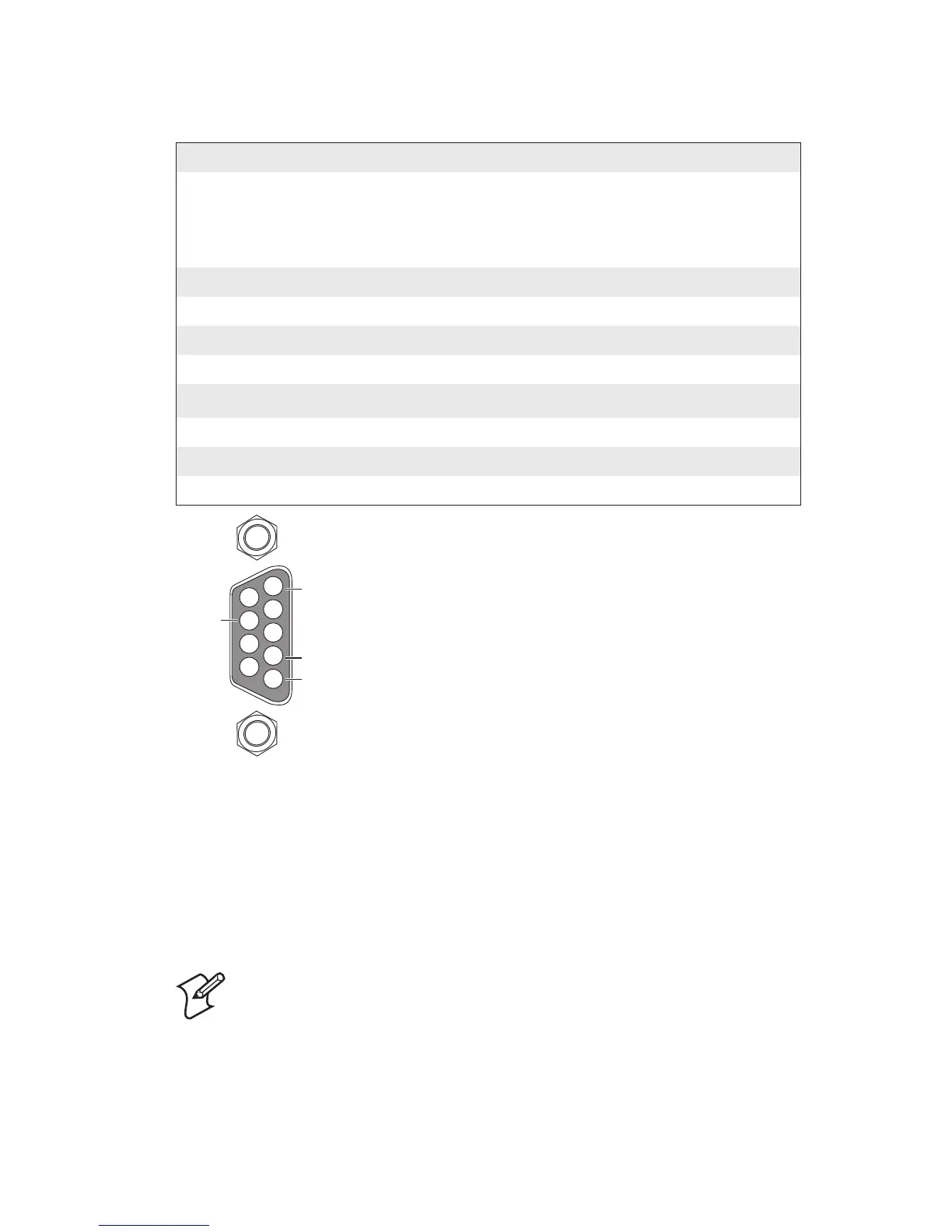

Serial/Industrial Interface Kit Installation Instructions 25
Chapter 3 — Serial Interface
Connector Confi guration (RS-485 Isolated on "uart2:" only)
DB-9 socket Signal Meaning
1 External +5VDC max 500 mA (automatic switch-
off at overload, short-circuit protected) provided
strap is fi tted on J2:A which spoils the galvanical
isolation
2 +DATA
3–
4–
5 GNDE Ground
6–
7–
8 -DATA
9–
Note:  e increased use of LAN networks has made the RS-
485 interface somewhat obsolete, because RS-485 requires a
special communication protocol and a dedicated wiring system
limited to 1,200 m (4,000 ft). We only recommend RS-485
for existing applications and advice the customer to consider a
LAN network solution for new applications.
RS-422 socket as seen from the outside.

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
