3. Machine Height Adjustment
Machine Height Adjustment Requires Raising The Machine To Adjust Each Leg. Please
Follow All Possible Safety Procedures Prior To And During This Process
The Carton Sealer must be installed on near level ground. Use the adjustable legs to ensure
that the machine is level and firmly on the ground (no rocking). Adjust the leg height with the
four (4) telescopic extension legs to accommodate conveyor heights from 24 to 30 inches.
To adjust the
Case Sealer
height, lift the
machine to give
ample room to
extend the legs.
Using a 19 mm
box end wrench,
loosen the eight
(8) 12mm hex
head bolts.
Adjust the legs to
the desired
conveyor height
and re-tighten
the bolts.

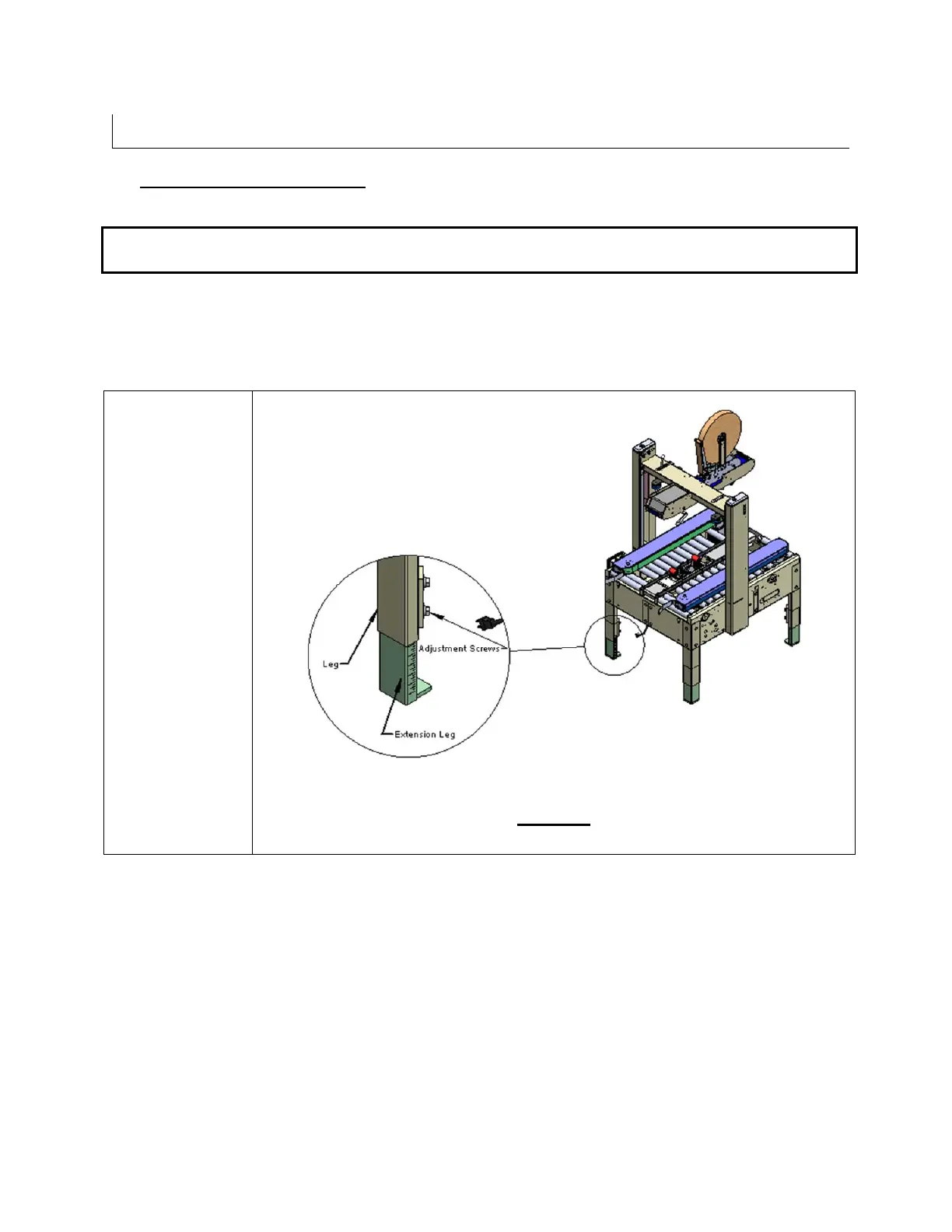

Etched lines on
the legs ease
leveling.
Figure 8
