UM094TW / UM594TW UDM094-04
24
S
ET
-U
P
P
ROCEDURES

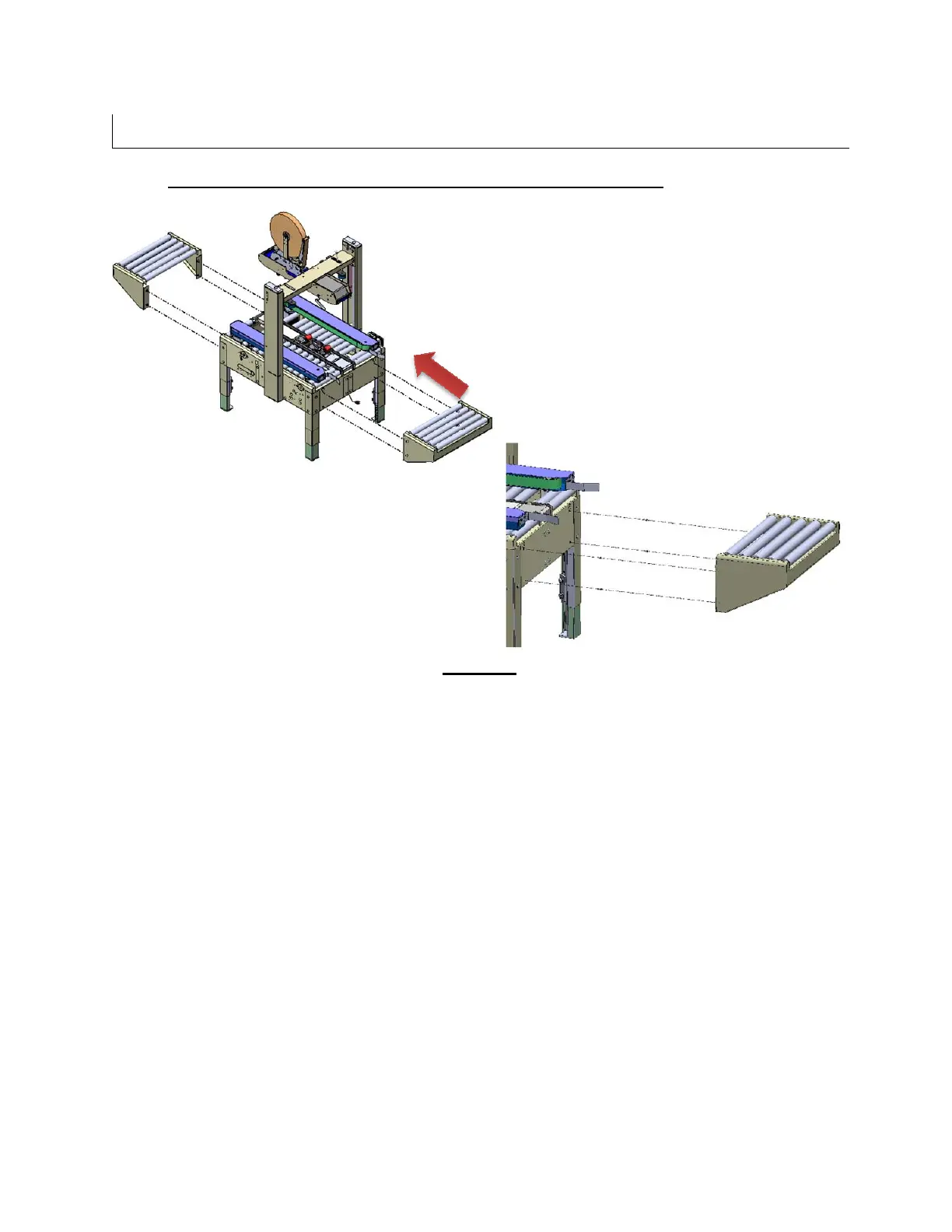

4. Installation of Interpack Brand In-Feed and Exit Roller Tables (If Purchased)
Figure-9
a. Install Four (4) Mounting Studs Into Machine Base With Hardware Included With
Roller Table. Per
Figure-9
.
b. Utilizing The Slots In The Roller Table, Attach Roller Table To Machine Base By
Locating Mounting Studs In Slots On Roller Table And Push Down To Lock In Place.
Case Direction
To Next Page
