UM094TW / UM594TW UDM094-04
29
S
ET
-U
P
P
ROCEDURES

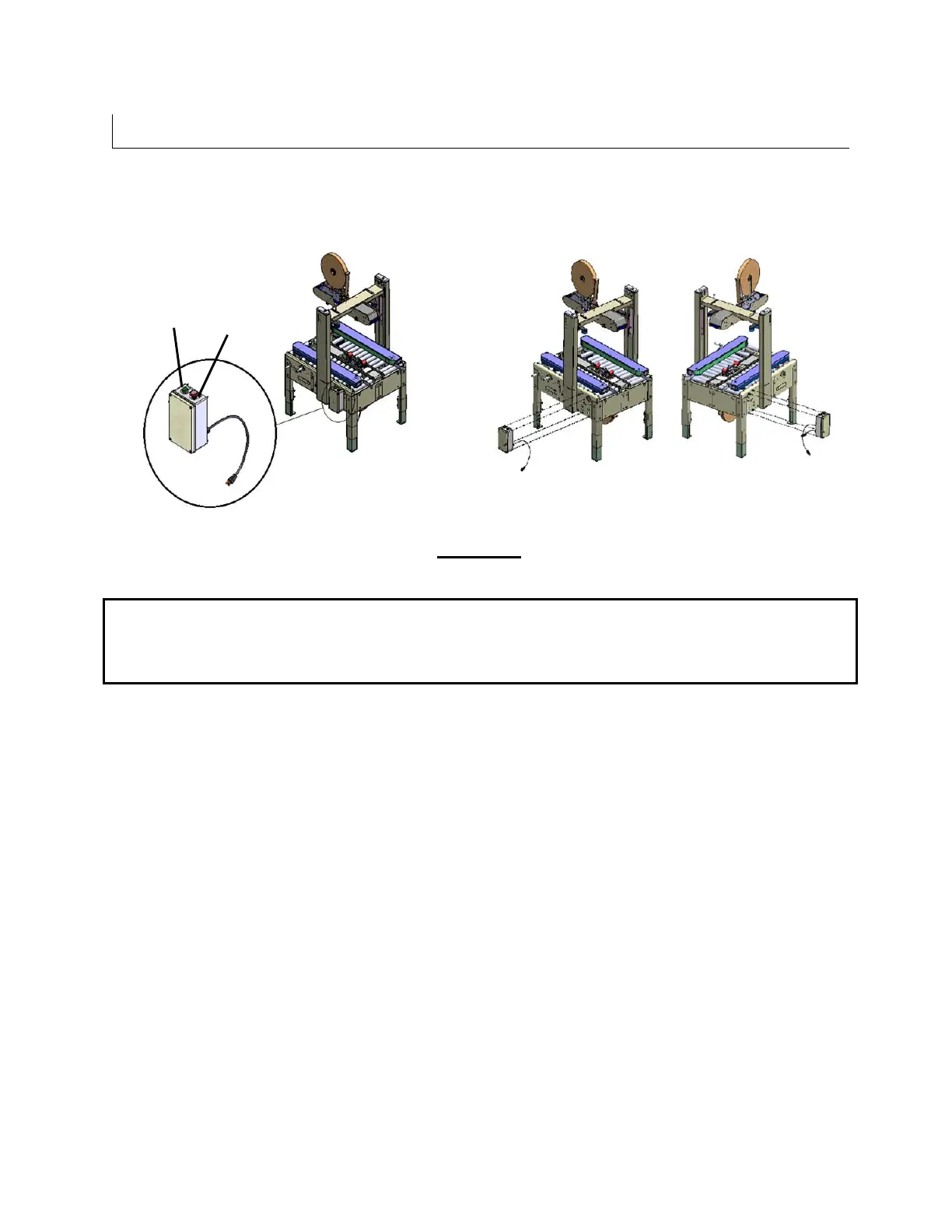

Re-Locating Electrical Control Box
Figure-15
Moving the control box to the opposite side of the machine requires disconnecting and
reconnecting electrical wires and components. Only trained and qualified service
technicians should access an open control box. Please Follow All Possible Safety
Procedures Prior To And During This Process
a. Disconnect machine from electrical supply.
b. Remove Cover.
c. Note the position of the wires to be disconnected to allow for re-location.
d. Disconnect wires from motor starter.
e. Disconnect ground Wires.
f. Remove Lock Nut from Strain Relief (2) inside Electrical Control Box.
g. Remove Strain Relief (2) and wires from Control Box.
h. Remove Control Box and Re-Locate to Opposite Side.
i. Route wires (3) to opposite side of machine.
i. Remove wire ties holding wires under machine.
ii. Re-locate wires to re-positioned control box.
iii. Install new wire ties to secure wires to machine base.
j. Insert Strain Reliefs (2) and wires into Control Box.
k. Re-Install Strain Relief Lock Nuts (2).
l. Re-Connect wires to Motor Starter.
m. Re-Connect ground Wires.
n. Re-Install Cover.
Start
E-Stop
