UM094TW / UM594TW UDM094-04
33
SET-UP PROCEDURES
12. Tape Threading

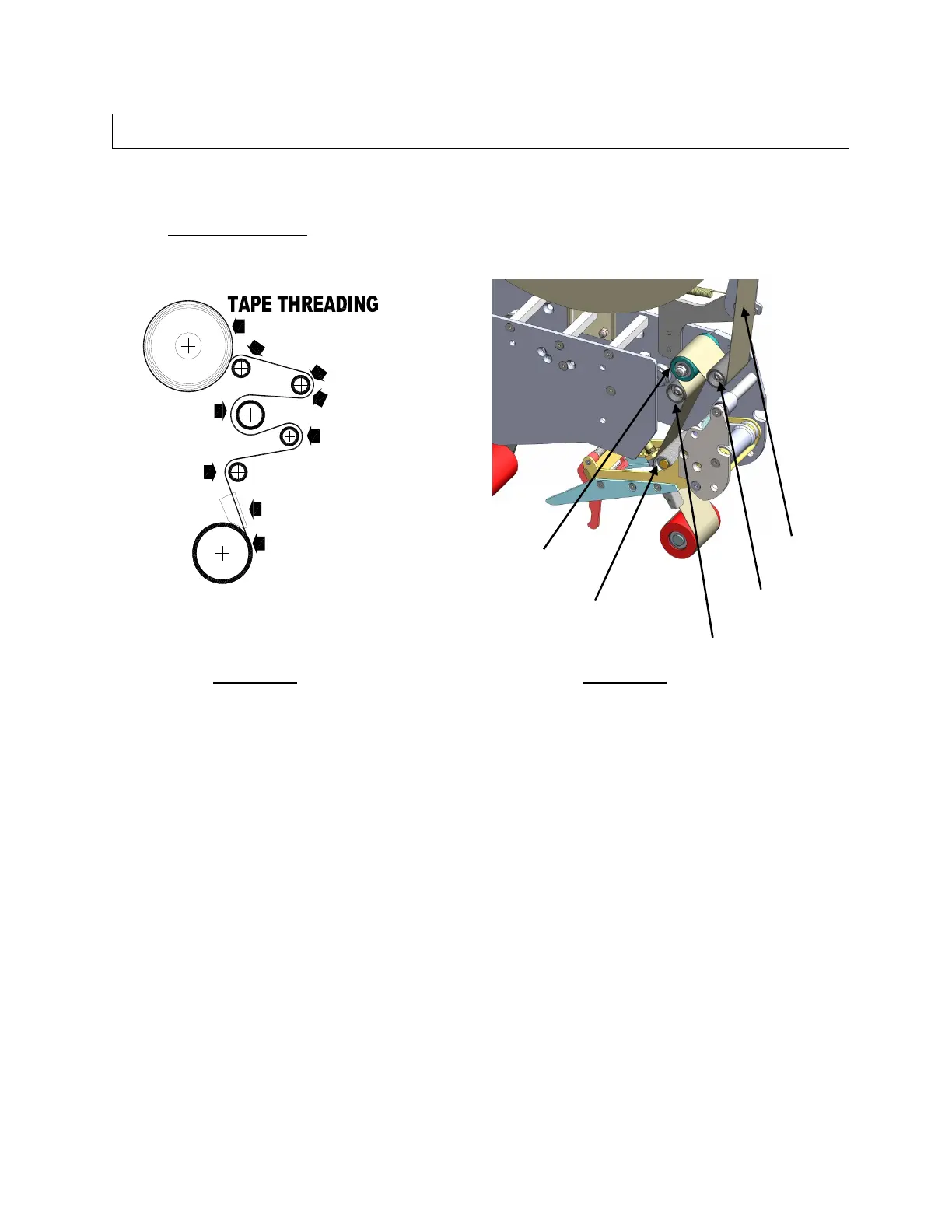

Figure-20 Figure-21
1. As Illustrated In
Figure-20, First Thread The Tape Tail Over The Peel Off Roller.
2. As Illustrated In
Figures-20 And 21 Thread The Tape Over And Around The First
“Smooth” Guide Roller.
3. Continue To Thread The Tape Over And Around The “Knurled” Clutch Roller.
4. Then Pass The Tape Up And Over The Second “Smooth” Guide Roller.
5. Continue Threading The Tape Over And Behind The Final “Knurled” Guide Roller.
6. Thread The Tape Through The Cut-Out Provided In The Tape Guide Shoe And Pull The
Tape Through The Front Application Roller, Ensuring That The Tape Is Retained In The
Tape Guide Shoe
7. Cut Off The Folded Tape.
8. Replace The Tape Head To Its Initial Position In The Machine.
Adhesive
Side
Guide Roller
Clutch Rolle
ROLLER
GUIDE
ROLLER
CLUTCH
APPLICATION
TAPE GUIDE
ROLLER
SHOE
GUIDE
ROLLER
ADHESIVE SIDE
TAPE ROLL
GUIDE
ROLLER
PEEL OFF ROLLER
Guide Roller
Knurled Guide
Rolle
To Next Page
