Installation
Red Sonar Engine Box
The Sonar Engine Box can be mounted in a convenient
location in the engine room, below decks, in a cabinet,
etc. It only needs accessibility for initial installation and
when/if you perform a software upgrade.
1) Select a location where the unit is protected from
excessive temperatures. Heat is one of the worst enemies
of electronic components, and will accelerate component
aging, thereby reducing the trouble-free life of your SE-
200.
2) Mount the SE-200 Sonar Engine box in a location
where it will be convenient to route the power cord and
transducer cable.
Connecting Transducer(s)
The SE-200 red sonar box has a black & white label on
the top. Looking down from the top of the box, there are
three 9-pin transducer connectors on the left end of the
box and several output connectors, a power I/O cable and
LED on the right end.

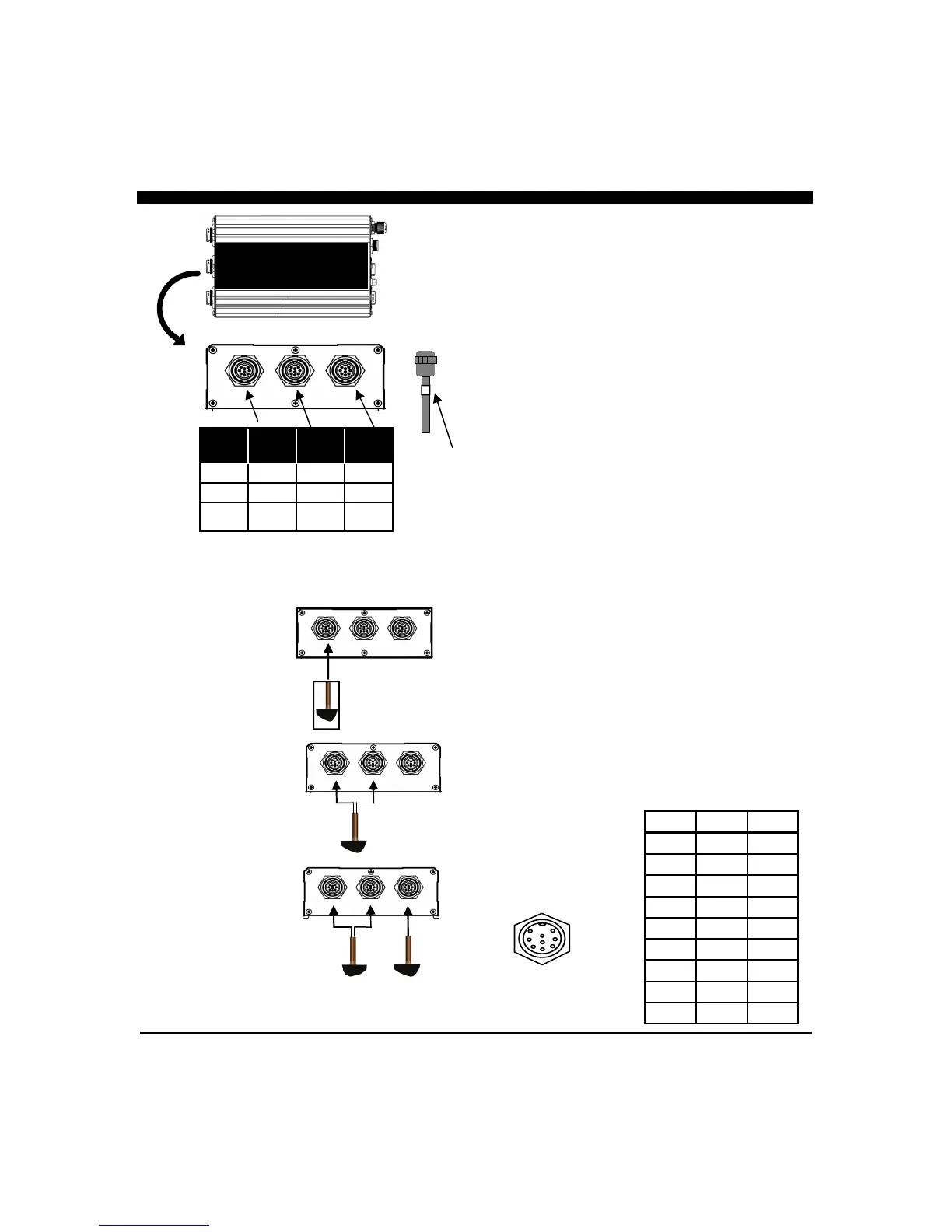

The sketch at right shows the three 9-pin transducer con-
nectors that are located on the left end panel. The three
connector retaining nuts are different colors which match
the color band on the correct transducer cable.
Notice that the vertical transducer cable always plugs into
the green connector. The SE-200A transducer has a
single vertical scan cable, so the blue and black connec-
tors are not used. The diagrams below at right show the
transducer connections for the various SE-200 configura-
tions.
9 Pin Transducer Cable
Connectors:
(view from front of female
plug)
PIN WIRE WHAT?
1 WHITE 1st Ele
2 Brown 2nd Ele
3 Orange 3rd Ele
4 Yellow 4th Ele
5 Green 5th Ele
6 Blue 6th Ele
7 Violet 7th Ele
8 Gray 8th Ele
9 Shield Ground
MODE
L
GREEN
NUT
BLUE
NUT
BLACK
NUT
SE-200A Vertical N/A N/A
SE-200B Vertical Horizontal N/A
SE-200C Vertical Starboard
Horizontal
Port
Horizontal
COLOR
BAND ON
TRANS-
DUCER
CABLE
SE-200A
SE-200C
SE-200B
Starboard
Transducer
Port
Transducer
Single Thru-Hull or
Two Transom Mount
Transducers
Transom or
Thru Hull
Transducer
To Next Page
