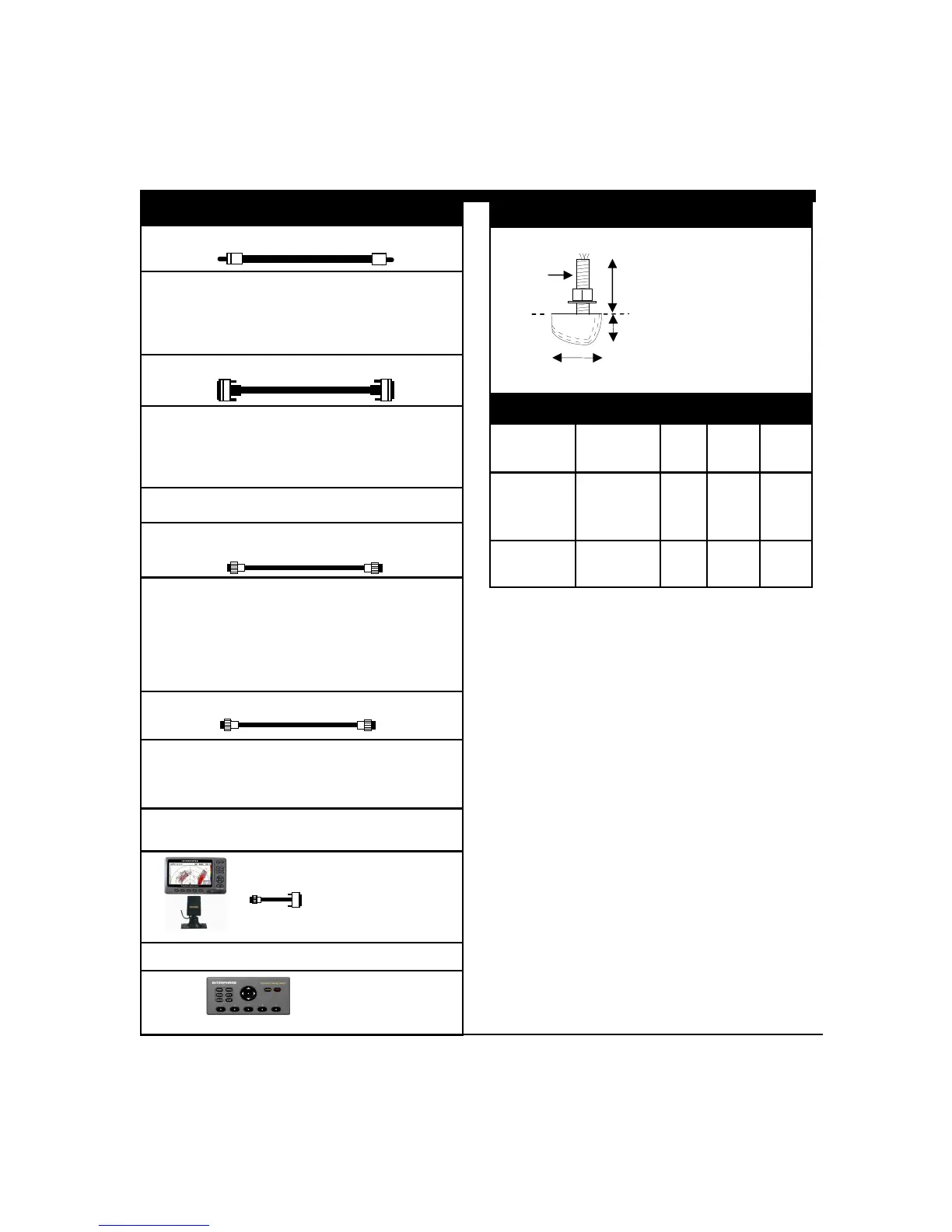

ACCESSORIES
VIDEO CABLES (RCA Style)
25’ Male-Male 04-1088-000R
100’ Male-Male 04-1093-000R
Video Splitter
Female to (2) Males
04-1094-000R
VGA CABLES (15-pin)
25’ Male-Male 04-1089-000R
100’ Male-Male 04-1090-000R
VGA Splitter
Female to (2) Males
04-1092-000R
KEYPAD CABLES
6-Pin Mini Din
30’ Extension
Female to Male
04-1084-000R
100’ Extension
Female to Male
04-1085-000R
Keypad Splitter
Female to (2) Males
04-1080-000R
TRANSDUCER EXT. CABLES
U1-SCAN-VGA
(Includes
10’ 9-Pin to VGA Adapter
Cable)
KEYPAD
(With 10’ Cable)
23-1015-000
30’ 9-Pin
Male to Female
10’ 9-Pin
Male to Female
INTERPHASE 7” DISPLAY
(With Integral Keypad)
04-0014-008
04-0014-007R
VGA/Keypad Splitter
(For Interphase Display)
04-1095-000R
TRANSDUCER DIMENSIONS
USED IN MODEL TRANSDUCER(S) LENGTH DEPTH WIDTH
SE-200B Thru-Hull
SE-200B Transom
T1-I200-032
T1-I200-025
T1-I200-028
5”
5”
5”
2.35”
2.8”
2.8”
4.0”
2.3”
2.3”
SE-200C Thru Hull T1-I200-035
T1-I200-036
7”
7”
3.0”
3.0”
4.0”
4.0”
SE-200A Thru-Hull
SE-200A Transom
T1-I200-026
T1-I200-025 5” 2.8” 2.3”
D
L
6
• Thru-Hull transducers
have 30’ cables.
• Extension cables
available.
Bronze
1.03”
