Depth Ranges: Depth ranges, 0 - 25 to 0 - 600feet
Forward Ranges: Forward ranges, 0 - 50 to 0 - 1,200 feet
Transmit Frequency: 200 kHz
Transmite Power: Approx. 450 RMS or 3,600 peak-to-peak Watts
Transmit Beam Angle: Approx. 12 degrees
Pulselength & Sounding Rates: Automatically optimized for selected range.
Power Requirements: 11 to 16 VDC, less than 0.5 Amp.
Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
NMEA 0183 Inputs: GLL, VTG
NMEA 0183 Output DBT, DPT
Standard Equipment: Red sonar box, keypad with 10’ cable, 10’ video cable, 10’ VGA cable
and transducer (transducer model dependent on version).

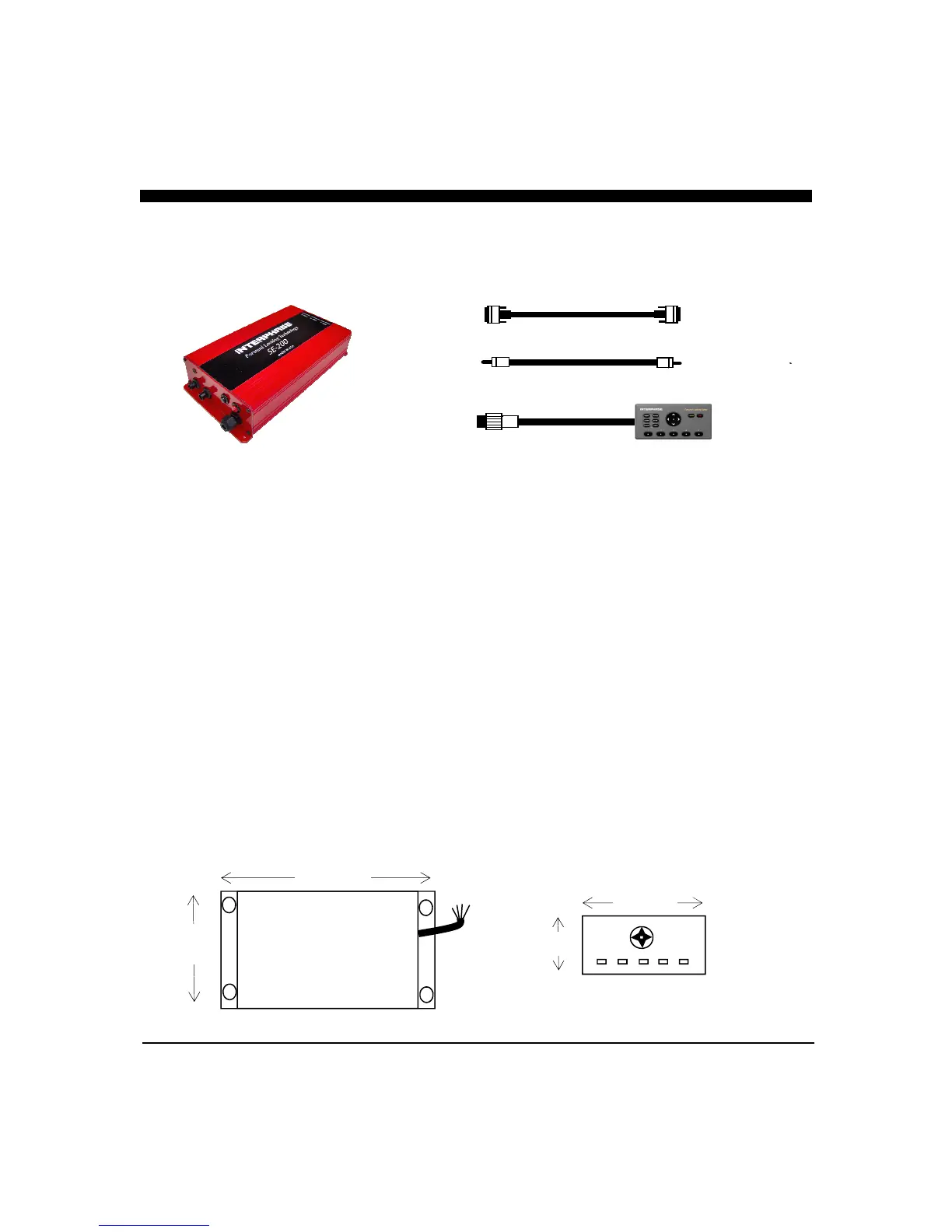

Specifications
9” / 229mm
SE-200
(2”, 50.8mm deep)
5”
127 mm
5.5” / 140mm
2.75”
70 mm
(1”, 25.4mm deep)
10’ VGA CABLE, 15 pin sub-D, Male to Male
KEYPAD W/10’ CABLE—6PIN Mini Din
12’ VIDEO CABLE, RCA, Male to Male
SONAR ENGINE
