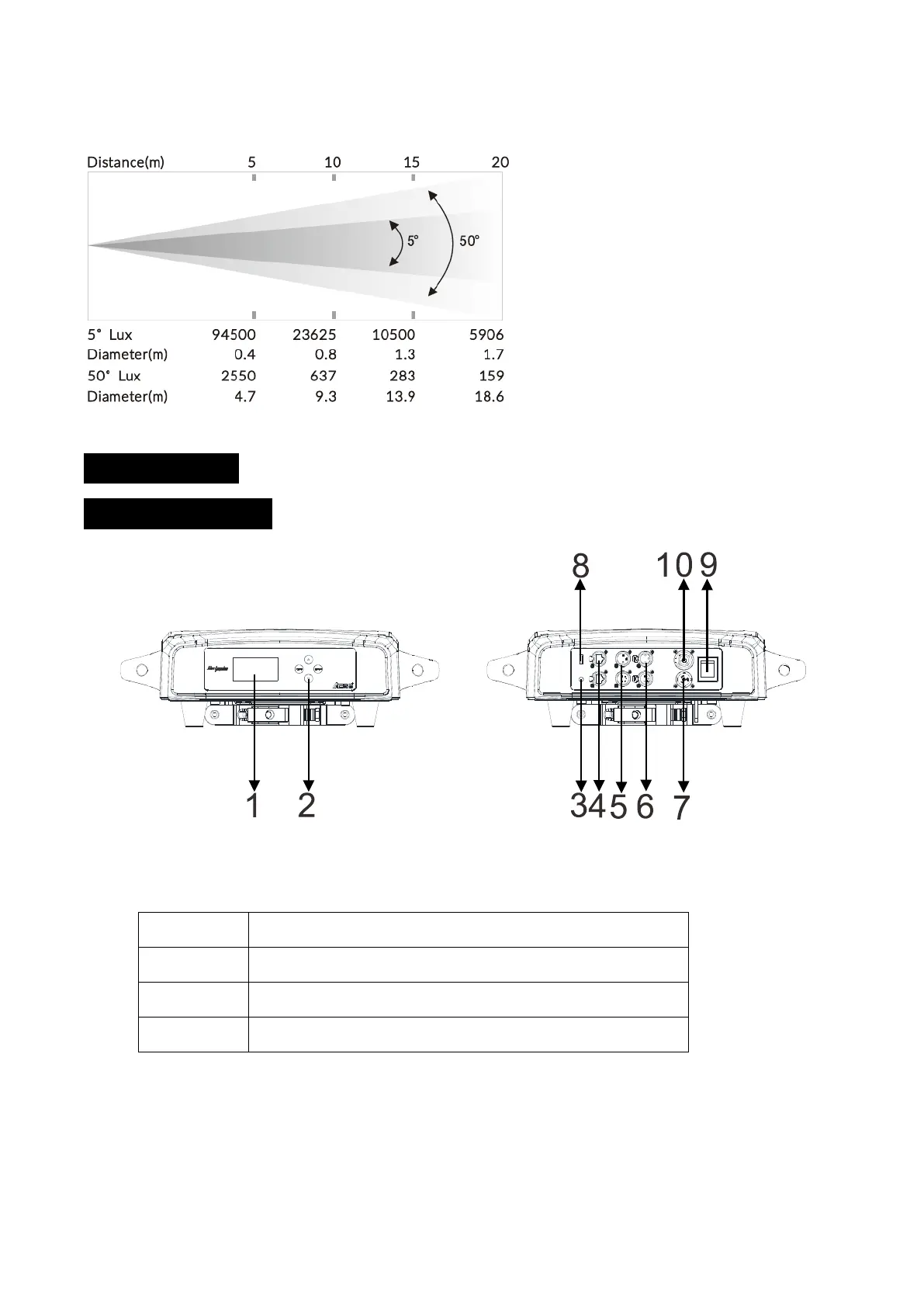

Photometric Diagram:

3. Description

3.1 Control Panel

1. Display: To show the various menus and the selected function

2. Button:

To enter into move backward or leave the menu

To go backward to move up in the menu

DOWN

To go forward to move down in the menu

ENTER

To perform the desired functions

3. BATTERY DISPLAY

4. ETHERNET: Transfers fixture’s information to a main controller

5. DMX IN: For DMX512 operation, u s e 3/5 -pin XLR plug cable to link the units together

6. DMX OUT: For DMX512 operation, use 3/5-pin XLR plug cable to link the units together
