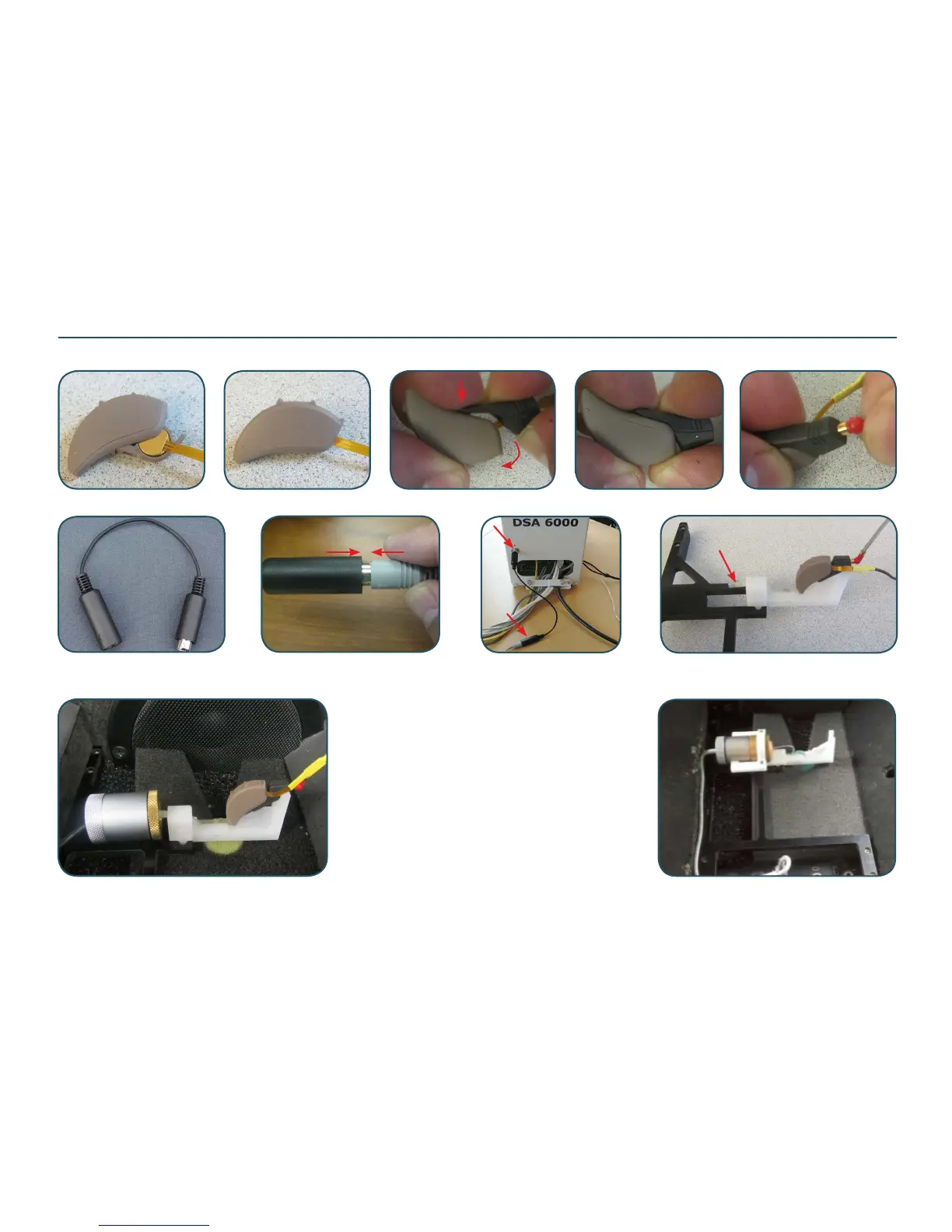

HI Testing
Important note: An extension prog cable must be used during nal HI test due to the current measur-
ing. Connect prog cable to the extension prog cable and connect extension cable to the DSA6000
Pull out the rec tube. Open the batt door as described on the previous page and insert the batt pill. Connect the prog adapt and prog cable to the HI
Insert the test rec into HI and attach the HI
to the white xture (2 pin rec is shown)
Test Rec (NP)
p/n 17460000
Extension
prog cable
Mount the 2cc coupler to the TM12 coupler mic. Attach
the brass adapt to the 2cc coupler. Insert the 2 pin test
rec to the brass DSA adapt (the 3 pin test rec is already
inserted a DSA adapt). Attach the xture to the black test
frame and place it all in the test chamber as shown. Se-
lect the correct test prog and make sure to follow instruc-
tions coming up on the screen
ATC4000 sound chamber prepared
for test of HI with 2 pin rec
Please see page “Test Equipment (3 pin)” for info
about test parts to be used for 3 pin rec models
ATC4000 sound chamber prepared
for test of HI with 3 pin rec
