Replacing Receiver Tube

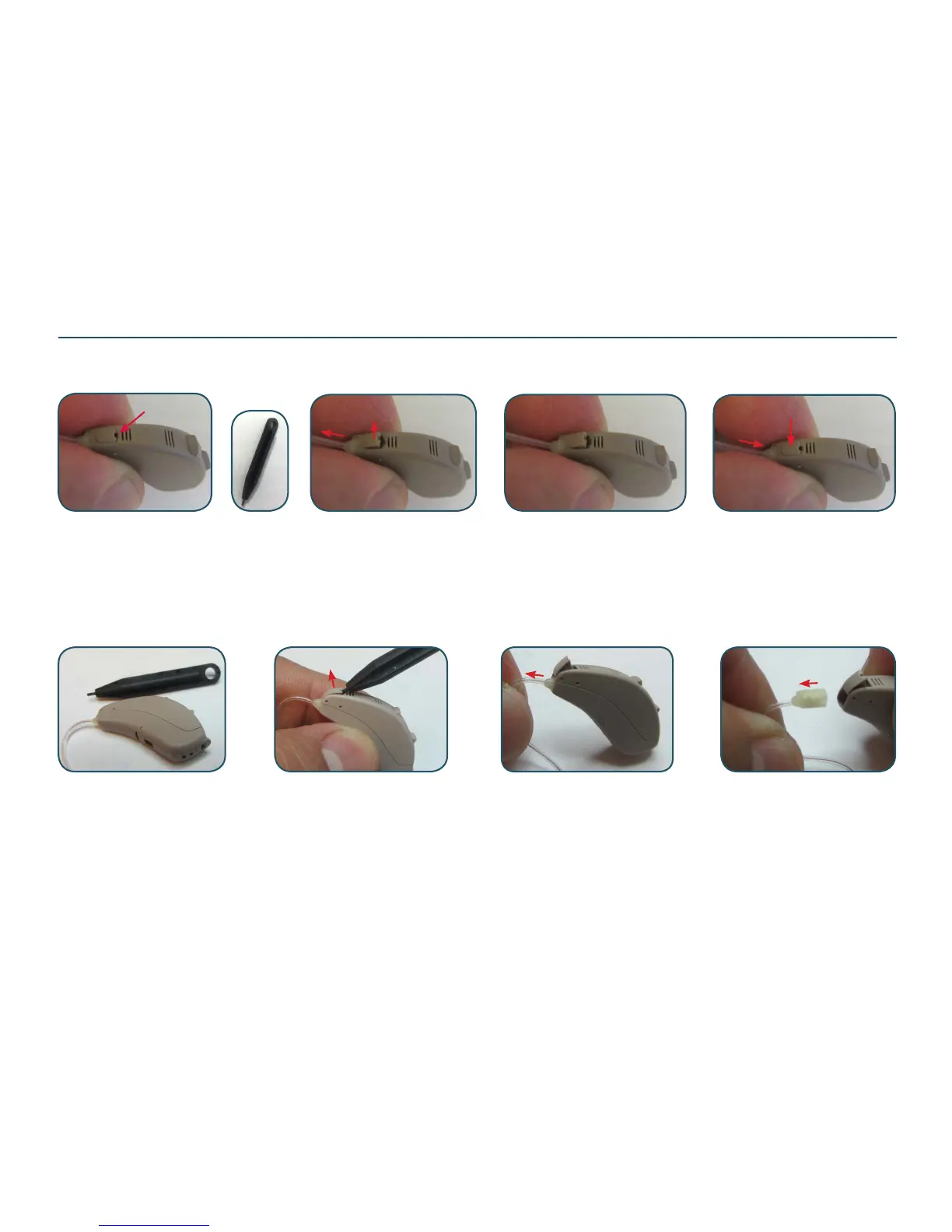

The connector lock is holding the rec tube in place. Lift it up using the plastic mandrel and pull out the rec tube. Push in a new rec tube and make sure
it is correct in place. Press down the conn lock to x the rec
CRISP & SHARE:
STEP:
The connector lock is mounted to the top HSG together with the TGL. It is holding the rec tube in place. Lift up the conn lock using the mandrel and
pull out the rec tube. Push in a new rec tube and make sure it is correct in place. Press down the conn lock to x the rec. If the conn lock is damaged,
a new assembled top HSG must be mounted
Note:
Receiver test tpix available on GTO web site
