SETUP INSTRUCTIONS (continued)

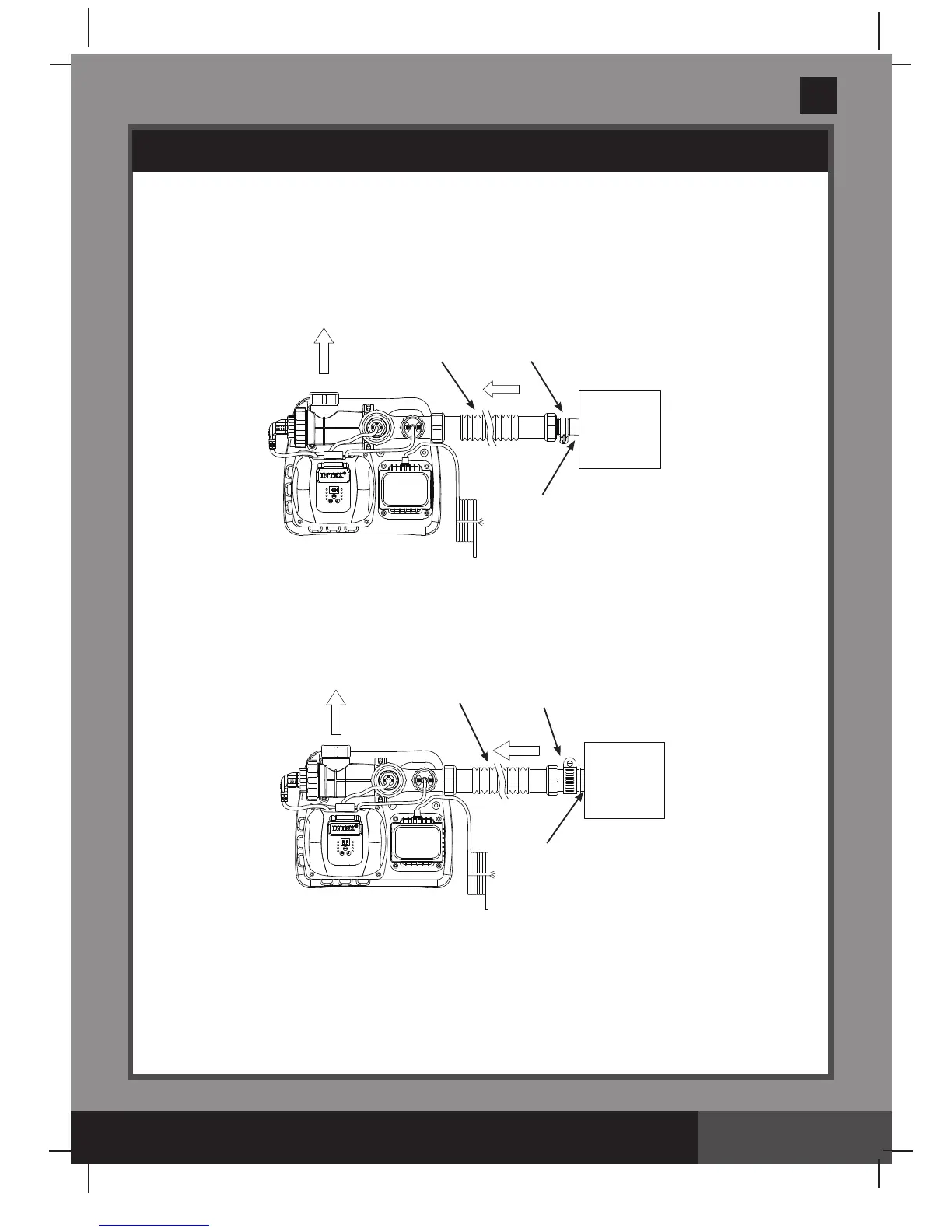

Connecting the system to other types of pump (with different type of thread or no
thread):
The Saltwater System can also be adapted to other filter pumps with different thread or those
without a thread on the connection.
Connection to 1-1/4” (32mm) hose:
1. ConnectoneendofadaptorB(9) to the connector hose (8). Tighten securely.
2. Now,connecttheotherendofadaptorB(9) to the filter pump outlet. Tighten securely.
Connection to 1-1/2” (38mm) hose with clamp:
1. Connect the connector hose (8) to the filter pump outlet connection with a large hose
clamp. Tighten securely.
ID1-1/4”(32mm)
CONNECTION
SALTWATER SYSTEM
FILTERPUMP
8
9
LARGEHOSE
CLAMP
FILTERPUMP
ID1-1/2”(38mm)
CONNECTION
SALTWATER SYSTEM
8
