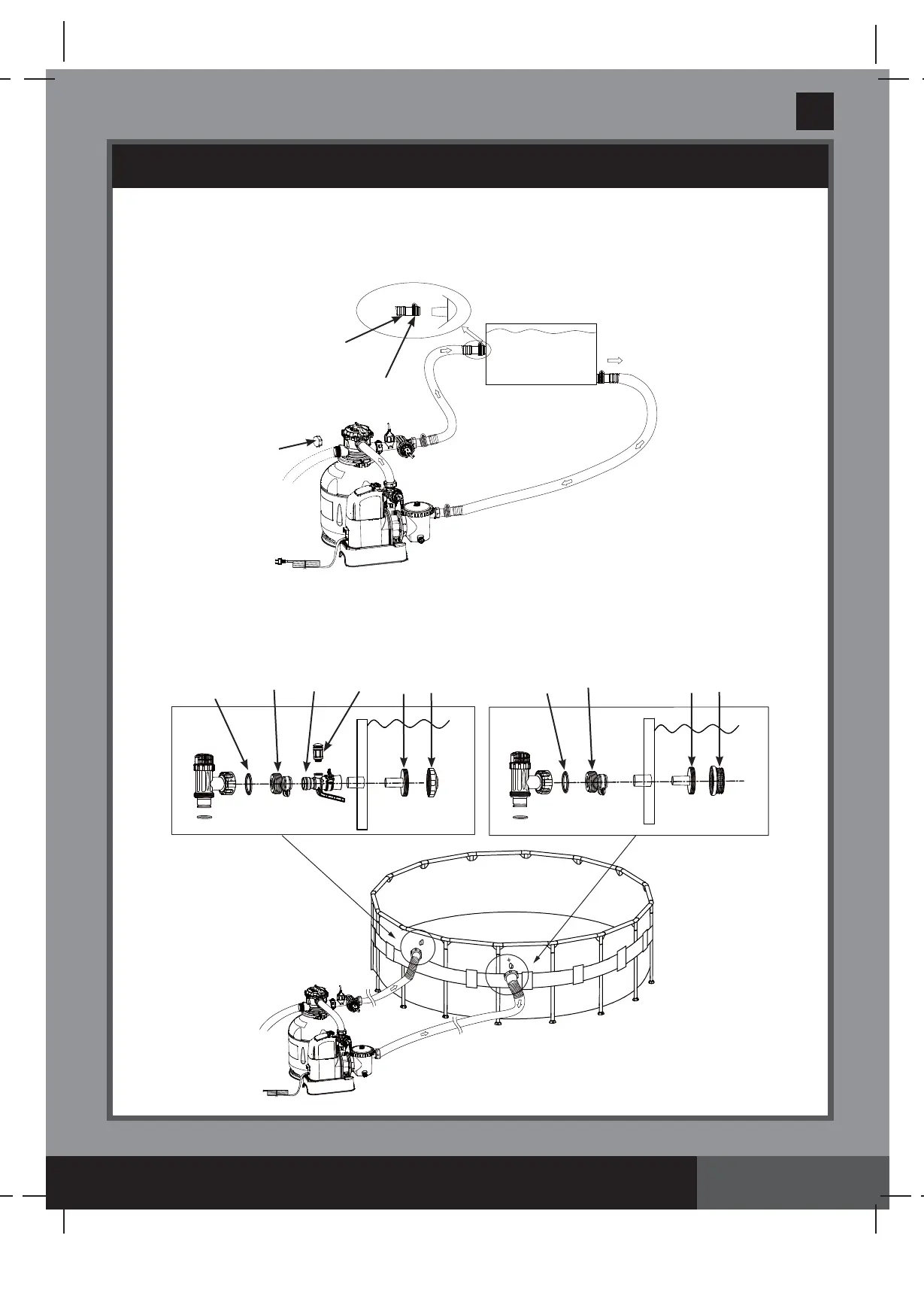

SAND FILTER PUMP HOSE CONNECTION SETUP (continued)
For INTEX pool size 16' and below:
Make sure the air jet valve
(50)
is securely tighten onto the pool inlet air adaptor
(53)
and
facing up.
For NON-INTEX pool:
1.
Connect the hose
(12)
to the pool inlet/outlet connection with a large hose clamp. Tighten
securely.
POOL
LARGE HOSE
CLAMP
12
3
30
30
35
(Adaptor B)
53
50
52
36
37
38
35
(Adaptor B)
To Next Page
