Intex ECO20220-1 Owner's Manual

165A
SAVE THESE INSTRUCTIONS
English
(165IO) 48”, 52" LADDER WITH REMOVABLE STEPS ENGLISH SIZE: 7.5” X 10.3” PANTONE 295U 05/27/2016
Page 4

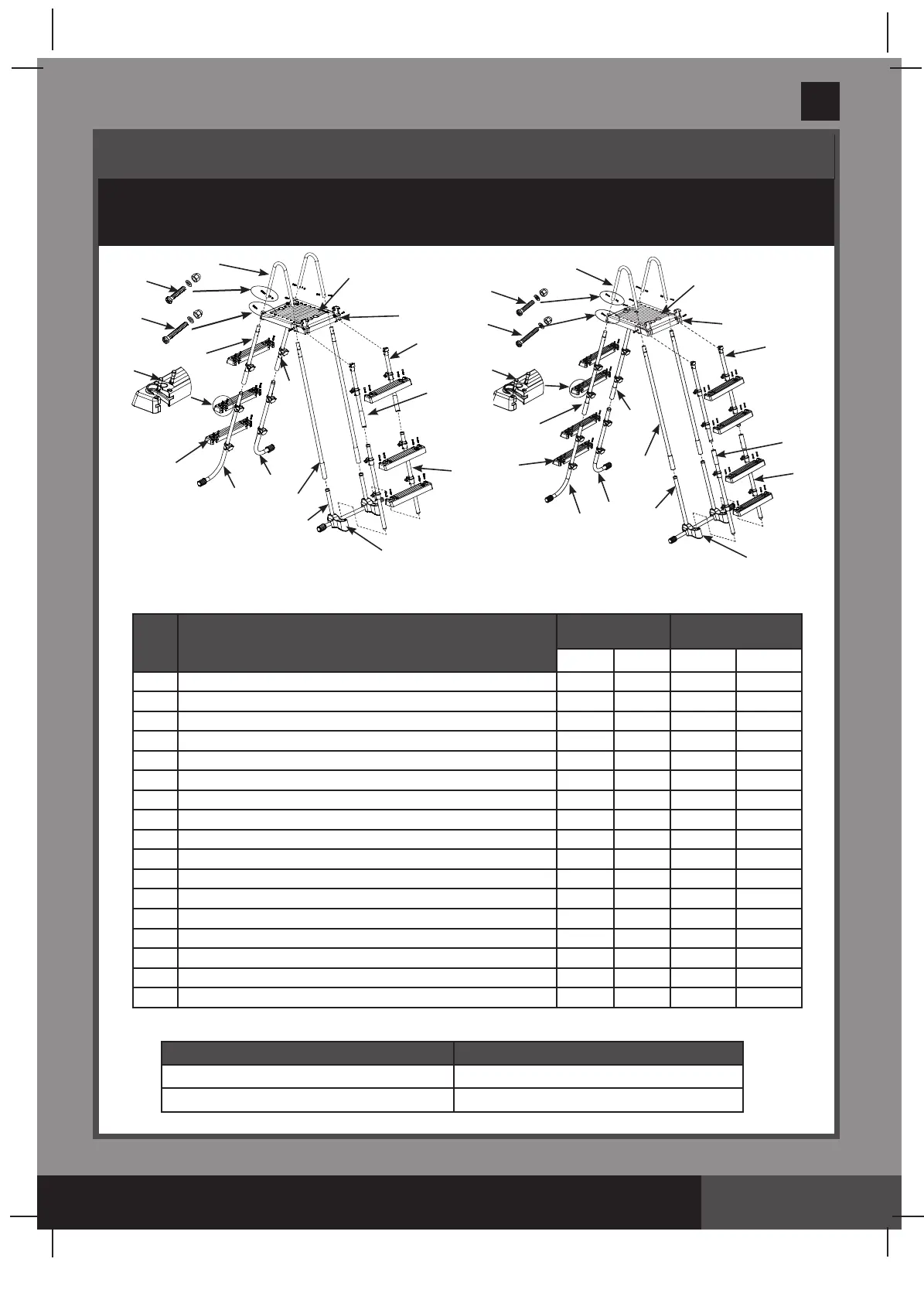

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
52in (132 cm) model
48in (122 cm) model
REF.
NO.
DESCRIPTION
LADDER SIZE &
QUANTITIES
SPARE PART
NUMBER
48in 52in 48in 52in
1 U-SHAPED TOP RAIL
2 2 12512 12512
2
TOP PLATFORM
1 1 12182 12182
3
SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)
5 5 10810 10810
4
LONG FASTENER FOR TOP PLATFORM (WITH 1 EXTRA)
5 5 10227 10227
5
STEP MOUNTING PIN (WITH 2 EXTRA)
26 34 10913 10913
6
STEP
6 8 10914 10914
7
A SIDE - UPPER SIDE LEG (MARKED “A1”)
1 1 12513A 12497A
8
A SIDE - UPPER SIDE LEG (MARKED “B1”)
1 1 12513B 12497B
9
A SIDE - LOWER J- LEG (MARKED “A1” )
1 1 12514A 12498A
10
A SIDE - LOWER J- LEG (MARKED “B1” )
1 1 12514B 12498B
11
B SIDE - UPPER SIDE LEG (MARKED “A2 & B2”)
2 2 12516 12520
12
B SIDE - LOWER SIDE LEG (MARKED “A2)
1 1 12517A 12521A
13
B SIDE - LOWER SIDE LEG (MARKED “B2”) 1 1 12517B 12521B
14
C SIDE - UPPER SIDE LEG (MARKED “C”)
2 2 12518 12522
15
C SIDE - LOWER U-SHAPED SIDE LEG (MARKED “C”)
1 1 12519 12523
16
SUPPORT BASE
2 2 11356 11356
17
CLASP
2 2 12190 12190
This ladder is designed and manufactured for Intex pool wall height:
Item # Pool Wall Height
28073 48in (122cm)
28074 52in (132cm)
2
1
3
4
5
9
7
8
6
10
13
11
14
15
16
17
12
2
1
3
4
5
9
7
8
6
11
15
12
14
16
17
10
13
