Intex ECO20220-1 User Manual

(97IO) DELUXE MAINTENANCE KIT ENGLISH SIZE: 4.875” X 7.25” PANTONE 295U 05/26/2018
97A
S AVE THESE INSTRUCTIONS
English
Page 8

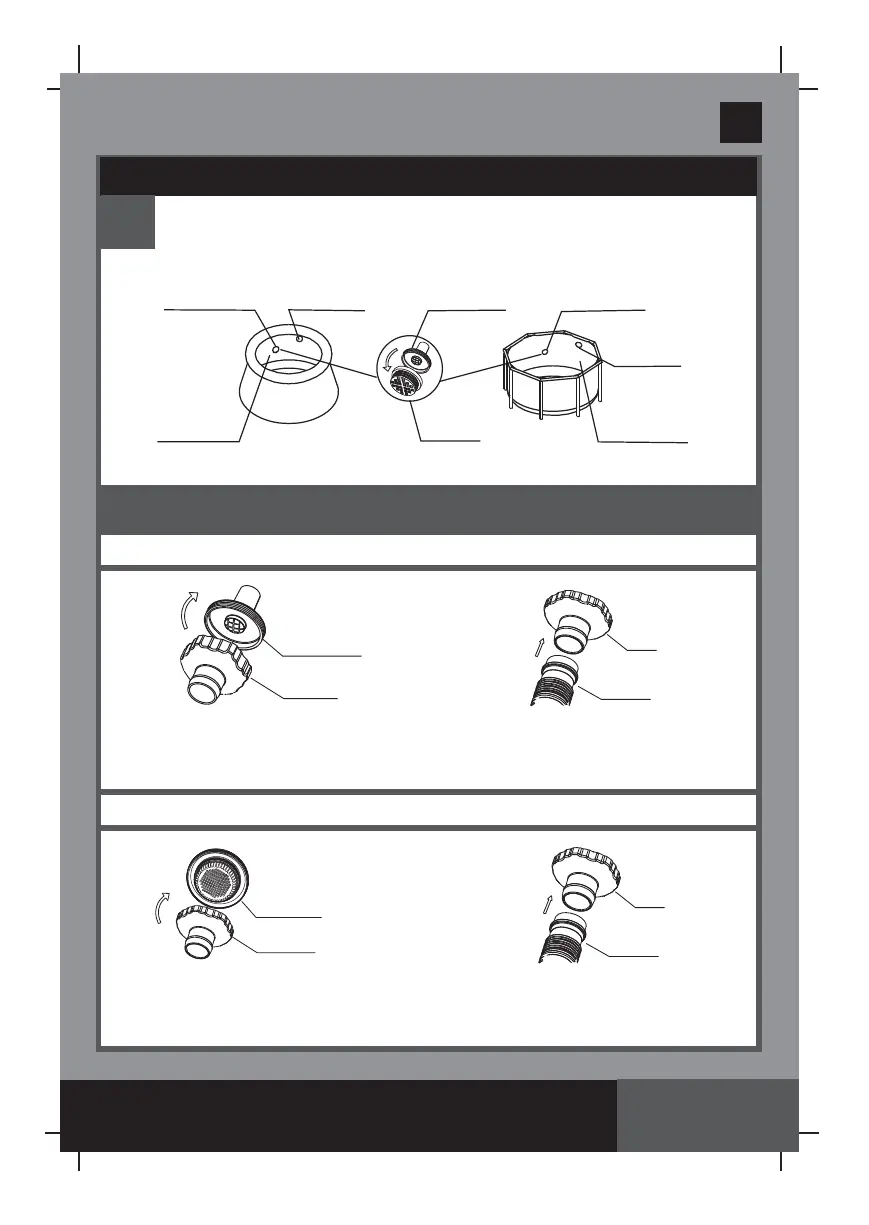

SETUP INSTRUCTIONS
1
For pool size 16' (488 cm) and below:
Unscrew the strainer grid from the threaded strainer connector (lower)
from inside of the pool.
EASY-SET
®
POOL
METAL FRAME POOL
Lower Hose
Connection
Upper Hose
Connection
Threaded Strainer
Connector
Lower Hose
Connection
Upper Hose
Connection
Inside of the
Pool Wall
Inside of the
Pool Wall
Strainer
Grid
2
Depending on the size of pool purchased.
For 16' (488 cm) and below pools with strainer
a
b
Screw the hose adaptor B
(17)
to the
threaded strainer connector, from
inside of the pool.
Connect the other end of the
skimmer hose
(16)
to the
hose adaptor B
(17)
.
a
b
For 18' (549 cm) and above pools with large strainer
Screw the hose adaptor B
(17)
to the
threaded strainer connector, from
inside of the pool.
Connect the other end of the
skimmer hose
(16)
to the
hose adaptor B
(17)
.
17
Threaded
Strainer
Connector
17
16
17
Threaded
Strainer
Connector
17
16
