SETUP INSTRUCTIONS (continued)
WARNING
Position this product away from the pool, so as to prevent children from
climbing on it and accessing the pool.
To inspect and change the filter cartridge, disconnect line cord, unscrew the pool inlet nozzle
(10)
and strainer grid
(11)
from the strainer connectors and insert the hat-like plugs into the strainer
connectors before servicing the filter. After service, open the air release valve, remove the plugs,
allow any air to escape through the valve before tightening the valve again and replace the pool
inlet nozzle
(10)
and strainer grid
(11)
. The pump is now primed with water again and may be
turned on.
The installation instruction shall provide information on requirements specified for the electrical
installation and shall include reference to national wiring rules.

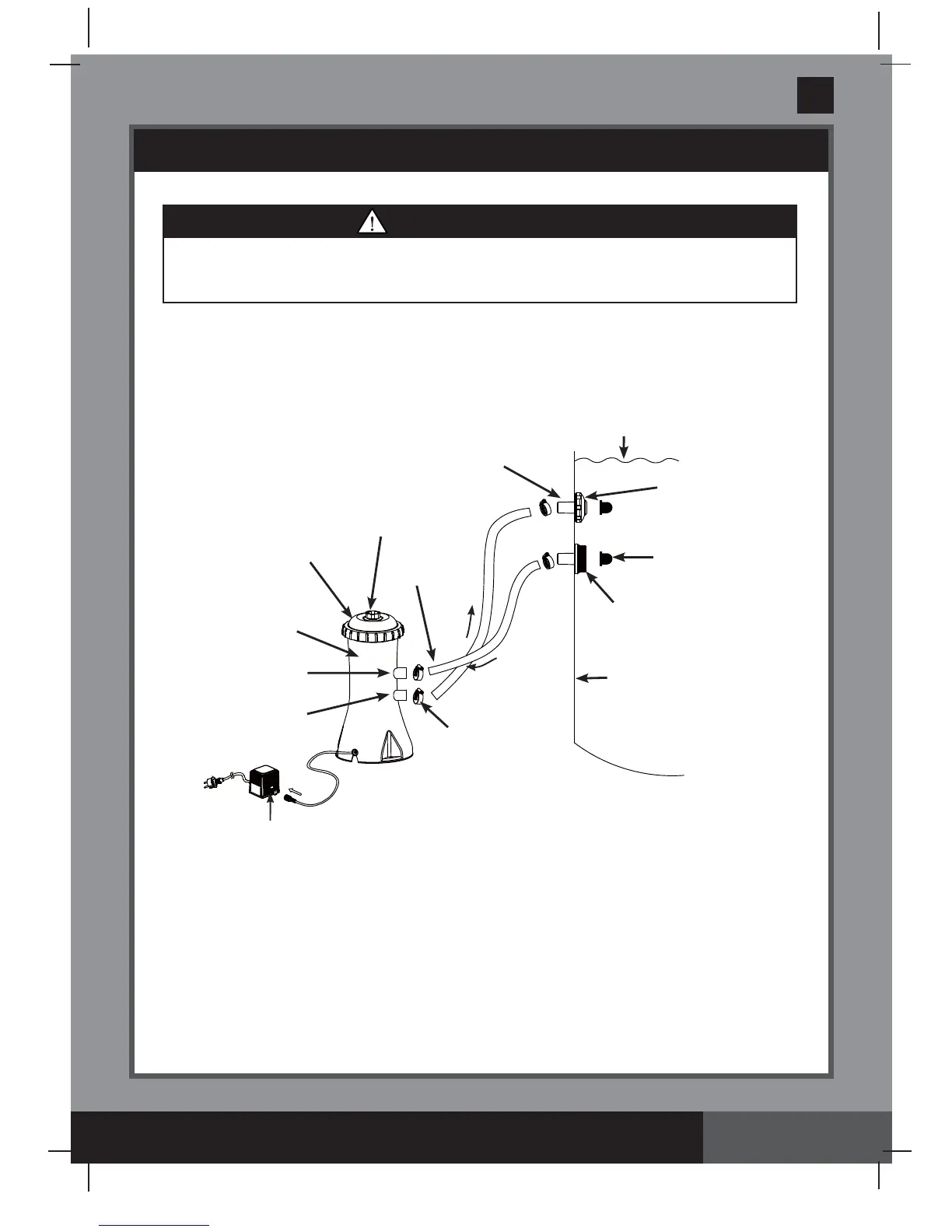

(ILLUSTRATION NOT TO SCALE)
WATER LEVEL
POOL INLET
NOZZLE
(REMOVE)
HOSE CLAMP
INSIDE OF POOL
STRAINER GRID
(REMOVE)
PLUG
UPPER PROTRUDING
HOSE CONNECTION
W
A
T
E
R
D
I
R
E
C
T
I
O
N
W
A
T
E
R
D
I
R
E
C
T
I
O
N
UPPER PUMP
CONNECTION
LOWER PUMP
CONNECTION
THREADED
COVER
FILTER
CARTRIDGE
INSIDE
AIR RELEASE
VALVE
HOSE
TRANSFORMER
