SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/28/2014
English
Page 7
There are three mounting holes located at the bottom of the filter pump base. These holes are
provided because various country’s regulations, especially in the European community, require
the filter pump to be secured to the ground or to a base in a permanent upright position.
These three holes form a triangle pattern and are 145mm from each other. The holes are slotted
with a 7mm width.

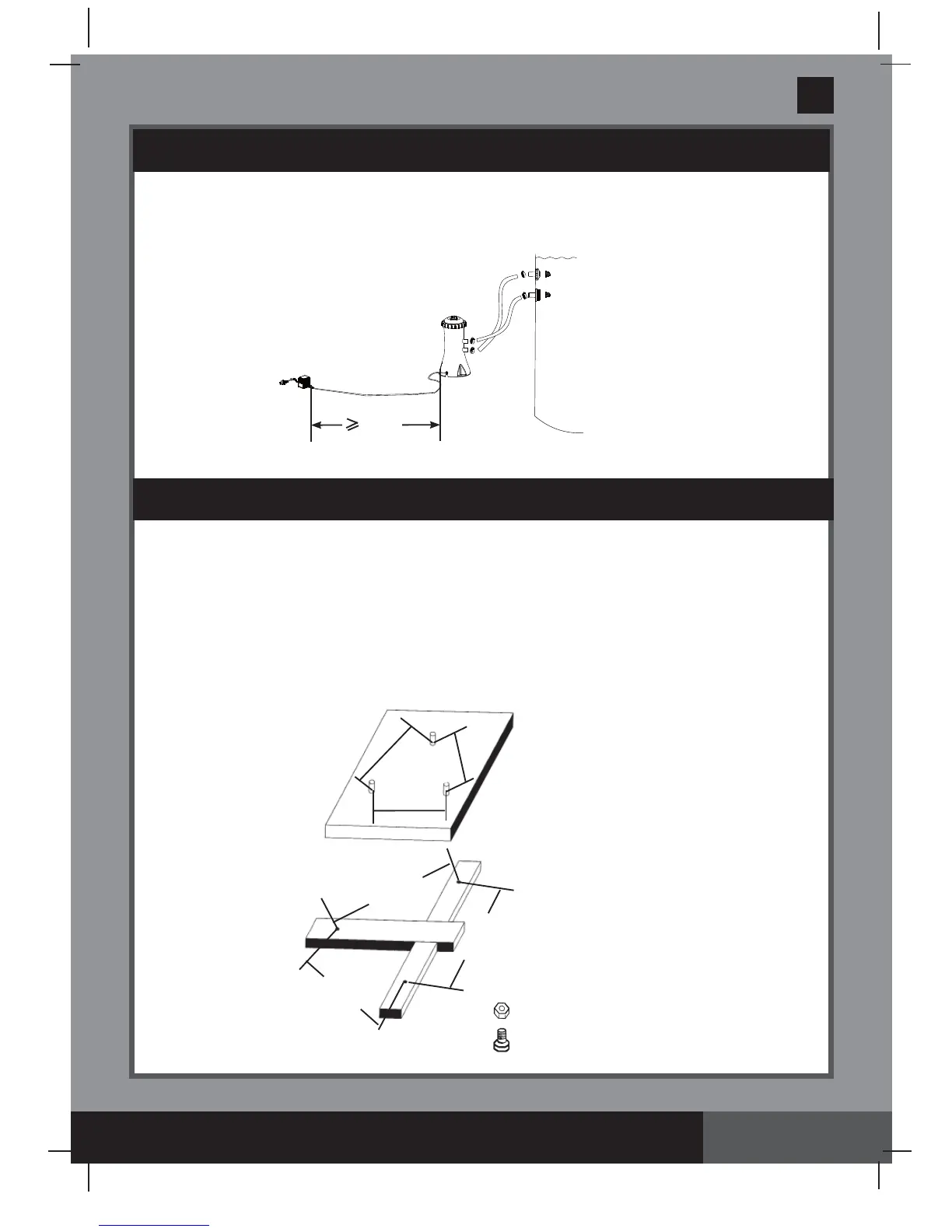

The filter pump can be mounted on a cement base or onto a wooden structure to prevent
accidental falling over. Total assembly must exceed 18kg. The drawings on the following show
two possible ways of upright mounting.
SETTING UP FILTER PUMP
For your own personal safety, it is very important that you place your transformer more than
3.5m away from your pump.
FILTER PUMP STATIONARY MOUNTING OPTION
145mm
145mm
145mm
145mm
145mm
145mm
3.5 m
-- (3) x M6 HEXAGON LOCK-NUTS
-- (3) x M6 HEXAGON HEAD BOLTS
