(106) MODEL 638R FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/23/2011
English
SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
SETUP INSTRUCTIONS (continued)
WARNING
Position this product away from the pool, so as to prevent children from
c
limbing on it and accessing the pool.
To inspect and change the filter cartridge, disconnect line cord, unscrew the pool
inlet nozzle (10) and strainer grid (11) from the strainer connectors and insert the
hat-like plugs into the strainer connectors before servicing the filter. After service,
open the air release valve, remove the plugs, allow any air to escape through the
valve before tightening the valve again and replace the pool inlet nozzle (10) and
strainer grid (11). The pump is now primed with water again and may be turned on.

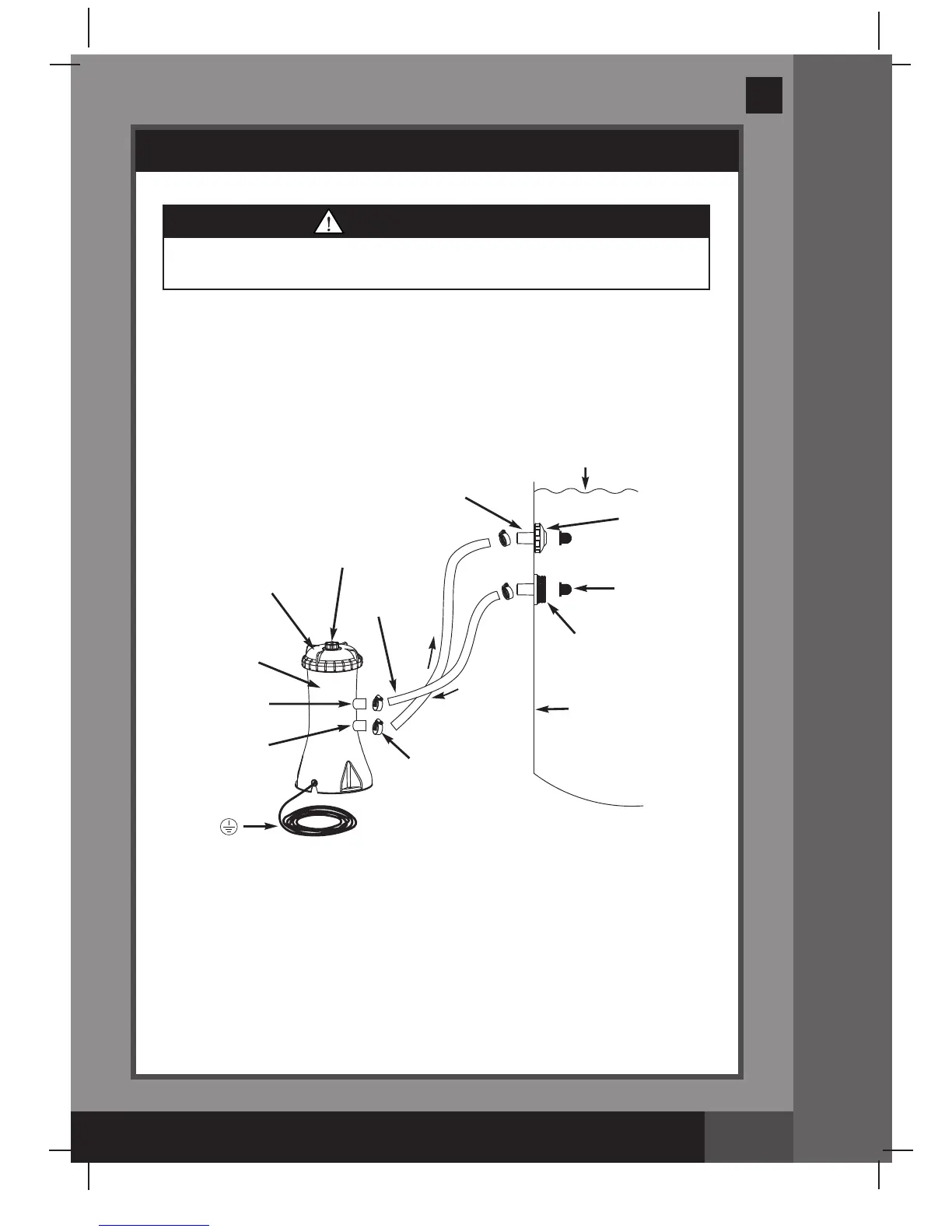

(ILLUSTRATION NOT TO SCALE)
WATER LEVEL
POOL INLET
NOZZLE
(REMOVE)
HOSE CLAMP
INSIDE OF POOL
STRAINER GRID
(REMOVE)
PLUG
UPPER PROTRUDING
HOSE CONNECTION
W
A
T
E
R
D
I
R
E
C
T
I
O
N
W
A
T
E
R
D
I
R
E
C
T
I
O
N
UPPER PUMP
CONNECTION
LOWER PUMP
CONNECTION
THREADED
COVER
FILTER
CARTRIDGE
INSIDE
AIR RELEASE
VALVE
HOSE
The installation instruction shall provide information on requirements specified for
the electrical installation and shall include reference to national wiring rules.
