106A
SAVE THESE INSTRUCTIONS
Page 8
(106) MODEL 638R FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 06/23/2011
English
SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
FILTER PUMP STATIONARY MOUNTING OPTION
-- (3) x M6 HEXAGON HEAD BOLTS
-- (3) x M6 HEXAGON LOCK-NUTS
1
4
5
mm
145mm
1
45
m
m
145m
m
14
5
mm
145
m
m

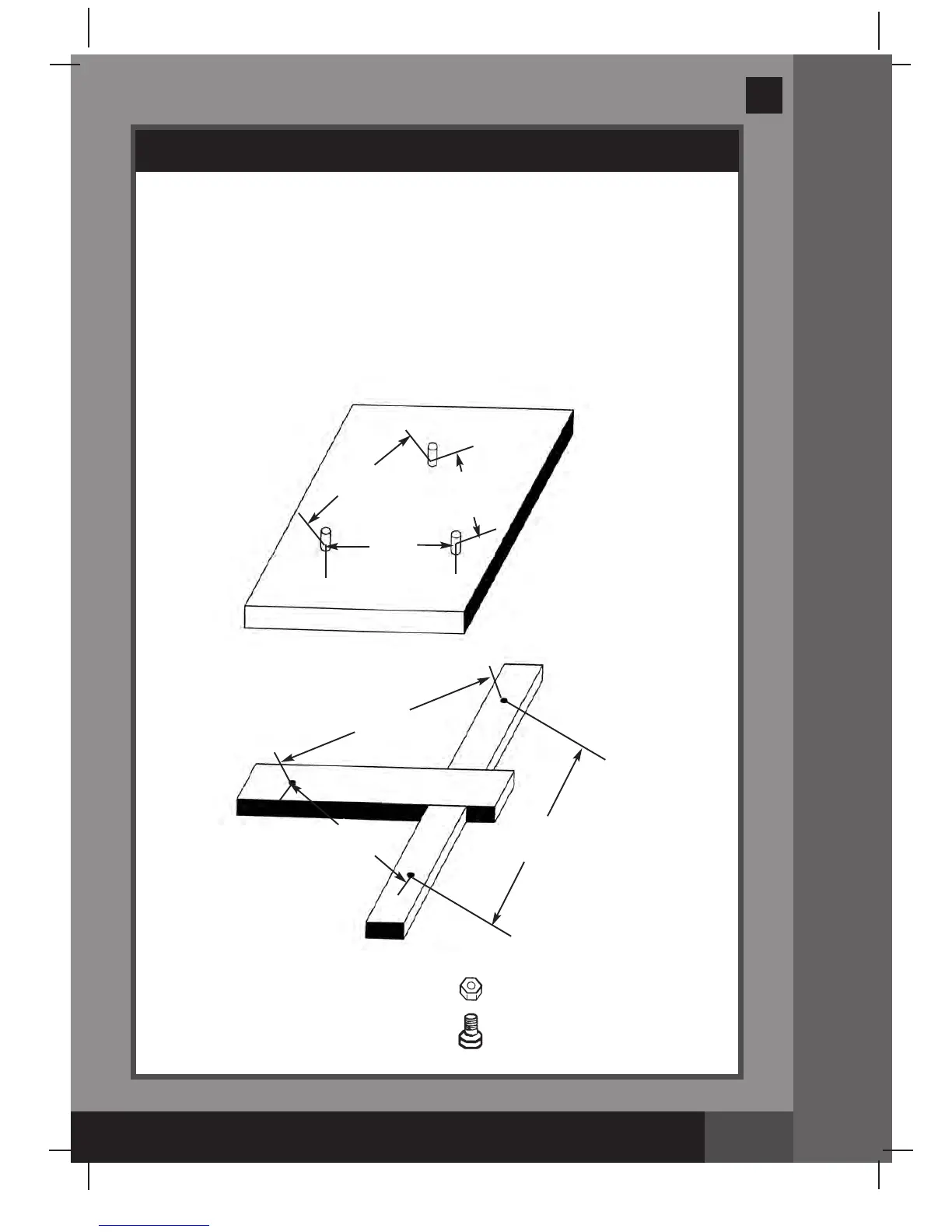

There are three mounting holes located at the bottom of the filterpump base. These
holes are provided because various country’s regulations, especially in the
European community, require the filterpump to be secured to the ground or to a
base in a permanent upright position.
These three holes form a triangle pattern and are 145mm from each other. The
holes are slotted with a 7mm width.
The filterpump can be mounted on a cement base or onto a wooden structure to
prevent accidental falling over. Total assembly must exceed 18kg. The drawings on
the following show two possible ways of upright mounting.
