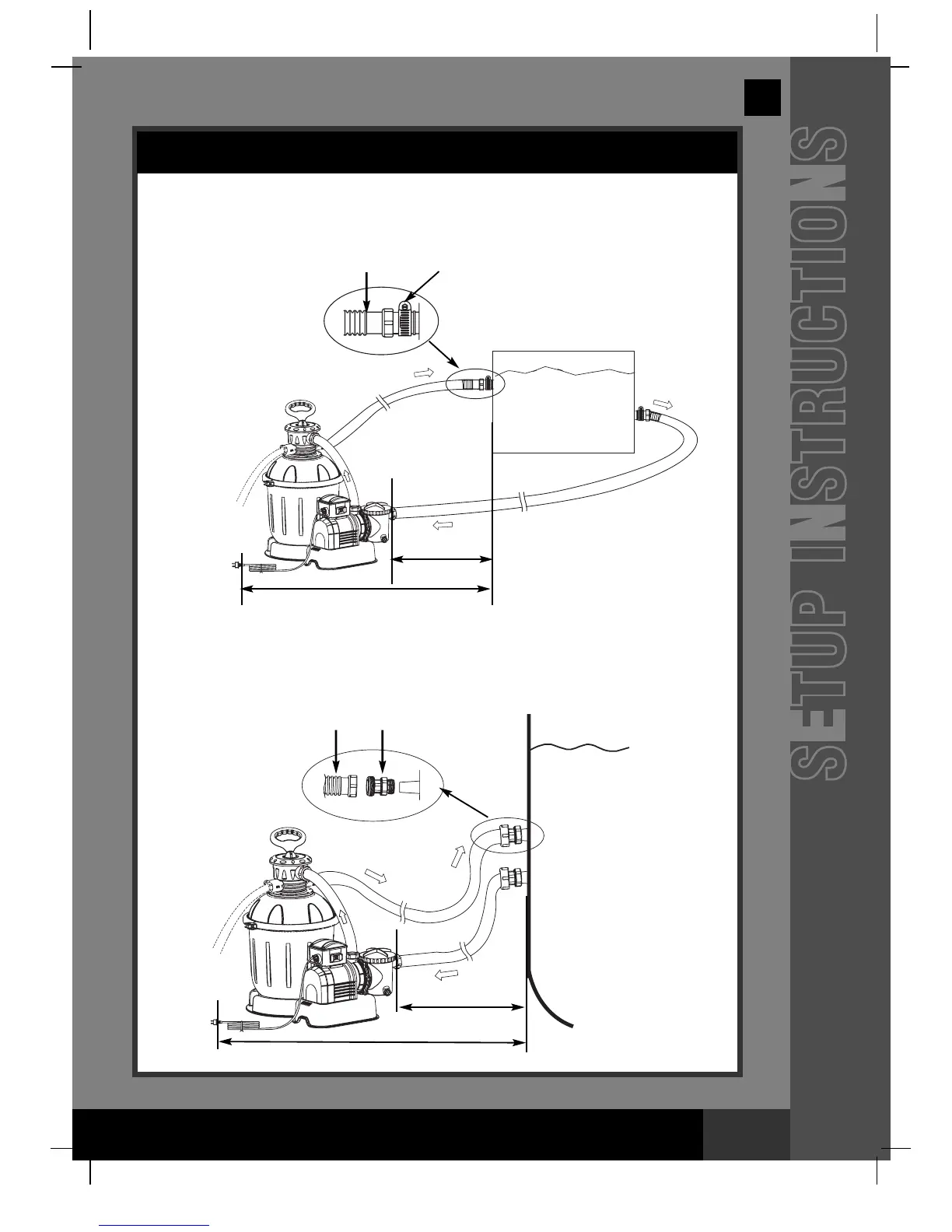

SAND FILTER PUMP HOSE CONNECTION SETUP (continued)
SETUP INSTRUCTIONS
For INTEX pool size 16' and below:
1. Connect one end of adaptor B (27) to the hose (10). Tighten securely.
2. Now, connect the other end of adaptor B (27) to the pool outlet/inlet. Tighten
securely.
27
For NON-INTEX pool:
Connect the hose (10) to the pool inlet/outlet connection with a large hose clamp.
Tighten securely.
POOL
LARGE HOSE
CLAMP
POOL
10
>3.5M
>2M
>3.5M
>2M
10
