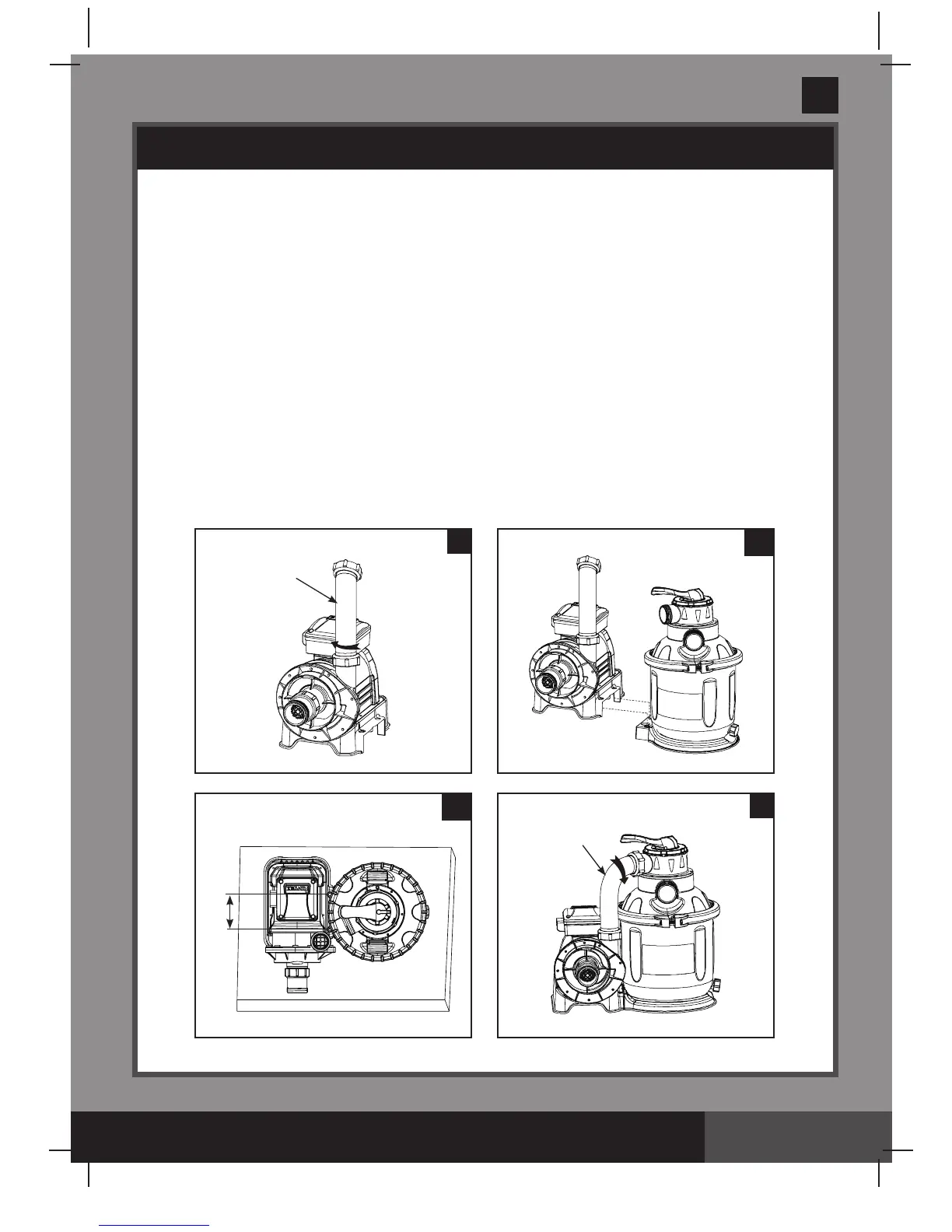

SETUP INSTRUCTIONS (continued)
Motor installation:
1. Place an L-shape o-ring (18) on the pump motor outlet. In a clockwise motion connect the
sand filter interconnecting hose (13) to the pump motor outlet (see drawing 20).
2. Connect the pump motor unit to the tank support base (see drawing 21.1). NOTE: Ensure
the leaf trap water inlet hose connection is facing towards the pool.
IMPORTANT: Some countries, especially in the European community, require the
product to be secured to the ground or to a base in a permanent upright position.
Check your local authorities to determine if there is a regulation in your area
regarding above-the-ground swimming pool filter-pumps. If yes, then the product can
be mounted to a platform using the two holes located in the base. See drawing 21.2.
The product can be mounted on a cement base or onto a wooden platform to prevent
accidental falling over.
 • Themountingholesare6.4mmindiameterandspaced100mmapart.
 • Usetwoboltsandlocknutswithamaximumof6.4mmindiameter.
3. Place an L-shape o-ring (11) on the 6-way valve inlet connection. In a clockwise motion
connect the sand filter interconnecting hose (13) to the 6-way valve inlet connection (see
drawing 22).
21.1
22
13
20
13
21.2
100 mm
